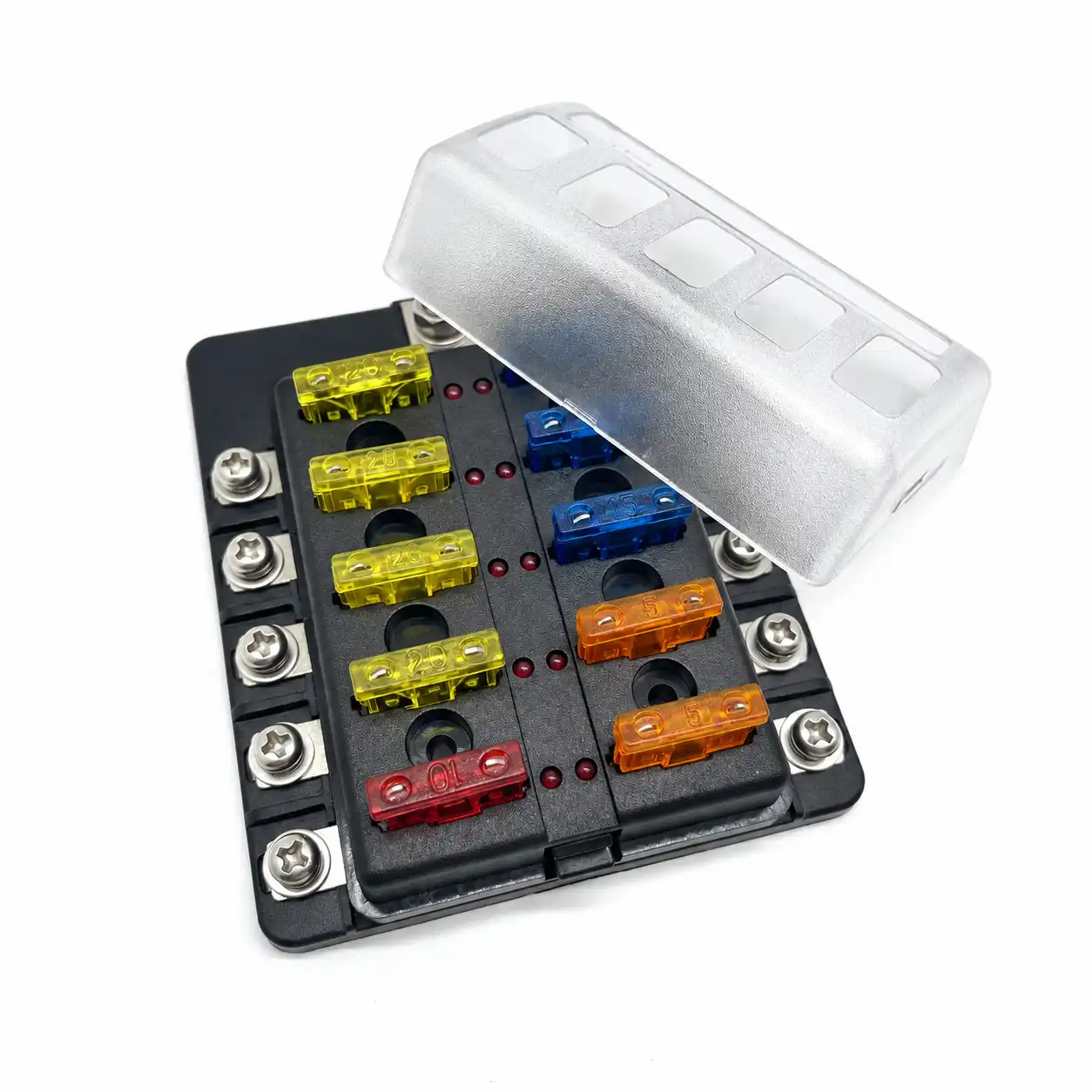

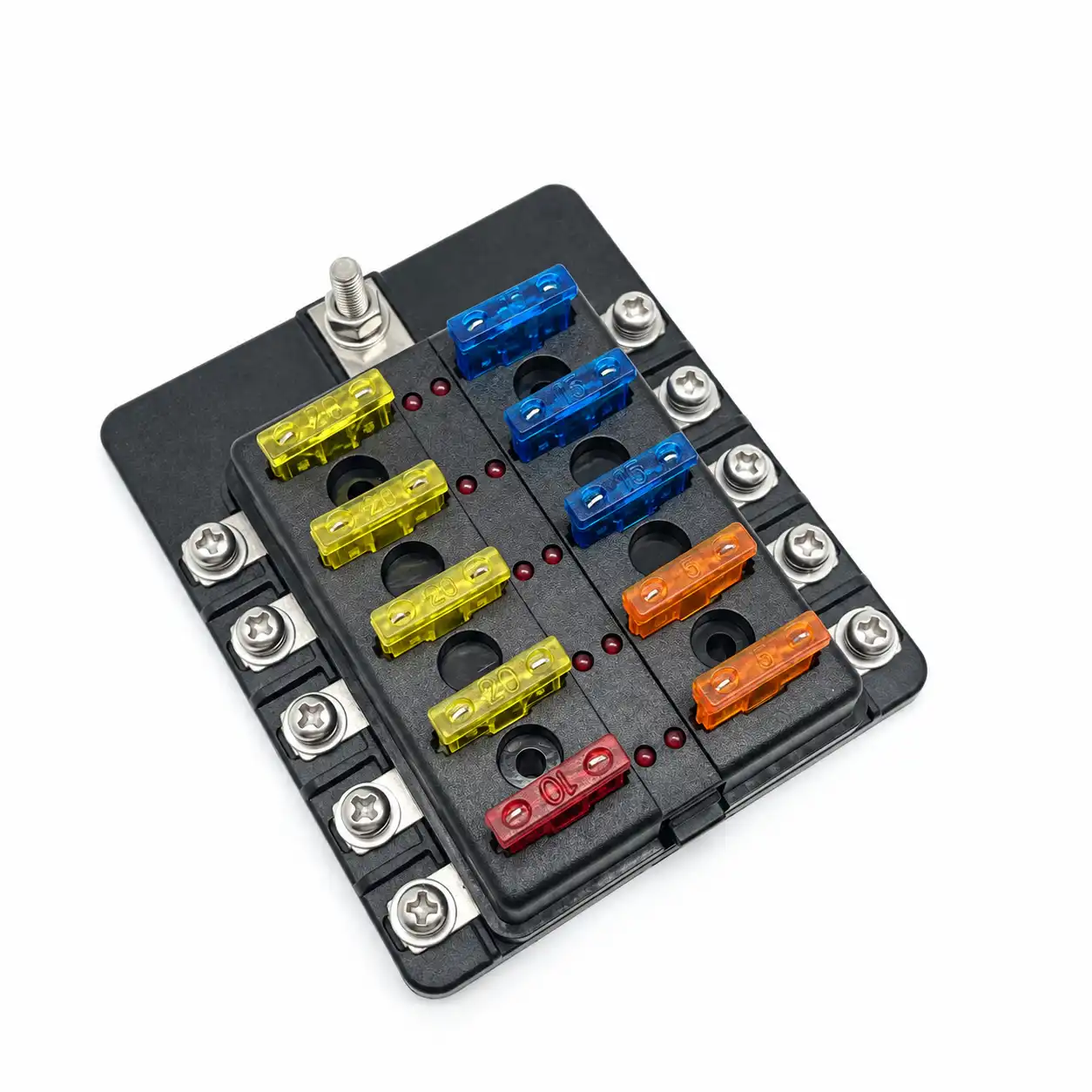

A 10 circuit blade fuse block provides ten individual fuse positions for organized multi-circuit DC circuit protection. Designed for standard ATO/ATC blade fuses, it supports systems up to 32V DC with a maximum current of 30A per circuit. The fuse block measures 100 × 85 × 35 mm and features a plastic housing, plastic protective cover and stainless steel screws.
B2B inquiries are normally answered within one business day.
A 10 circuit blade fuse block provides ten individual fuse positions for centralized low-voltage DC circuit protection. Designed for standard ATO/ATC blade fuses, it allows multiple electrical loads to be protected separately while keeping the fuse positions organized within one compact fuse block.
The fuse block supports systems up to 32V DC with a 30A maximum current per circuit. Its overall size is 100 × 85 × 35 mm, and the unit features a plastic housing, plastic protective cover and stainless steel screws.
| Item | Specification |
|---|---|
| Model | CZY-FB07 |
| Product Type | 10 Circuit Blade Fuse Block |
| Number of Circuits | 10 |
| Compatible Fuse Type | ATO/ATC Standard Blade Fuse |
| Maximum Voltage | 32V DC |
| Maximum Current per Circuit | 30A |
| Size | 100 × 85 × 35 mm |
| Housing Material | Plastic |
| Cover Material | Plastic |
| Screw Material | Stainless Steel |
A 10 circuit blade fuse block is suitable for low-voltage DC systems where multiple electrical loads require individual fuse protection within one centralized distribution point.
Each fuse position protects an individual electrical branch using a standard ATO/ATC blade fuse. This allows multiple accessories or electrical loads to use separate fuse ratings according to their own wiring and current requirements.
A 10 circuit blade fuse block is useful when a system needs more protected branches than a four-, six- or eight-circuit fuse block can provide.
The 30A maximum per circuit is the maximum current limit of each individual fuse position. It does not mean that every circuit should use a 30A fuse.
The actual fuse rating should be selected according to the connected load, conductor size and circuit protection requirements of each branch circuit. Different fuse positions may therefore use different fuse ratings.
Individual inline fuse holders can be practical for a small number of circuits, but using many separate holders can make wiring more difficult to organize, inspect and maintain.
A 10 circuit blade fuse block groups ten fuse positions in one location, helping simplify multi-circuit electrical installations and making individual fuses easier to identify.
A ten-circuit configuration is useful for electrical systems with multiple lighting, accessory and auxiliary circuits that require separate fuse protection.
It can provide additional circuit capacity compared with smaller four-, six- or eight-way fuse blocks while maintaining a compact centralized layout.

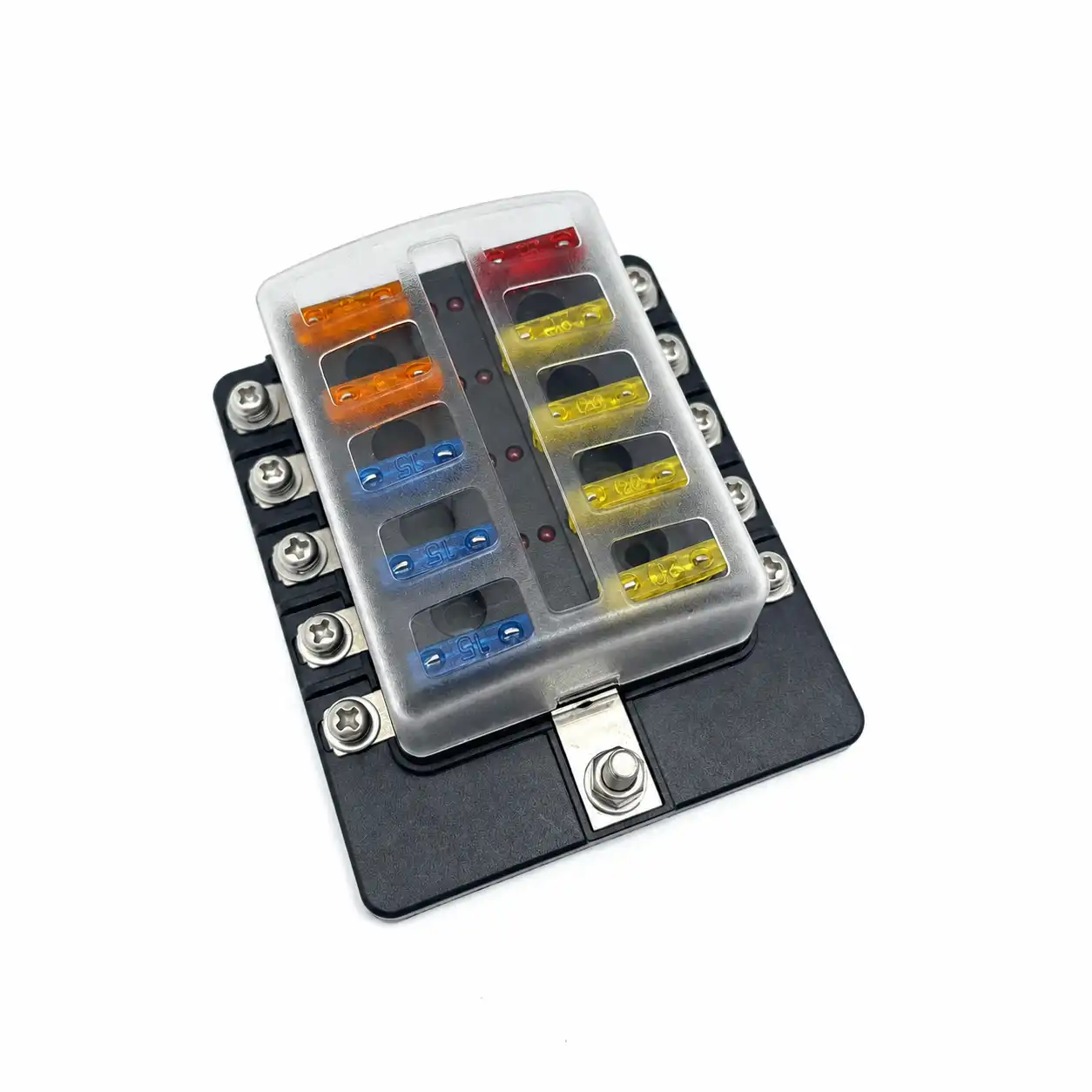

The plastic protective cover provides a physical barrier over the fuse positions and helps keep the fuse area organized within the enclosure.
The presence of a cover does not by itself indicate an IP waterproof rating unless relevant test data is available.
It is designed for standard ATO/ATC blade fuses.
No. The 30A value is the maximum current rating per circuit position. The actual fuse should be selected according to the connected load, wiring and circuit protection requirements.
Yes. Different branch circuits can use different fuse ratings when required by their individual loads and wiring.
Yes. Both 12V and 24V DC systems are within the confirmed 32V DC maximum voltage.
A ten-circuit fuse block provides additional branch capacity for systems with multiple accessories while keeping the fuse positions centralized and easier to organize.
