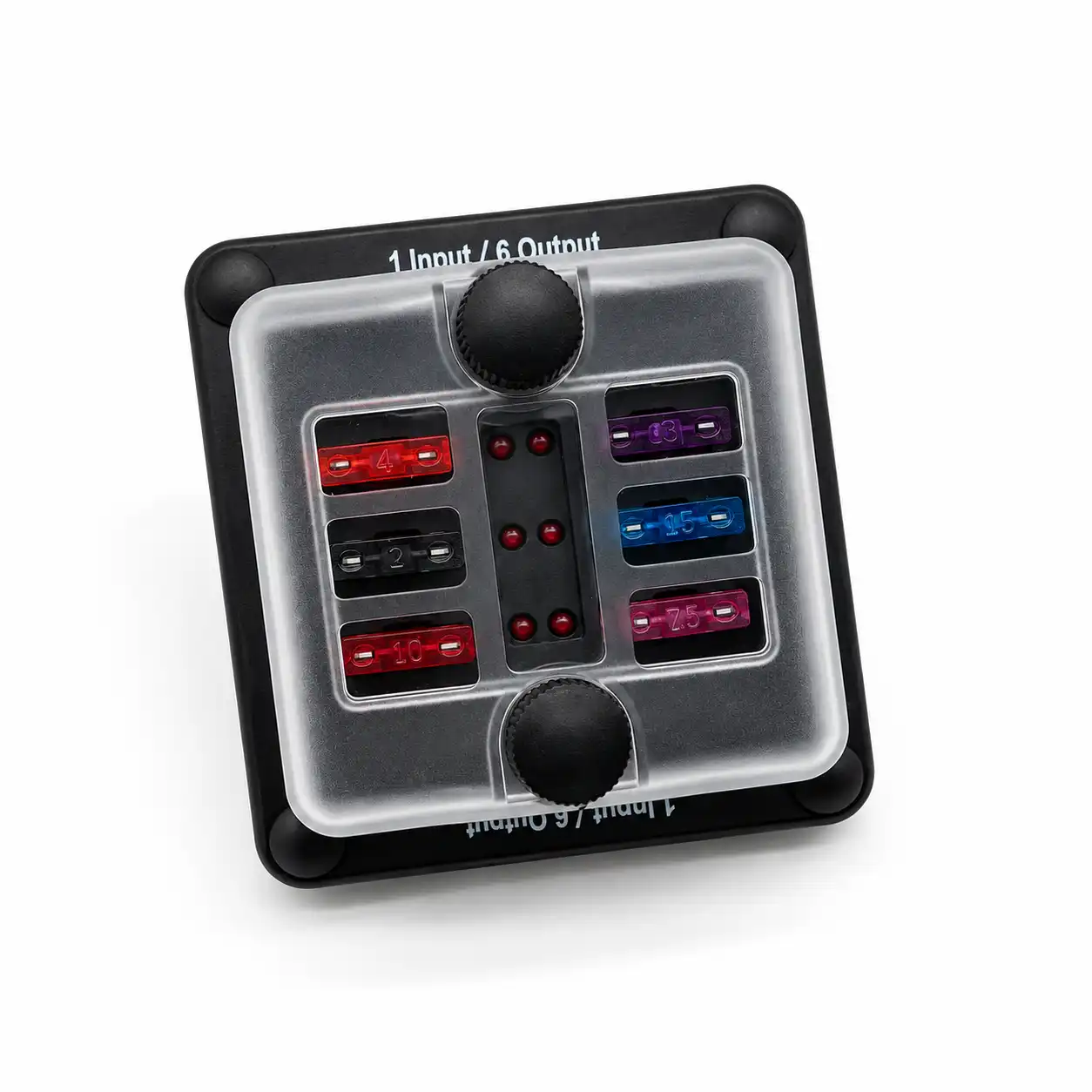

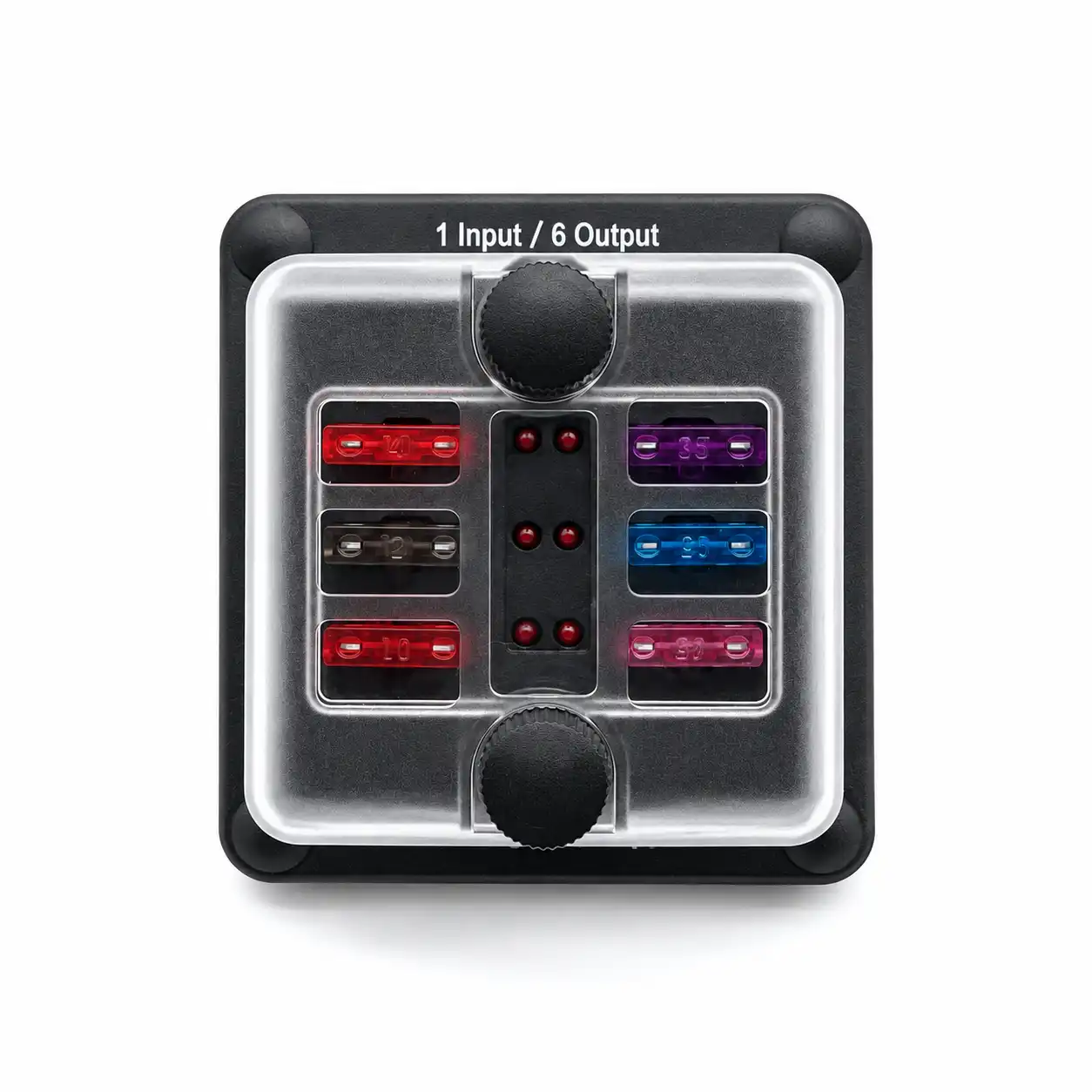

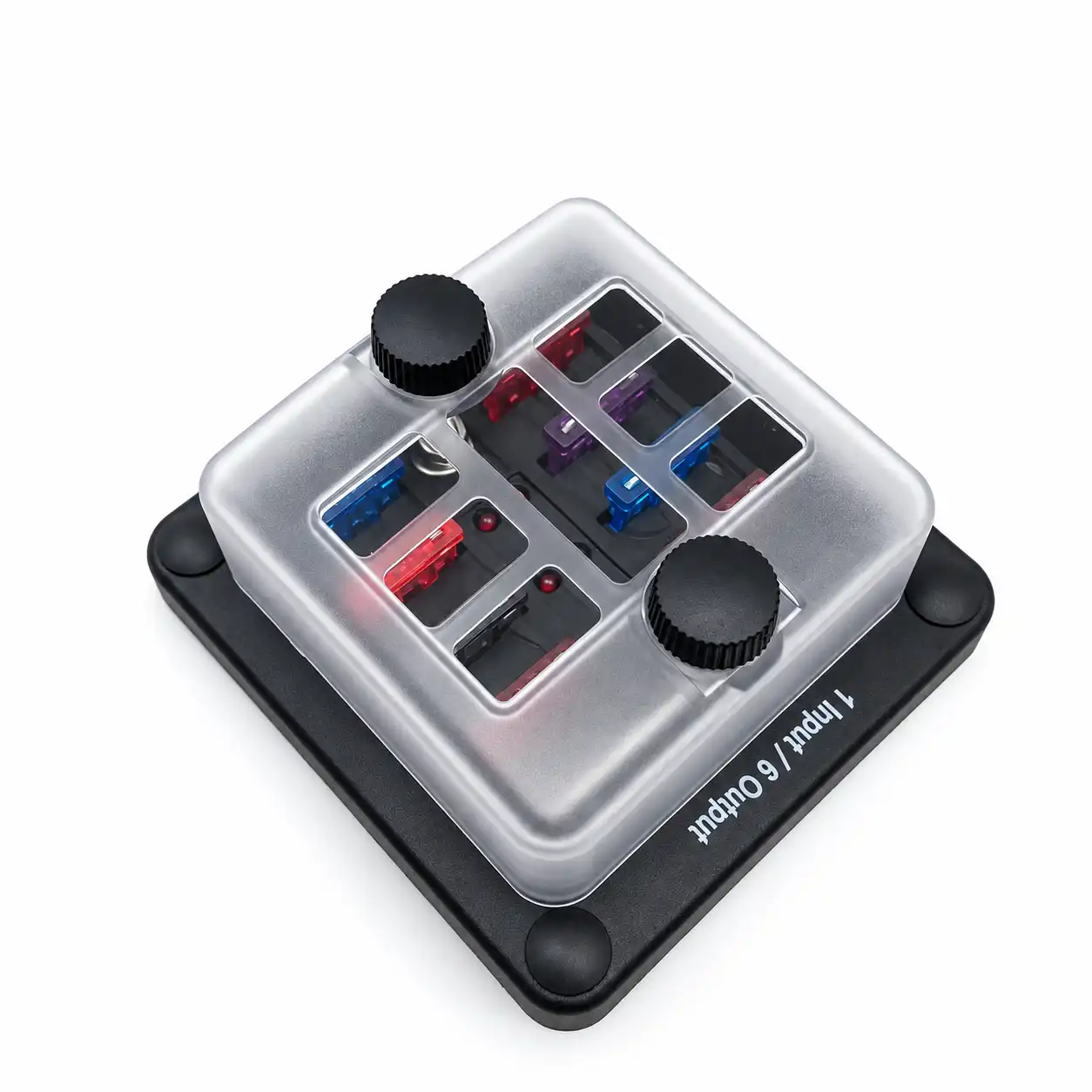

This 6 circuit fuse box with LED provides six individually fused outputs from one common DC power input. Designed for standard ATO/ATC blade fuses, it supports up to 32V DC with a maximum current of 30A per circuit and 100A per block. Built-in LED warning indicators help identify a blown fuse quickly during inspection and troubleshooting.
B2B inquiries are normally answered within one business day.
A 6 circuit fuse box with LED provides centralized power distribution and individual fuse protection for six low-voltage DC circuits. One common power input supplies six separately fused outputs, allowing multiple accessories to be protected and organized within one compact fuse box.
Designed for standard ATO/ATC blade fuses, the fuse box supports systems up to 32V DC, with a 30A maximum current per circuit and a 100A maximum current per block. Integrated LED warning indicators help identify a blown fuse quickly, making inspection and fault diagnosis easier.
| Item | Specification |
|---|---|
| Model | CZY-FB05 |
| Product Type | 6 Circuit Blade Fuse Box with LED Indicator |
| Number of Circuits | 6 |
| Compatible Fuse Type | ATO/ATC Standard Blade Fuse |
| Maximum Voltage | 32V DC |
| Maximum Current per Circuit | 30A |
| Maximum Current per Block | 100A |
| LED Indicator | Yes |
| Housing Material | Plastic |
| Cover Material | Plastic |
| Screw Material | Stainless Steel |
| Power Distribution | Single Common Input / 6 Fused Outputs |
A 6 circuit fuse box with LED is suitable for low-voltage DC systems where several accessories need separate fuse protection from one centralized power distribution point.
Each circuit includes an LED warning indicator to help identify a blown fuse during troubleshooting. When a circuit fault causes the corresponding fuse to open, the indicator helps the user locate the affected branch more quickly instead of checking every fuse individually.
This feature is especially useful in multi-circuit systems where several accessories are connected to the same fuse panel.
The common DC input distributes power to six separate fuse positions. Each branch passes through its own ATO/ATC blade fuse before supplying the connected electrical load.
This 6 circuit fuse box with LED therefore combines branch protection, centralized distribution and visual fuse-status indication in one compact assembly.
The 30A maximum per circuit is the maximum current limit of each individual circuit position. It does not mean that every circuit should use a 30A fuse.
The actual fuse rating should be selected according to the connected load, conductor size and protection requirements of each branch circuit.
The complete fuse box must also remain within its 100A maximum block rating. Six circuits rated up to 30A individually should not be interpreted as a 180A total capacity.
A conventional fuse box provides branch circuit protection but may require each fuse to be checked individually during fault diagnosis.
A 6 circuit fuse box with LED adds visual fault indication, helping identify the affected fuse position more quickly when a fuse opens.
It is designed for standard ATO/ATC blade fuses.
The LED warning indicator helps identify the circuit associated with a blown fuse, making inspection and troubleshooting faster.
The fuse box supports up to 30A per circuit, but the actual fuse rating should be selected according to the connected load, wiring and protection requirements.
No. The complete fuse box has a maximum block rating of 100A.
Yes. Both 12V and 24V DC systems are within the confirmed 32V DC maximum voltage, provided the electrical design remains within the applicable current limits.
