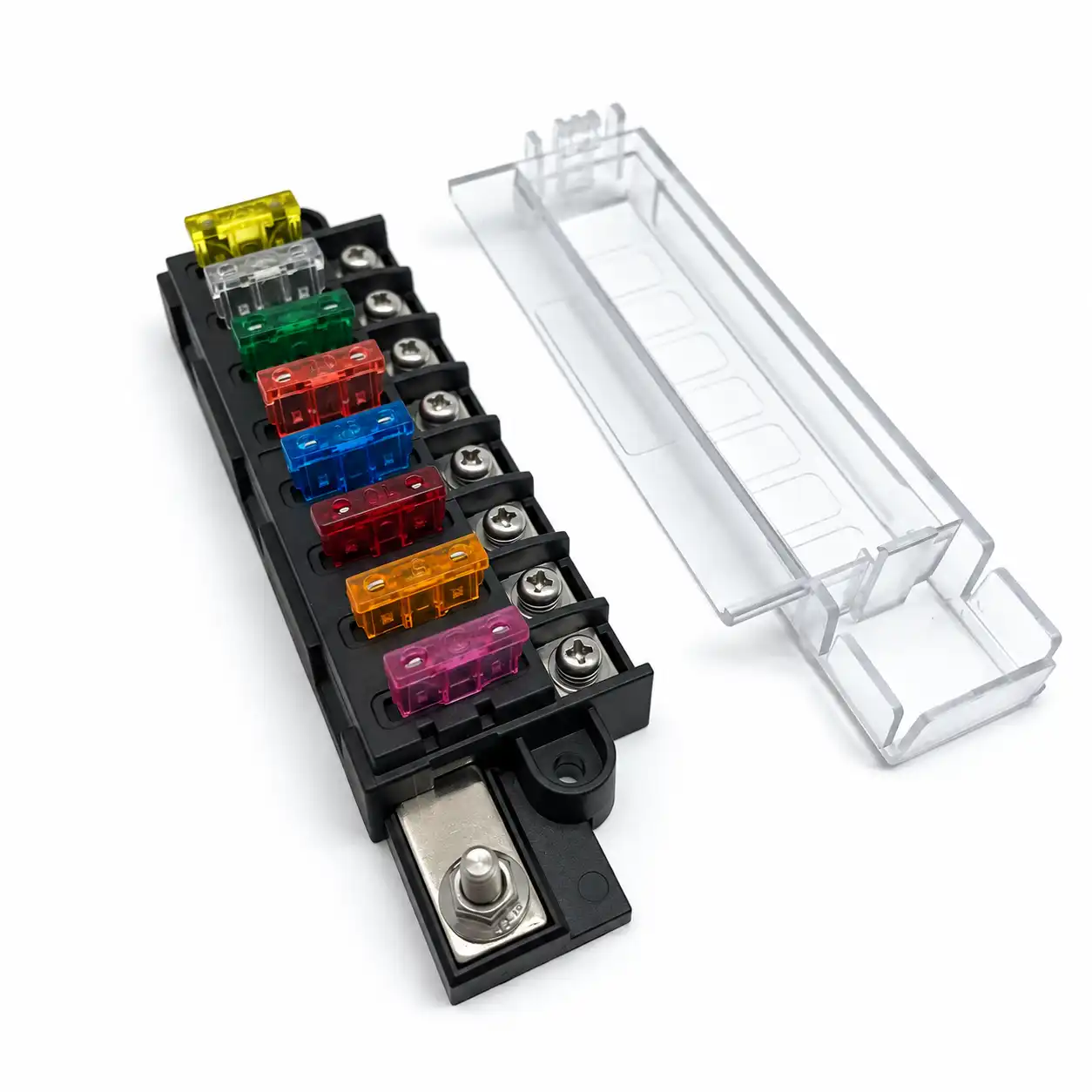

An 8 circuit blade fuse block provides centralized power distribution and individual fuse protection for eight low-voltage DC circuits. Designed for standard ATO/ATC blade fuses, it supports systems up to 32V DC with a maximum current of 100A per block and 30A per circuit. The unit features a plastic housing, plastic protective cover and stainless steel screws.
B2B inquiries are normally answered within one business day.
An 8 circuit blade fuse block provides centralized power distribution and individual fuse protection for eight low-voltage DC circuits. One common power input supplies eight separately fused outputs, allowing multiple accessories or electrical loads to be organized within one compact distribution point.
Designed for standard ATO/ATC blade fuses, the fuse block supports systems up to 32V DC, with a 100A maximum current per block and a 30A maximum current per circuit. It features a plastic housing, plastic protective cover and stainless steel screws.
| Item | Specification |
|---|---|
| Model | CZY-FB06 |
| Product Type | 8 Circuit Blade Fuse Block |
| Number of Circuits | 8 |
| Compatible Fuse Type | ATO/ATC Standard Blade Fuse |
| Maximum Voltage | 32V DC |
| Maximum Current per Block | 100A |
| Maximum Current per Circuit | 30A |
| Housing Material | Plastic |
| Cover Material | Plastic |
| Screw Material | Stainless Steel |
| Power Distribution | Common Input / 8 Fused Outputs |
An 8 circuit blade fuse block is suitable for low-voltage DC systems where multiple electrical loads need separate fuse protection from one centralized power source.

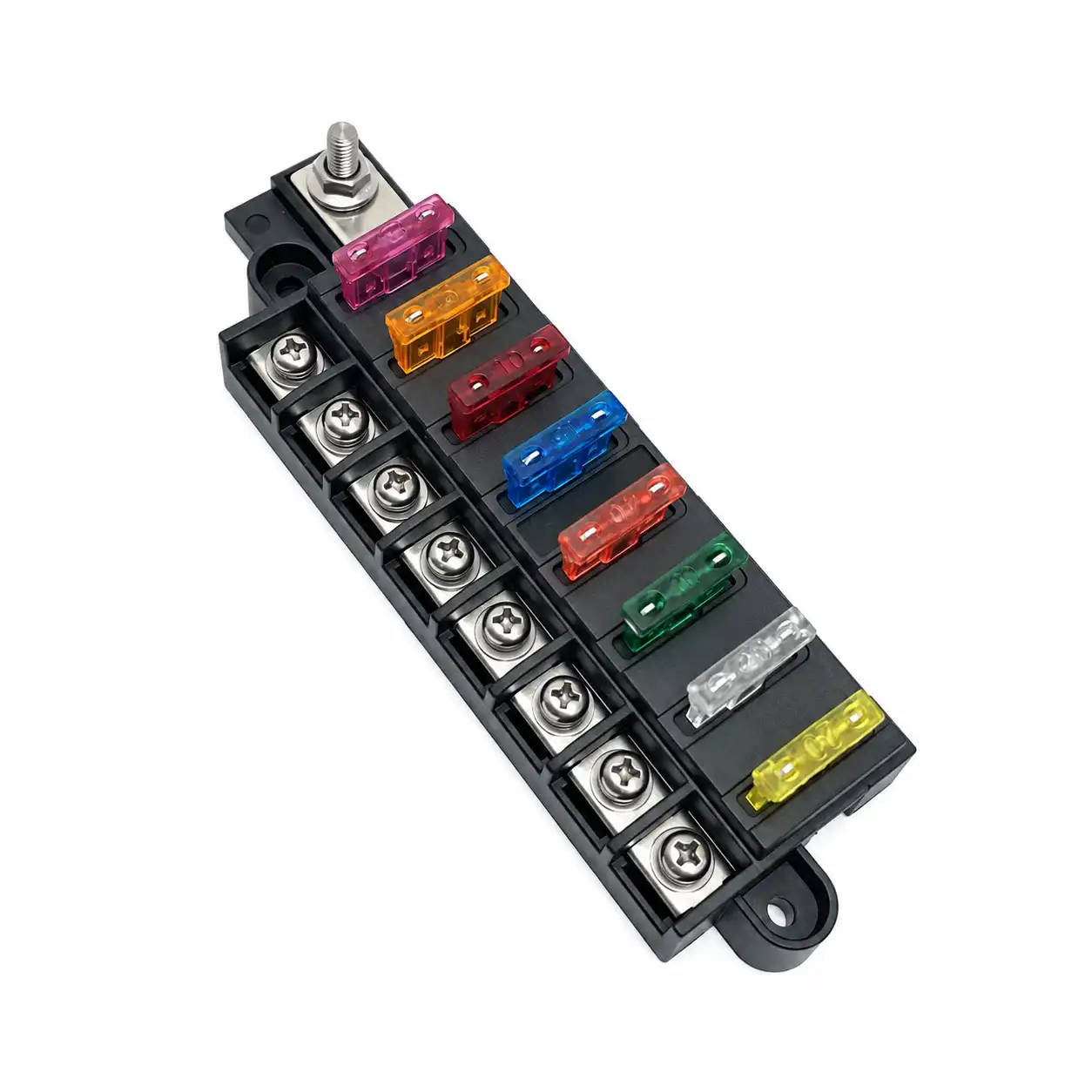

The common DC input distributes power to eight individual fuse positions. Each branch passes through its own ATO/ATC blade fuse before supplying the connected electrical load.
This 8 circuit blade fuse block allows each downstream circuit to use a fuse selected for its own load and wiring requirements, rather than protecting all connected accessories with one fuse value.
The 30A maximum per circuit is the maximum current limit of each individual circuit position. It does not mean that every position should use a 30A fuse.
The actual fuse rating should be selected according to the connected load, conductor size and circuit protection requirements of each branch.
The complete fuse block must also remain within its 100A maximum block rating. Eight circuit positions rated up to 30A each should not be interpreted as a 240A total capacity.
Individual inline fuse holders are useful for isolated circuits, but using many separate holders can make wiring more difficult to organize as the number of accessories increases.
An 8 circuit blade fuse block groups eight separately protected circuits in one location, helping simplify circuit identification, inspection and maintenance in multi-accessory electrical systems.
An eight-circuit configuration is useful when a system has more accessory circuits than a four-way or six-way fuse block can conveniently support.
Typical examples include multiple lighting circuits, auxiliary electronics, outlets and other low-voltage DC accessories that require independent fuse protection.

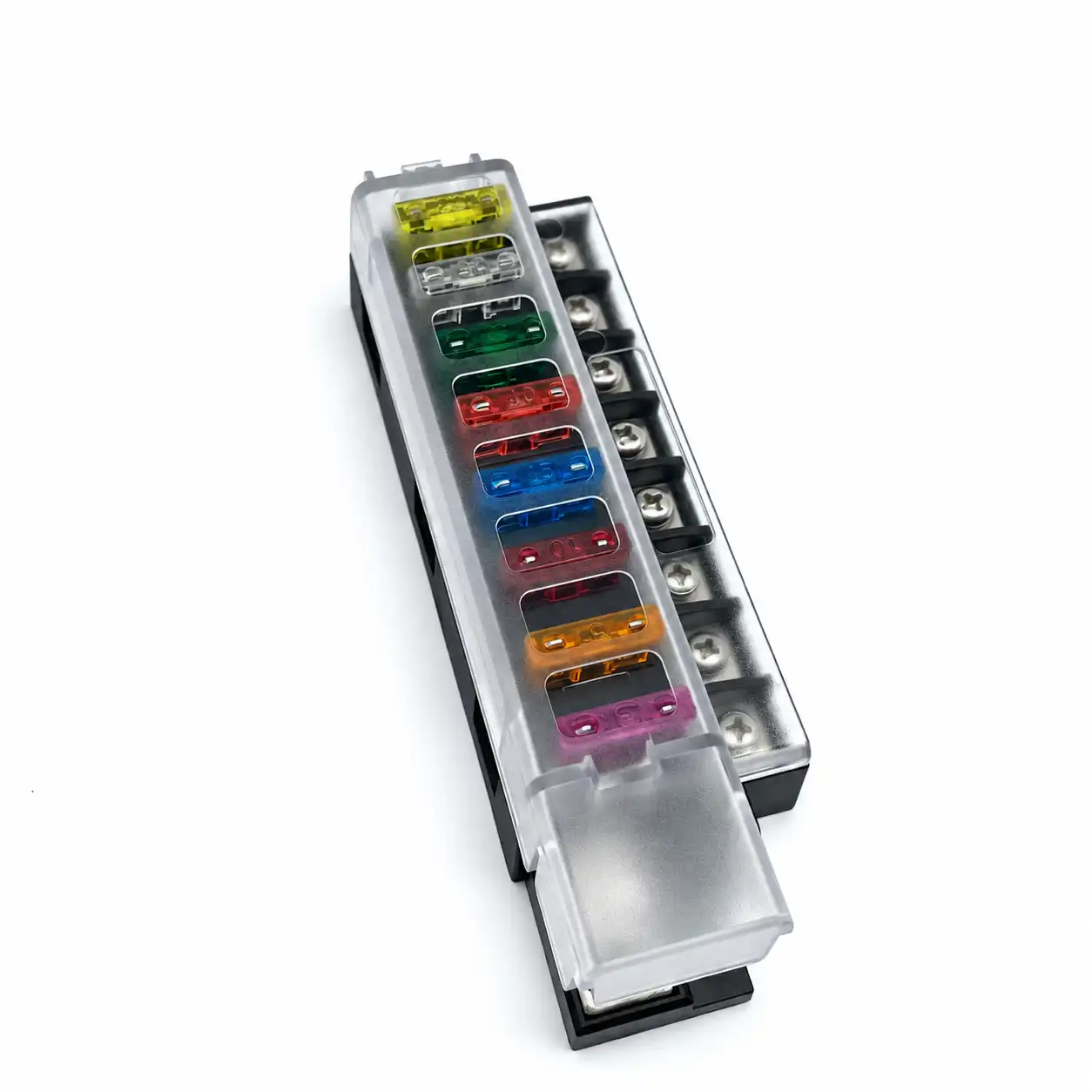

The plastic protective cover provides a physical barrier over the fuse area while keeping the fuse positions grouped within the same enclosure.
A protective cover should not be interpreted as evidence of a specific IP waterproof rating unless the relevant test data is available.
It is designed for standard ATO/ATC blade fuses.
The fuse block supports up to 30A per circuit, but the actual fuse rating should be selected according to the connected load, wiring and circuit protection requirements.
No. The maximum rating for the complete fuse block is 100A. The 30A figure applies to the maximum current of each individual circuit position.
Yes. Both 12V and 24V DC systems are within the confirmed 32V DC maximum voltage, provided the complete electrical design remains within the applicable current limits.
An eight-circuit fuse block centralizes multiple protected circuits in one location, making accessory wiring easier to organize, identify and maintain.
