The CZY-FH06 is a single-position ANM fuse holder designed for high-current automotive and low-voltage DC circuit protection.

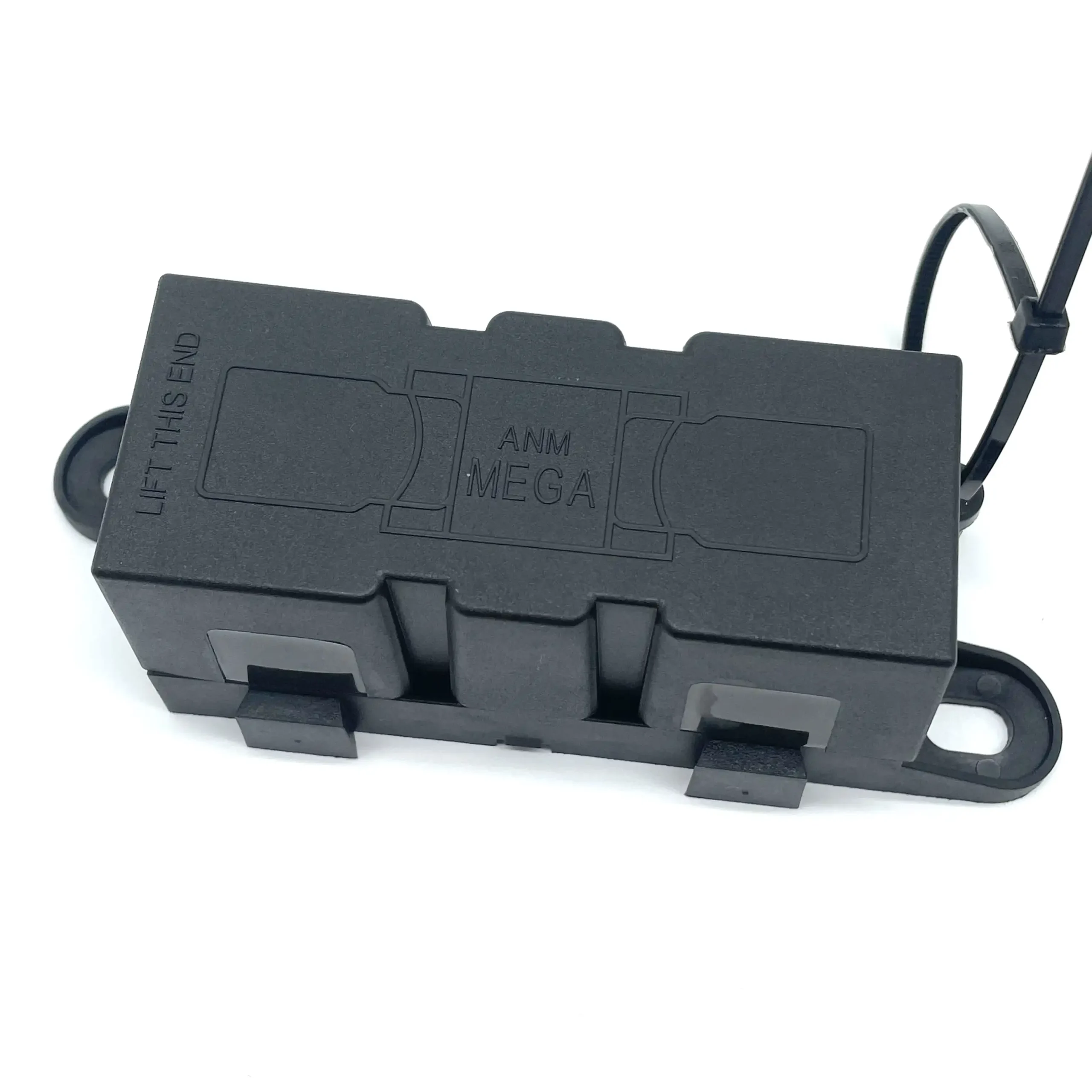

It features two M8 threaded connection studs, a PA66 nylon insulating body, and a protective cover.
The holder is specified for applications up to 120V DC with a maximum electrical current limit of 500A.
B2B inquiries are normally answered within one business day.
The CZY-FH06 ANM Fuse Holder is a single-position bolt-down fuse holder designed for high-current automotive and low-voltage DC electrical systems.

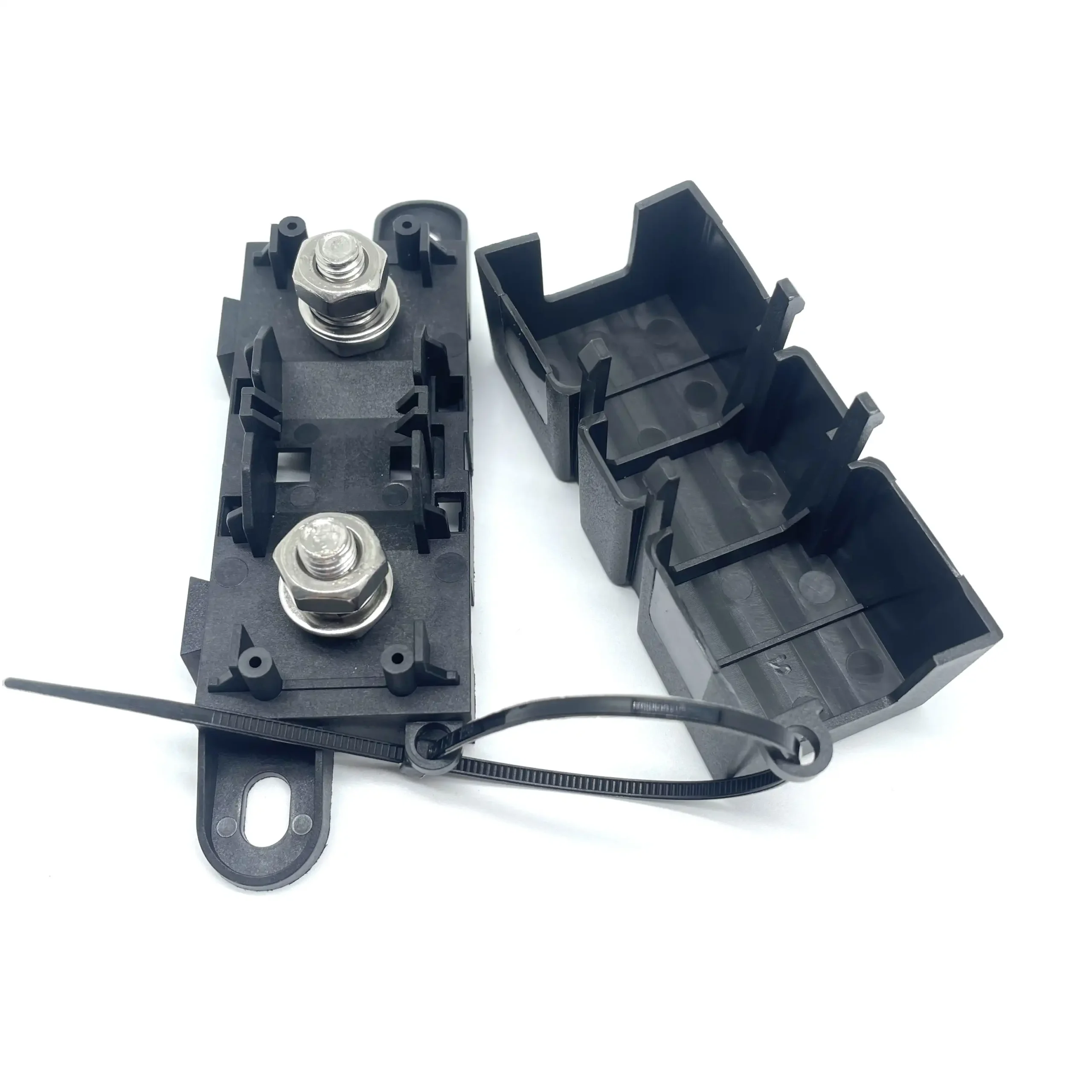

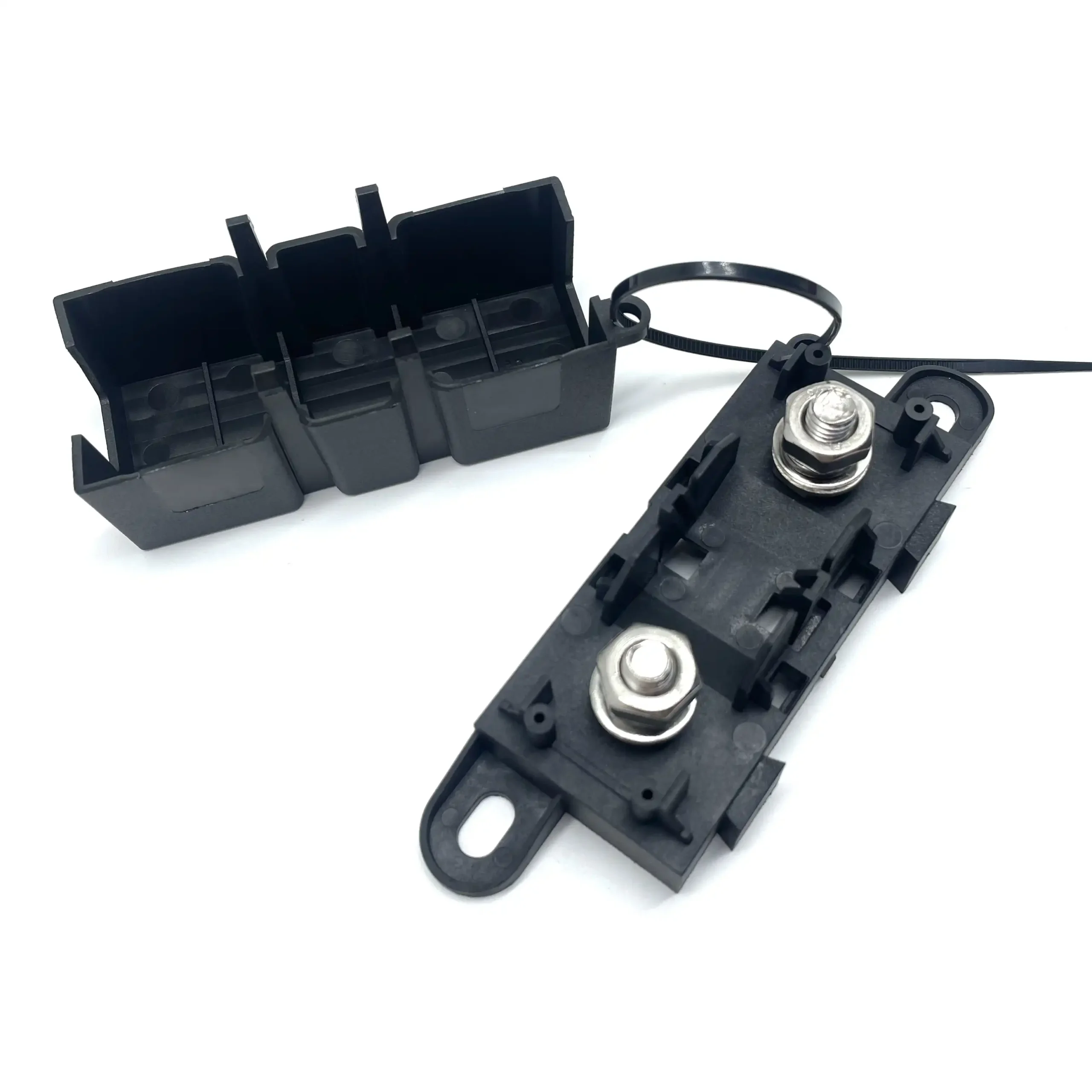

The holder uses two M8 threaded studs with hex nuts to secure the fuse and external circuit connections. Its PA66 nylon insulating body provides mechanical support and electrical separation, while the removable protective cover shields the fuse connection area.
According to the product specification, the holder is designed for applications up to 120V DC, with a maximum electrical current limit of 500A.
Specifications| Specification | Value |
|---|---|
| Model | CZY-FH06 |
| Fuse Type | ANM |
| Maximum Current | 500A |
| Maximum Voltage | 120V DC |
| Application Temperature | -40°C to +125°C |
| Fuse Mounting | M8 Threaded Studs and Hex Nuts |
| M8 Nut Torque | 19 ± 1 N·m |
| Insulator Material | PA66 Nylon |

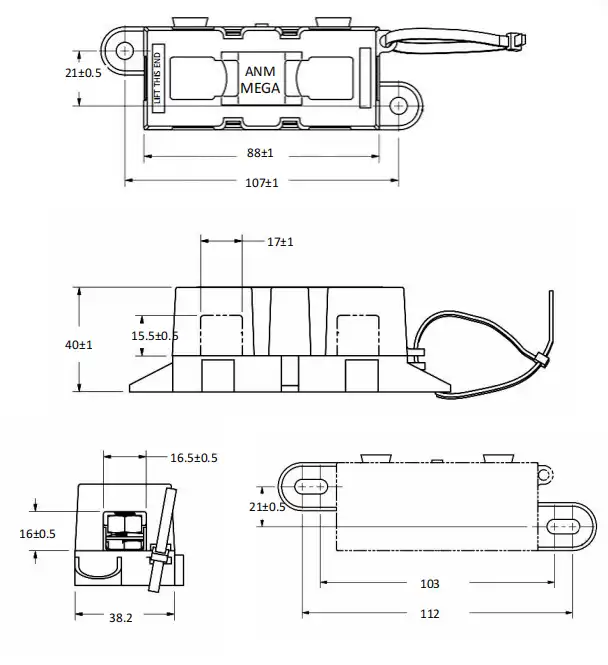

| Overall Length | 112 mm |
| Overall Width | 38.2 mm |
| Overall Height | 40 ± 1 mm |
| General Dimension Tolerance | ±0.25 mm |
The CZY-FH06 ANM fuse holder is suitable for high-current DC circuit protection and power distribution applications using compatible ANM bolt-down fuses, including:
Install a compatible ANM fuse between the two M8 connection studs and secure the assembly using the supplied threaded connection points.
The specification sheet gives an M8 nut torque requirement of 19 ± 1 N·m.
The fuse rating should be selected according to the protected circuit, connected conductor, load requirements, and overall system design.
The holder’s 500A maximum electrical limit should not be interpreted as a recommended 500A fuse rating for every installation.
Cozy Electronics supplies automotive circuit protection components for OEM, distribution, and customized electrical applications.
For project-specific requirements, fuse selection, or product configuration inquiries, contact us with your application details.
