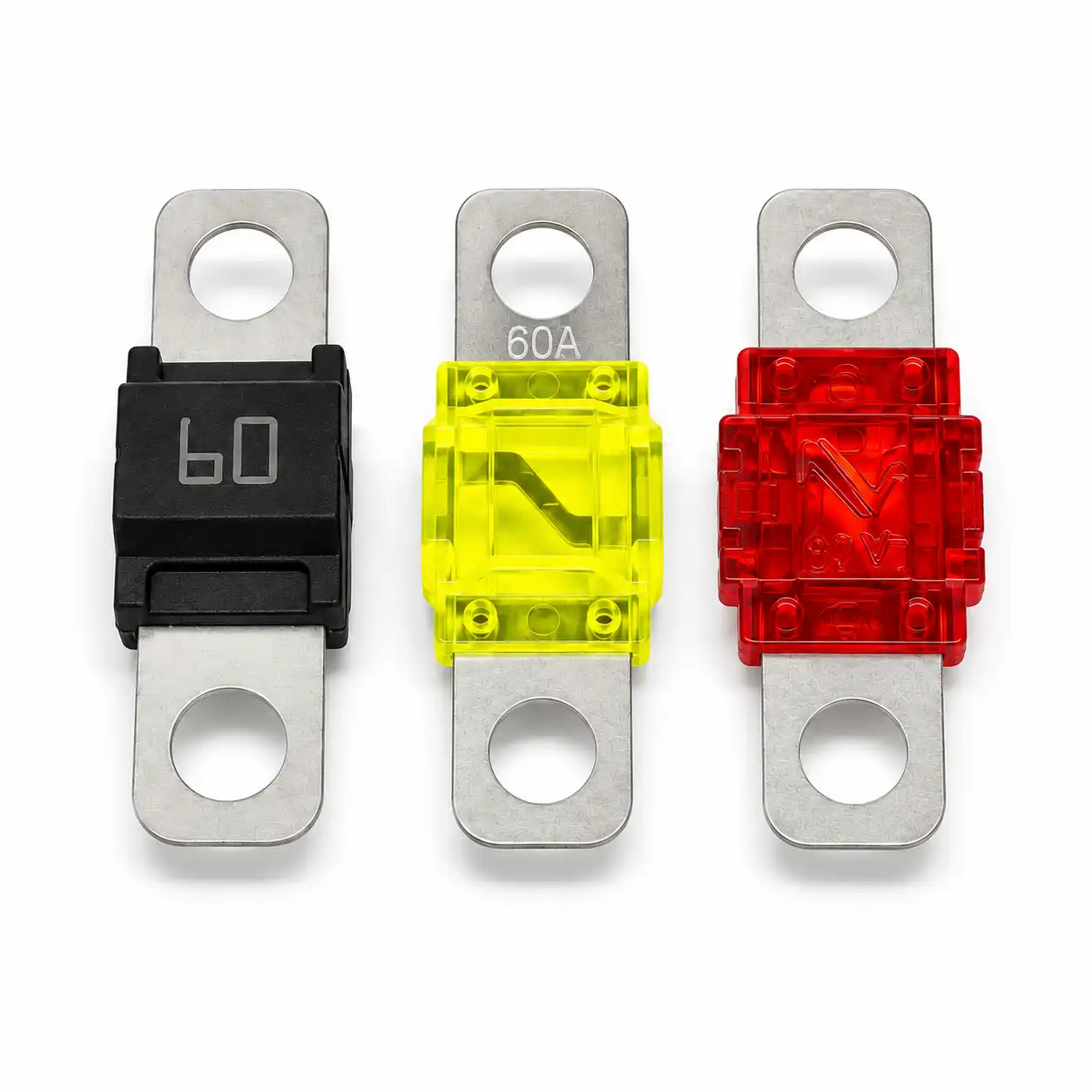

CZY-FS11 ANS / MIDI Fuse is a high current automotive battery fuse designed for DC circuit protection in vehicle and power distribution systems.
Rated at 58V DC and available from 30A to 200A, it is suitable for battery protection, automotive electrical systems, and other high current DC applications.
B2B inquiries are normally answered within one business day.
ANS Fuse is a high current automotive battery fuse designed for DC circuit protection in vehicle battery systems and power distribution applications.
CZY-FS11 provides reliable overcurrent protection for applications requiring compact bolt-down fuse solutions.

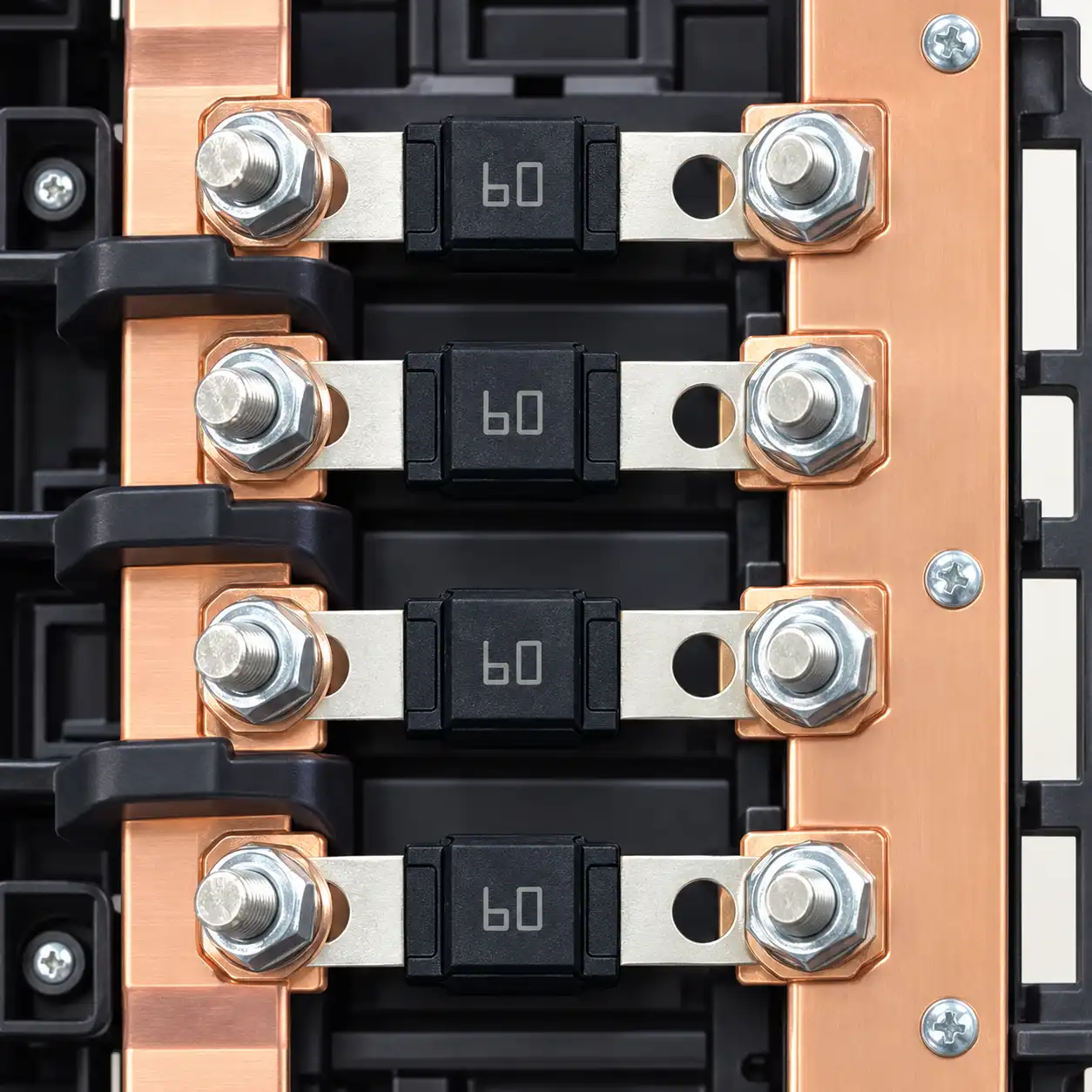

It is commonly used in vehicle battery circuits, power distribution systems, and other applications where secure high current protection is required.
This fuse series is based on the AN498 / YS498 structure and is rated at 58V DC. In the market, this type of fuse is commonly referred to as an ANS fuse, and in some applications it is also grouped into the MIDI fuse category. For buyers looking for compact high current battery protection fuses, CZY-FS11 provides a practical solution for automotive and industrial DC systems.
With current ratings from 30A to 200A, a polyamide housing, and a copper alloy metal element, CZY-FS11 is suitable for battery protection and high current circuit applications where reliable electrical performance is required.
| Item | Specification |
|---|---|
| Product Type | ANS / MIDI Fuse |
| Model | CZY-FS11 |
| Original Model | AN498 / YS498 Series |
| Fuse Type | High Current Automotive Battery Fuse |
| Voltage Rating | 58V DC |
| Current Range | 30A-200A |
| Interrupting Rating | 1000A @ 58V DC |
| Housing Material | Polyamide |
| Metal Element Material | Copper Alloy |
| Operating Temperature | -40℃ to +125℃ |
| Testing Standard | GB/T 31465.5 / ISO 8820-5 |

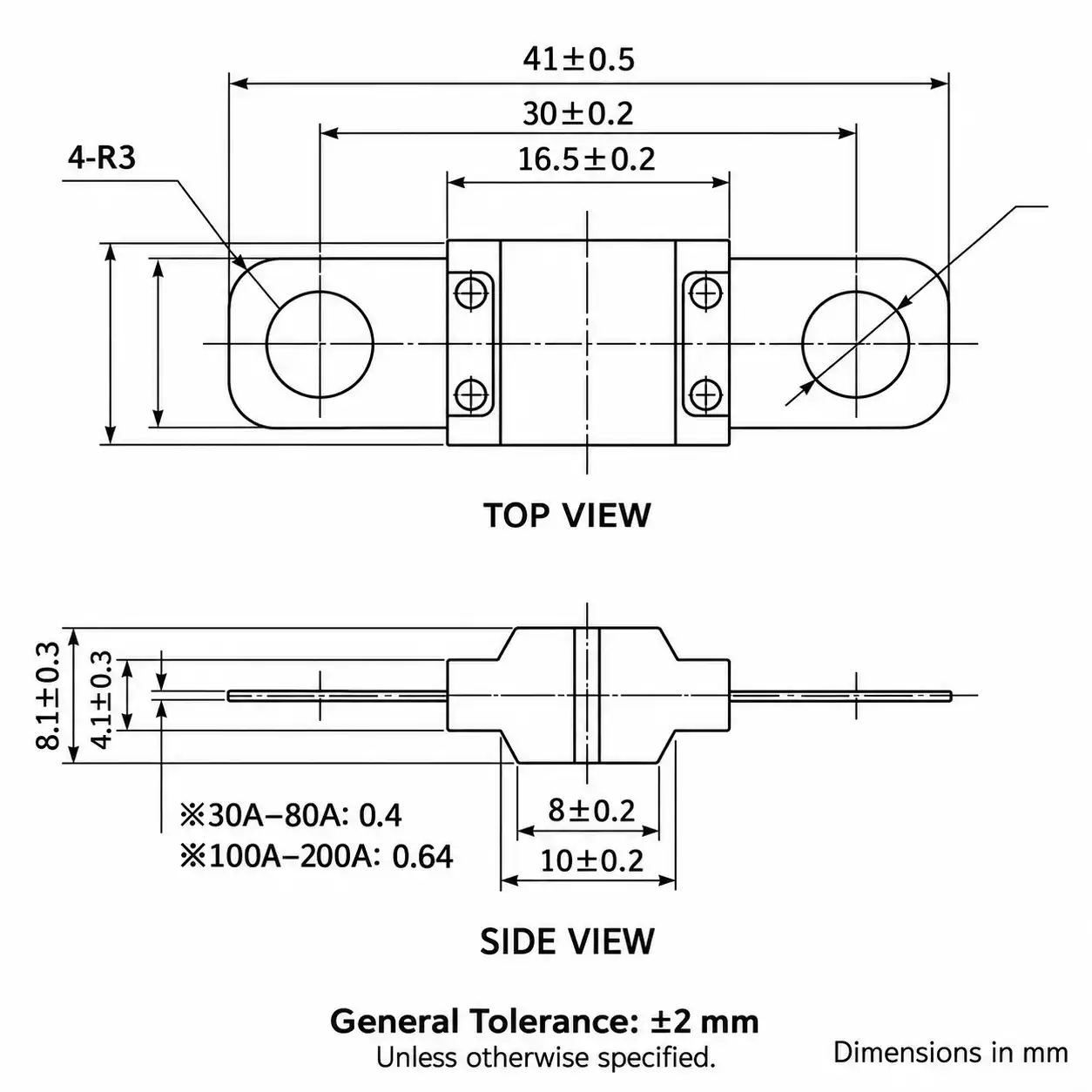

| Overall Length | 41 mm |
| Body Width | 16.5 mm |
| Body Height | 8.1 mm |
| Mounting Hole | 8 mm |
| Recommended Installation Torque | 3.5-7 N·m (depending on current rating) |
CZY-FS11 ANS / MIDI Fuse is available in multiple current ratings to suit different protection requirements:
When selecting a high current battery fuse, buyers should check the system voltage, required current rating, cable size, and installation requirements. The fuse should be matched to the protected circuit to help prevent cable or component damage caused by excessive current.
CZY-FS11 is rated for 58V DC applications and offers current options from 30A to 200A. It is suitable for buyers looking for an ANS fuse or a MIDI-style automotive battery fuse for compact high current protection.
An ANS / MIDI Fuse is a high current automotive battery fuse used to protect DC circuits from overcurrent conditions. It is commonly installed in battery and power distribution systems.
The Cozy Electronics model number for this product is CZY-FS11.
CZY-FS11 is rated for 58V DC applications.

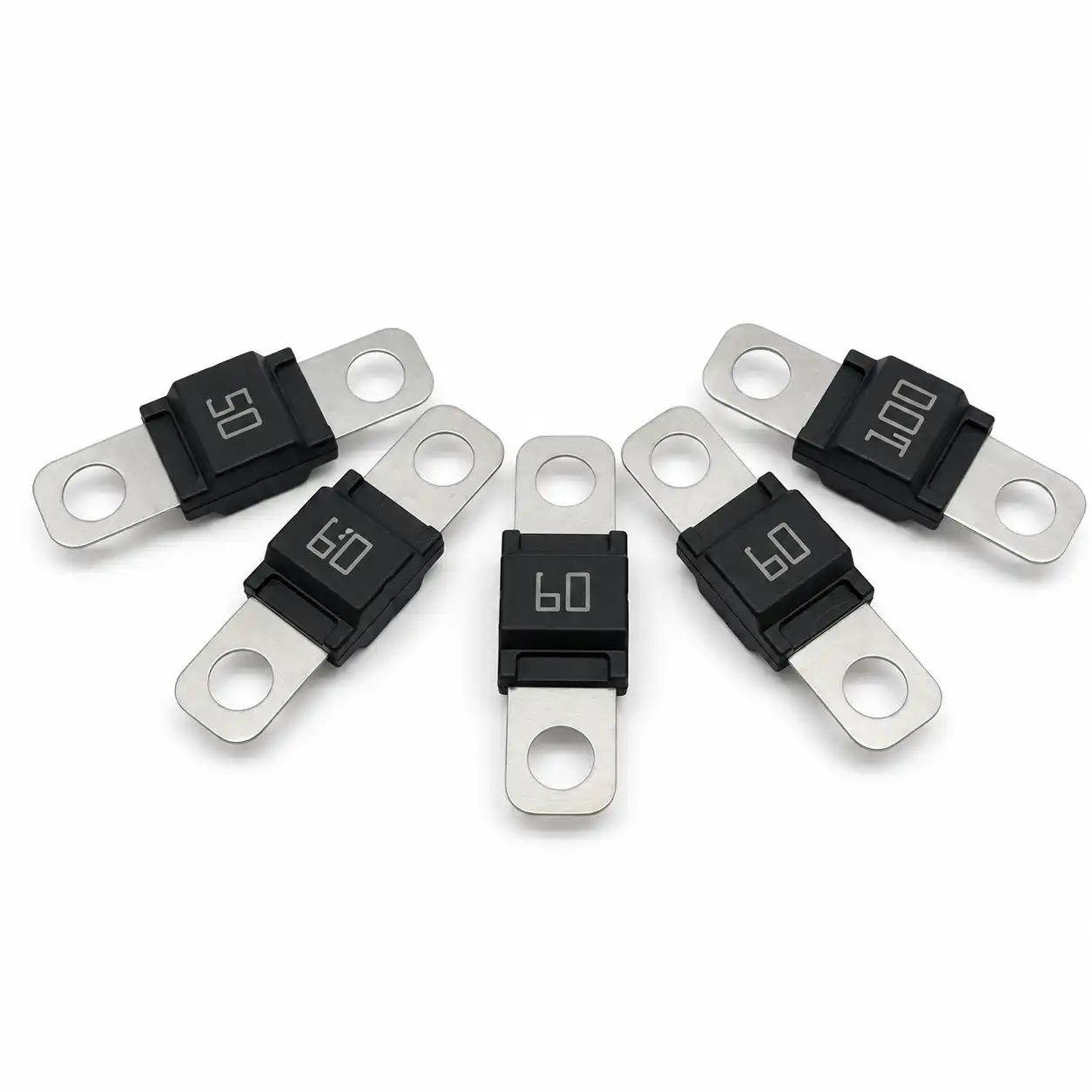

This fuse series is available from 30A to 200A, including 30A, 40A, 50A, 60A, 70A, 80A, 100A, 125A, 150A, 175A, and 200A.
Yes. CZY-FS11 is designed for battery circuit protection and other high current DC applications in automotive, marine, RV, and industrial systems.
Yes. Cozy Electronics supports OEM and customized solutions based on customer requirements.
Specifications are based on the provided AN498 / YS498 technical documentation. Please confirm the required current rating, installation requirements, and application conditions before ordering.
