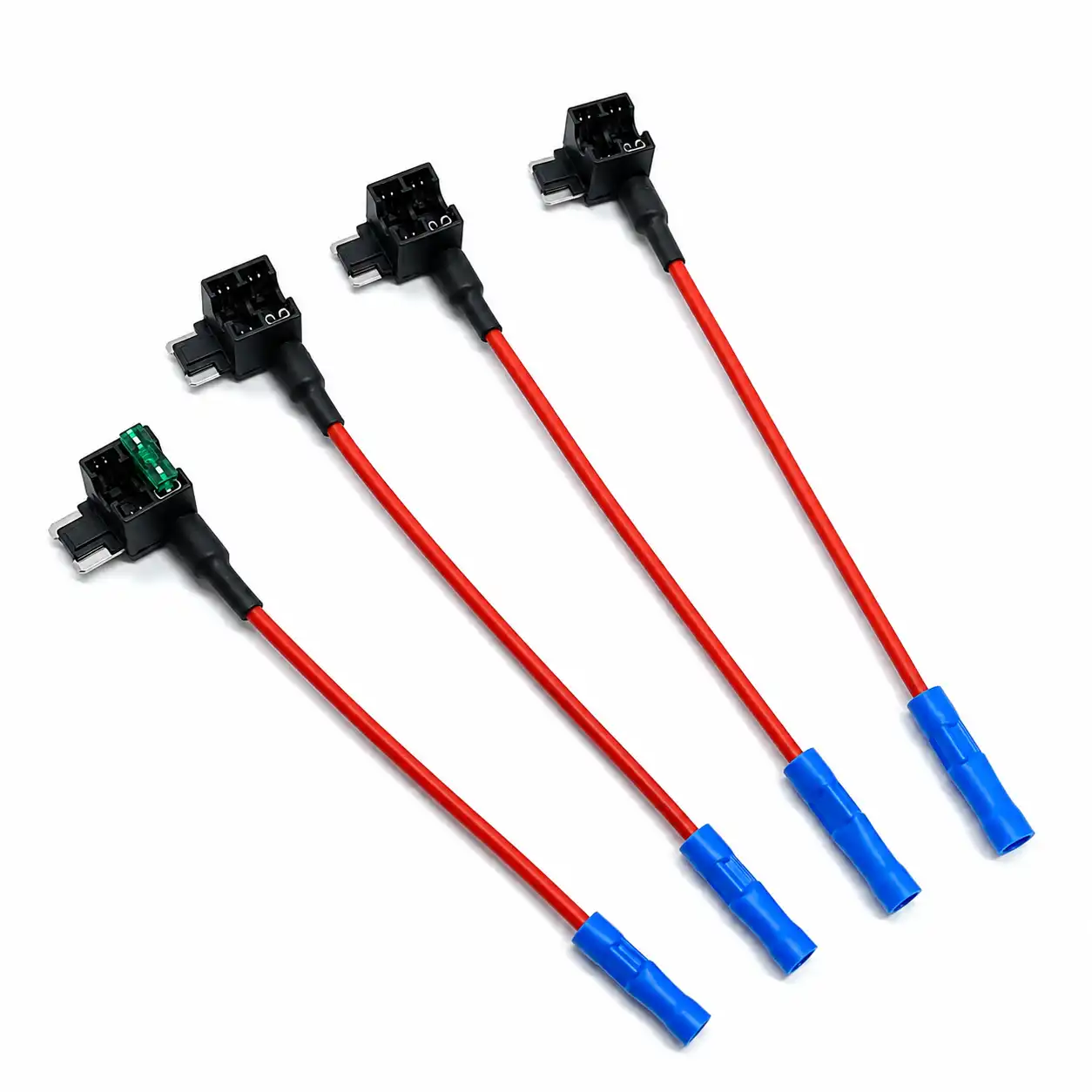

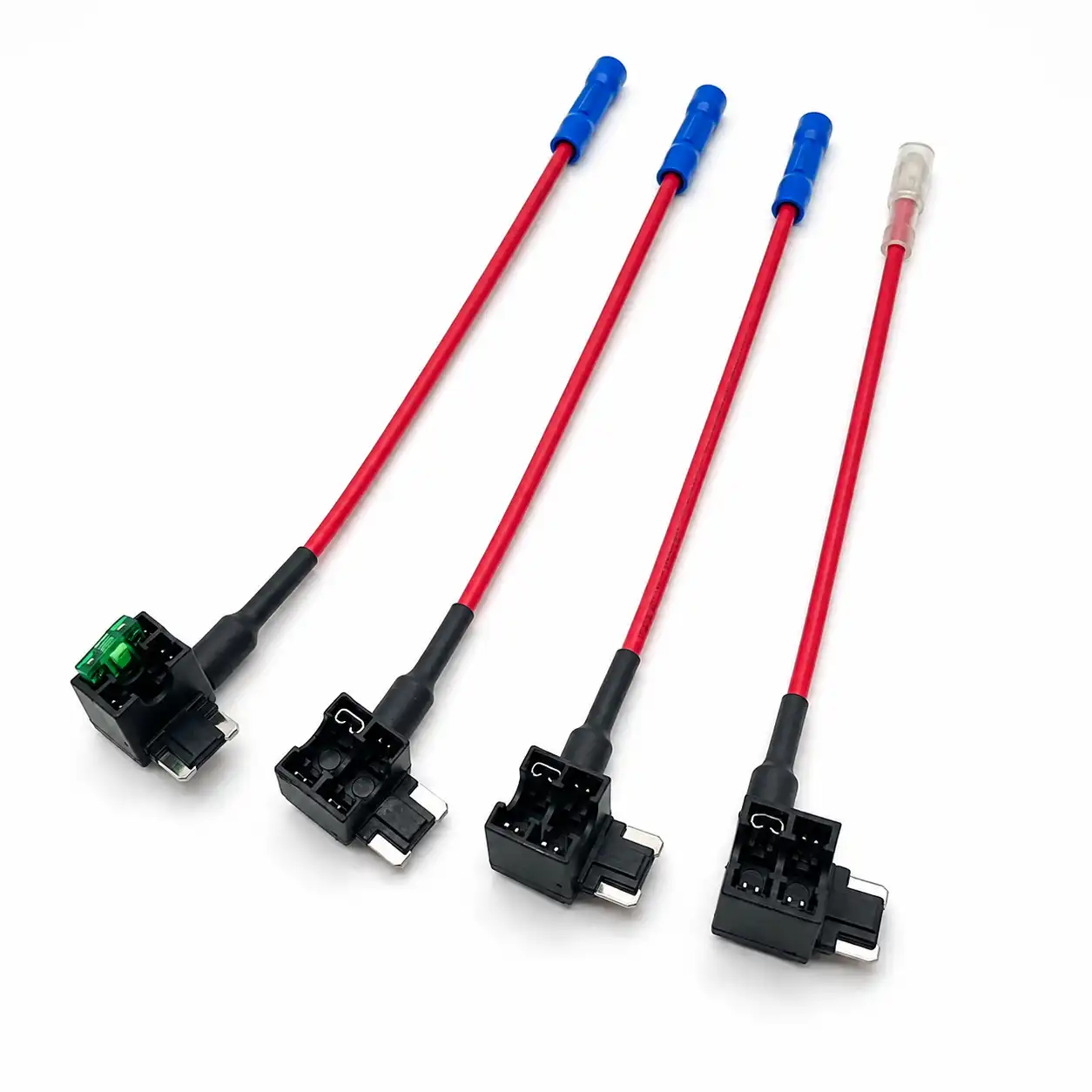

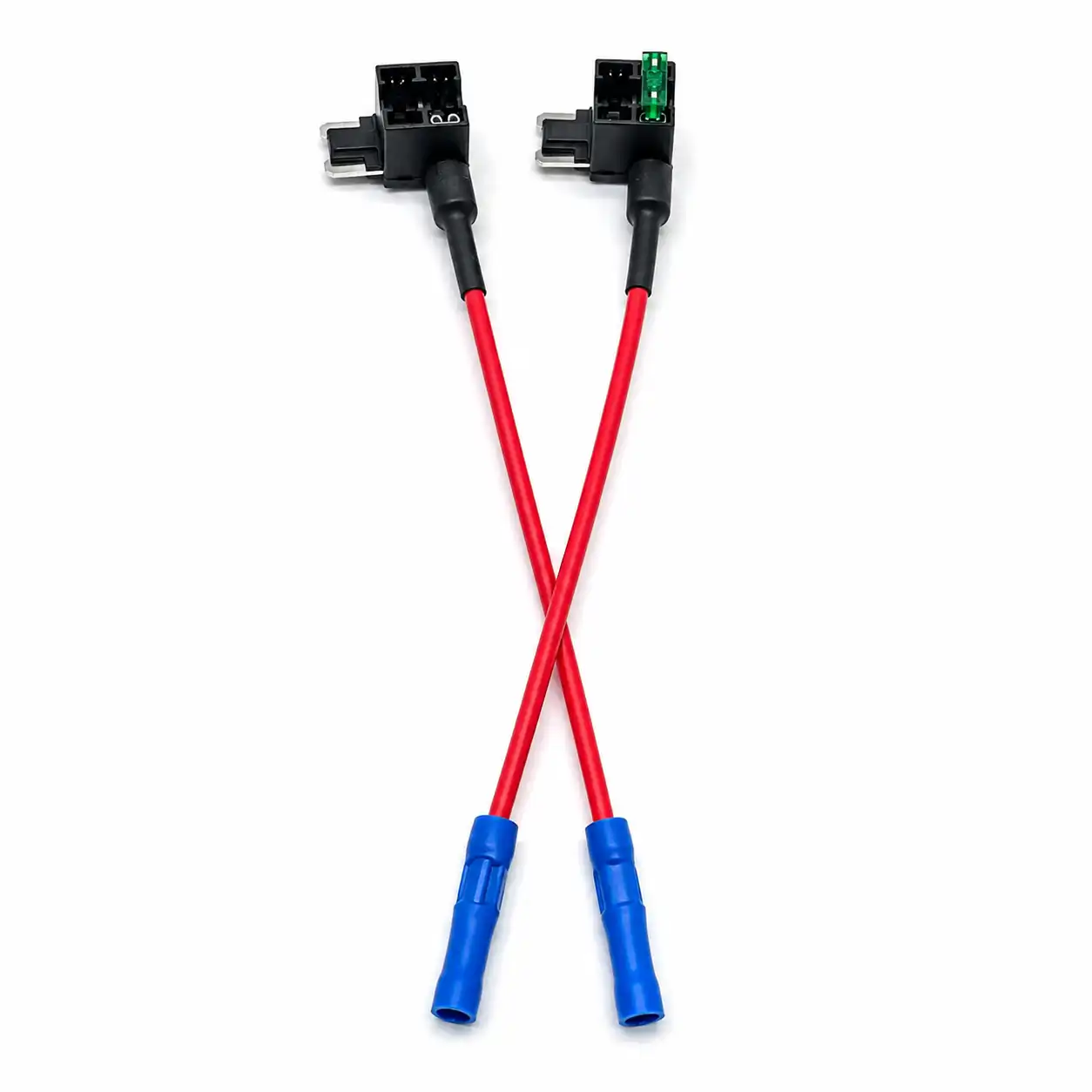

The Micro Fuse Tap – Add-a-Circuit is designed to add an accessory circuit through an existing automotive fuse panel without cutting or modifying the original vehicle wiring.
Model CZY-FT004 is designed for 32V Micro blade fuse applications with compatible fuse ratings from 5A to 30A.
It features a nylon housing, zinc alloy conductive terminals, and customizable wire gauge and wire length for different automotive wiring and OEM assembly requirements.
Actual current capacity depends on the selected wire gauge and wiring configuration.
B2B inquiries are normally answered within one business day.
The Micro Fuse Tap – Add-a-Circuit provides a convenient way to add an additional electrical accessory circuit through an existing automotive fuse panel without cutting or modifying the vehicle’s original wiring.
Model CZY-FT004 is designed for compact Micro blade fuse applications in 32V DC automotive electrical systems. It can be used when additional power connections are required for vehicle accessories such as dash cameras, GPS and navigation devices, LED equipment, and other automotive electronics.
The fuse tap features a nylon housing and zinc alloy conductive terminals. UL1015 and UL1007 electronic wires are commonly used, while both wire gauge and wire length can be customized according to installation, electrical load, and OEM assembly requirements.
| Specification | Value |
|---|---|
| Product Type | Micro Fuse Tap – Add-a-Circuit |
| Model | CZY-FT004 |
| Voltage | 32V DC |
| Fuse Type | Micro Blade Fuse |
| Compatible Fuse Rating Range | 5A–30A |

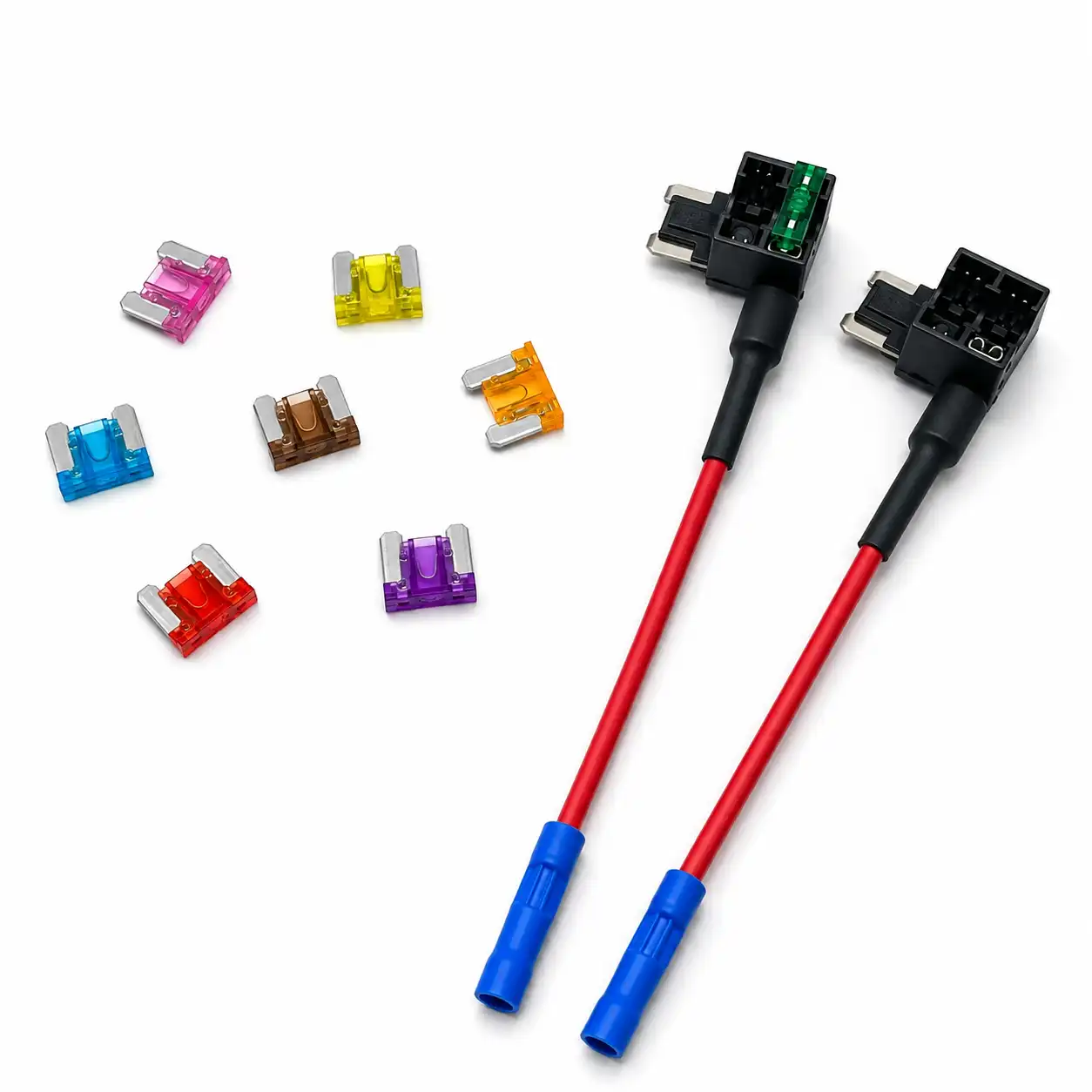

| Compatible Fuse Ratings | 5A / 7.5A / 10A / 15A / 20A / 25A / 30A |
| Current Capacity | Depends on wire gauge and configuration |
| Housing Material | Nylon |
| Terminal Material | Zinc Alloy |
| Wire Type | UL1015 / UL1007 |
| Wire Gauge | Customizable |
| Wire Length | Customizable |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | +10°C to 60°C |
| Certification | To be confirmed |
Typical applications include:
The compact Micro Fuse Tap is suitable for automotive fuse panels where an additional accessory power connection is required while retaining the original vehicle wiring.
Wire gauge and wire length can be customized according to project requirements.
UL1015 and UL1007 electronic wires are commonly available. Different wire specifications can be selected according to the required current load, installation space, wiring layout, and application requirements.
For customized projects, customers can provide the required wire gauge, wire length, and connection configuration for confirmation.
