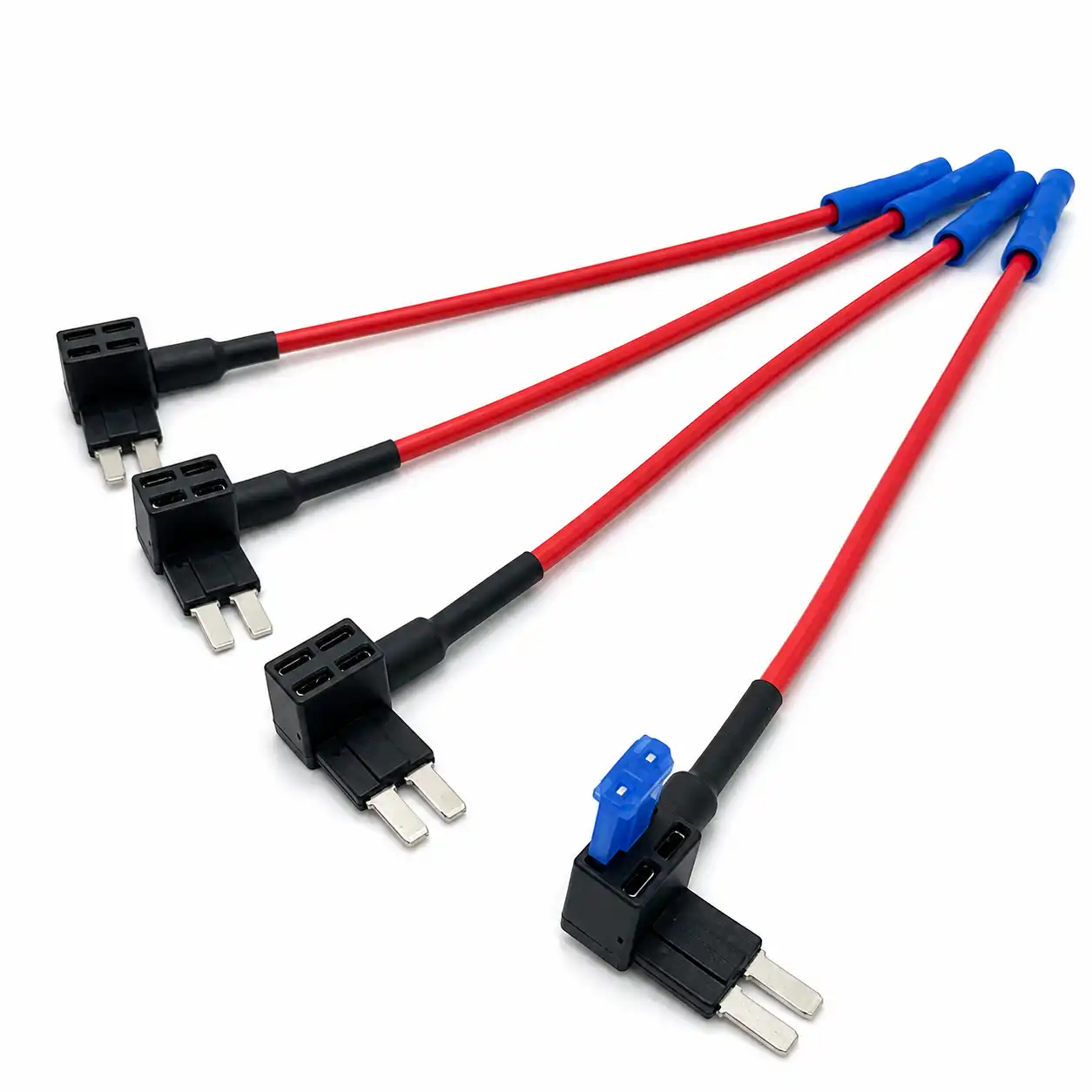

The Micro2 Add-a-Circuit Fuse Tap is designed to add an accessory circuit through an existing automotive fuse panel without cutting or modifying the original vehicle wiring. Model CZY-FT03 is designed for 32V Micro2 blade fuse applications from 5A to 30A.
It features a black nylon housing, nickel-plated copper terminals, and customizable wire gauge and wire length. Actual current capacity depends on the selected wire gauge and wiring configuration.
B2B inquiries are normally answered within one business day.
The Micro2 Fuse Tap is designed to add an additional accessory circuit through an existing automotive fuse panel without cutting or modifying the vehicle’s original wiring.

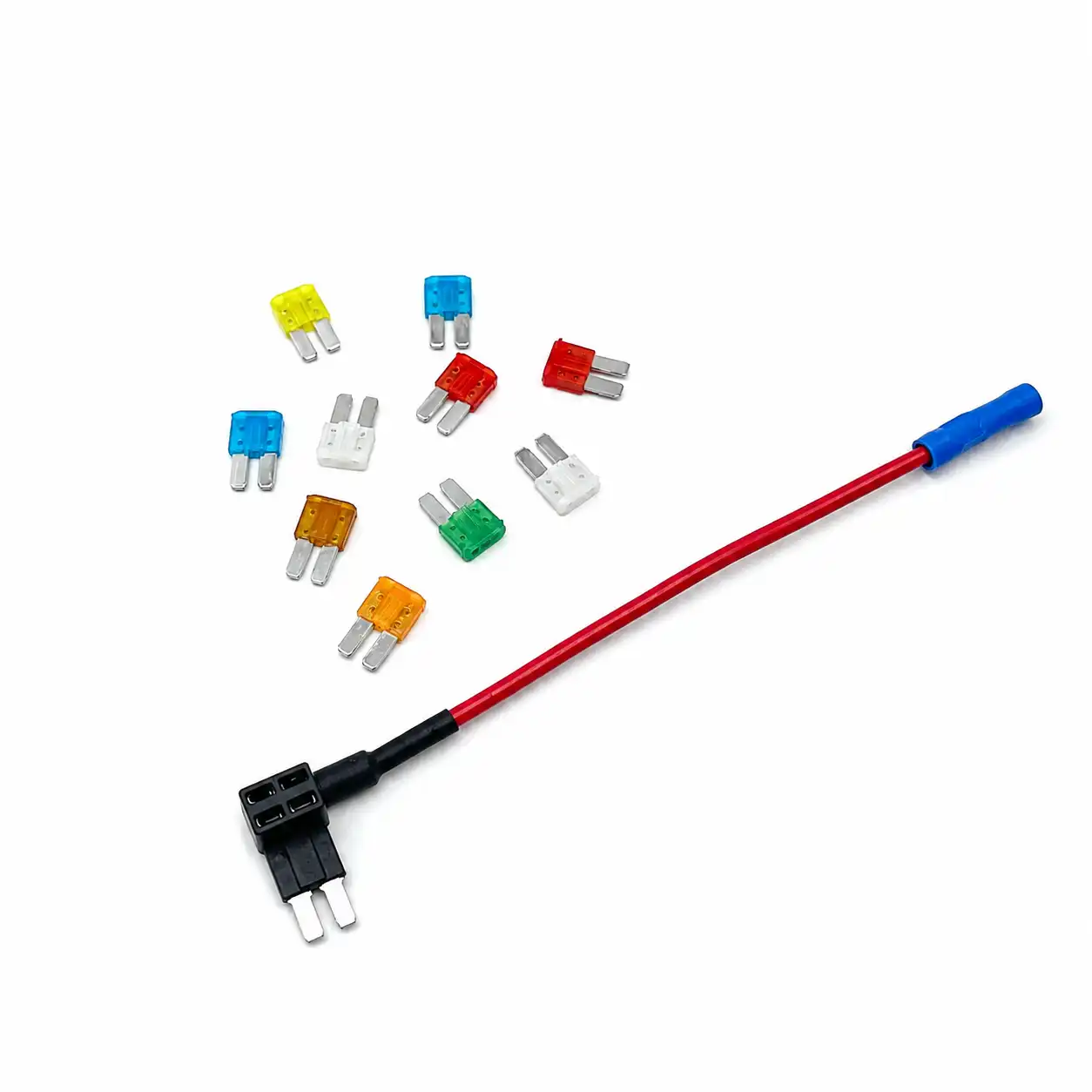

Model CZY-FT03 is designed for Micro2 automotive blade fuse applications and provides a convenient solution for adding power connections for dash cameras, GPS and navigation devices, LED equipment, and other vehicle electronic accessories.

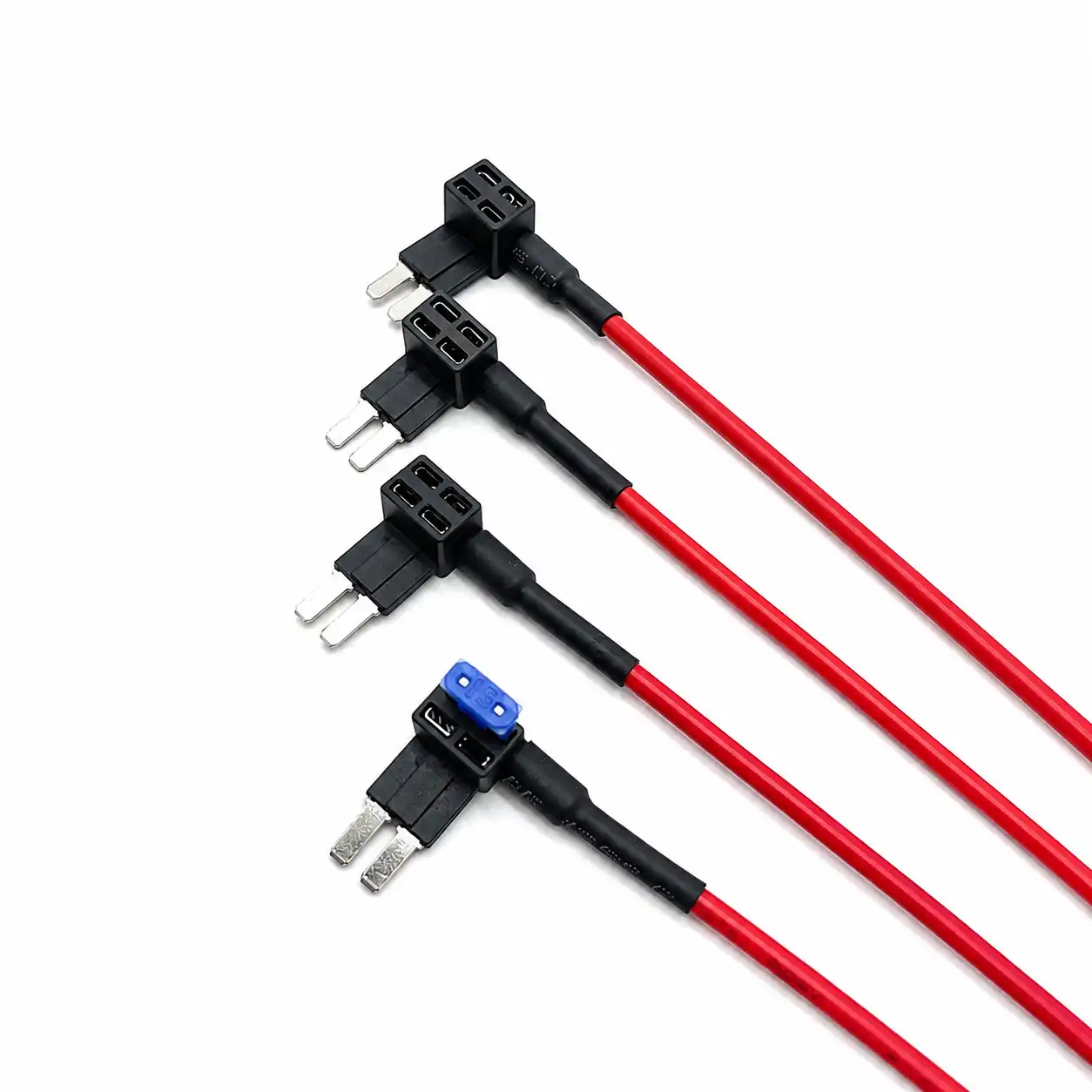

The fuse tap features a black nylon housing and nickel-plated copper conductive terminals. UL1015 and UL1007 electronic wires are commonly used. Wire gauge and wire length can be customized according to different installation and OEM assembly requirements.

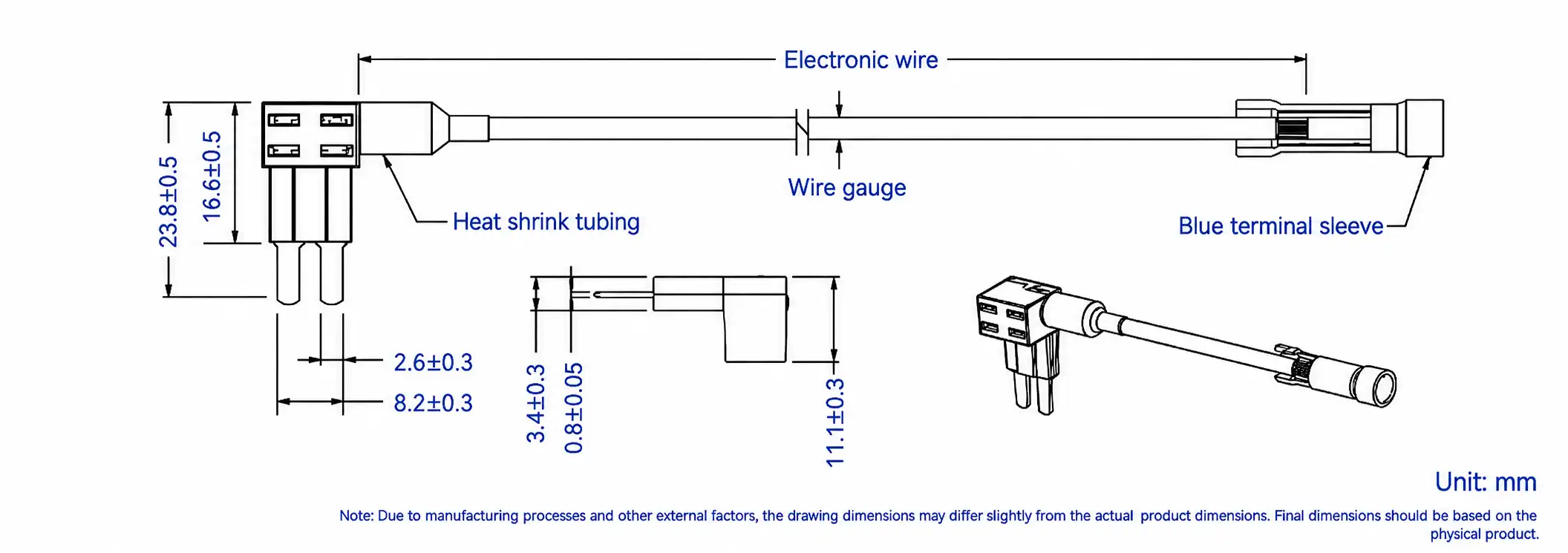

| Specification | Value |
|---|---|
| Product Type | Micro2 Add-a-Circuit Fuse Tap |
| Model | CZY-FT03 |
| Voltage | 32V DC |
| Fuse Type | Micro2 Blade Fuse |
| Compatible Fuse Rating Range | 5A–30A |
| Current Capacity | Depends on wire gauge and configuration |
| Housing Material | Black Nylon |
| Terminal Material | Copper |
| Terminal Plating | Nickel Plated |
| Wire Type | UL1015 / UL1007 |
| Wire Gauge | Customizable |
| Wire Length | Customizable |
| Operating Temperature | -5°C to 60°C |
| Storage Temperature | +10°C to 60°C |
| Certification | To be confirmed |
Micro2 blade fuse ratings in your supplied fuse specification include multiple amperage options up to 30A.
Typical applications include:
The Micro2 Fuse Tap is suitable for vehicles using compact Micro2 blade fuse positions where an additional accessory power connection is required.
Wire gauge and wire length can be customized according to project requirements.
UL1015 and UL1007 electronic wires are commonly used. Different wire specifications can be selected according to the required current, installation space, and application requirements.
Actual current capacity should be determined according to the selected wire gauge and final wiring configuration.
