The Mini Fuse Holder is a waterproof inline circuit protection solution designed for Mini automotive blade fuses in 32V DC applications.
Model CZY-FH01 features a protective waterproof cover, PVC housing, and tin-plated brass terminals.
Wire gauge and wire length can be customized for different automotive wiring harness and OEM assembly requirements.
Actual current capacity depends on the selected wire gauge and final circuit configuration.
B2B inquiries are normally answered within one business day.
The Mini Fuse Holder is a waterproof inline circuit protection solution designed for Mini automotive blade fuses in 32V DC applications. Model CZY-FH01 features a protective waterproof cover, PVC housing, and tin-plated brass terminals for reliable automotive wiring connections. Wire gauge and wire length can be customized for different wiring harness and OEM assembly requirements. Actual current capacity depends on the selected wire gauge and final circuit configuration.

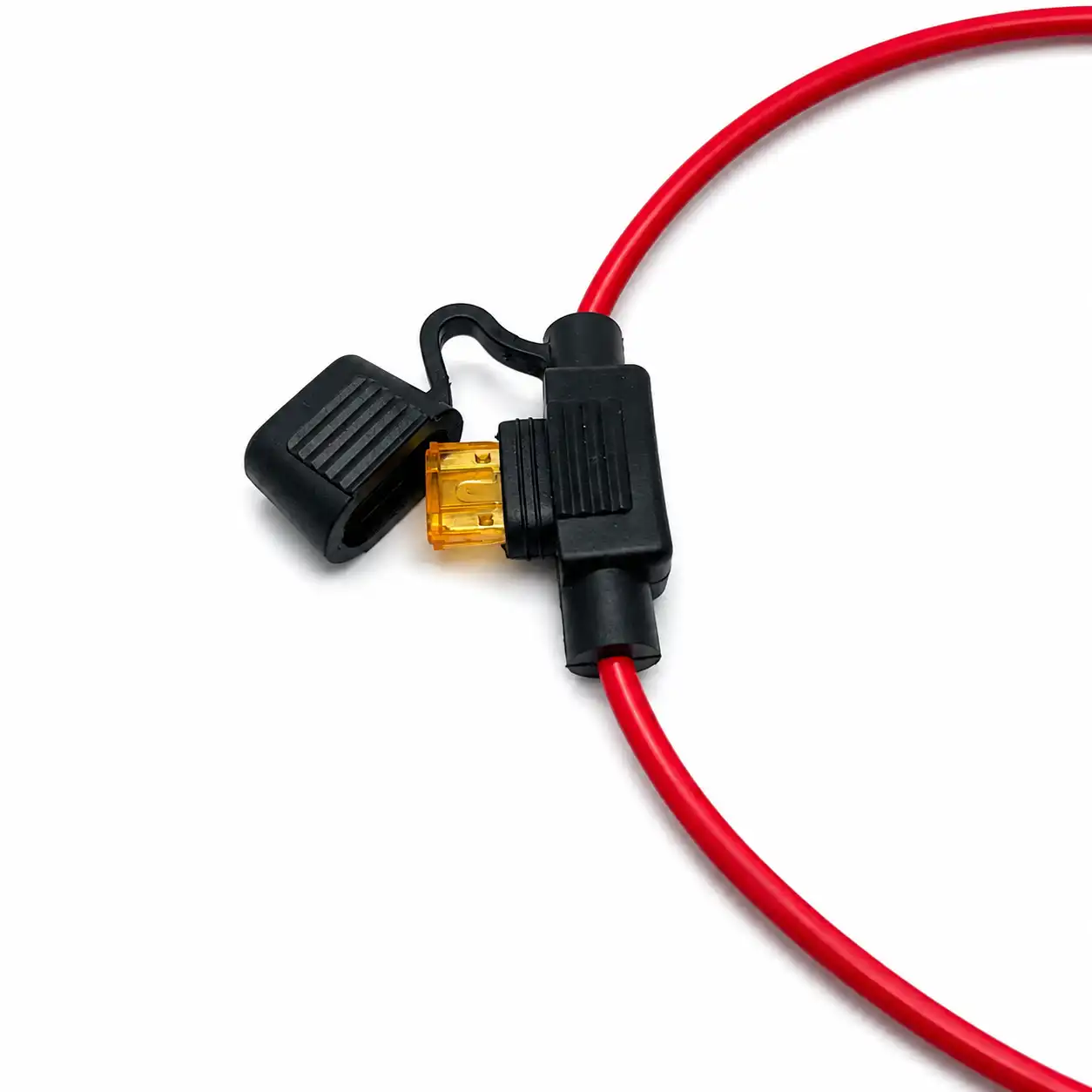

The Mini Fuse Holder is a waterproof inline circuit protection component designed for Mini automotive blade fuses. Model CZY-FH01 provides a convenient way to integrate a replaceable fuse directly into automotive and low-voltage wiring without requiring a separate fuse box.

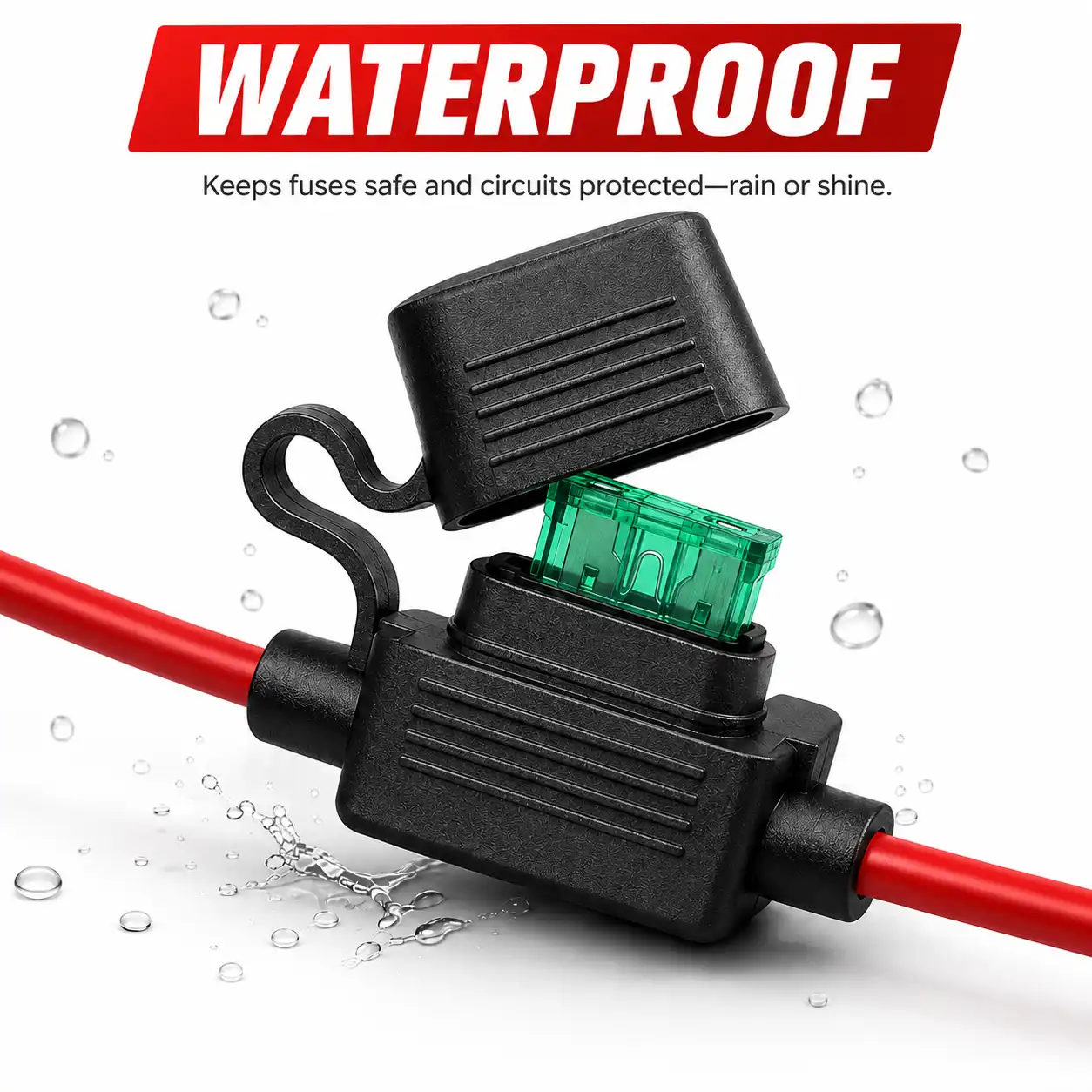

Its waterproof protective cover helps shield the installed fuse and terminal area from moisture, dust, accidental contact, and external interference during normal automotive wiring applications.
The holder uses a PVC housing with brass conductive terminals and a tin-plated terminal surface. Wire gauge and wire length can be customized according to different wiring harness, electrical load, and OEM assembly requirements. The material configuration follows Cozy’s related inline fuse holder construction.
| Specification | Value |
|---|---|
| Product Type | Waterproof Inline Mini Blade Fuse Holder |
| Model | CZY-FH01 |
| Fuse Type | Mini Blade Fuse |
| Voltage | 32V DC |

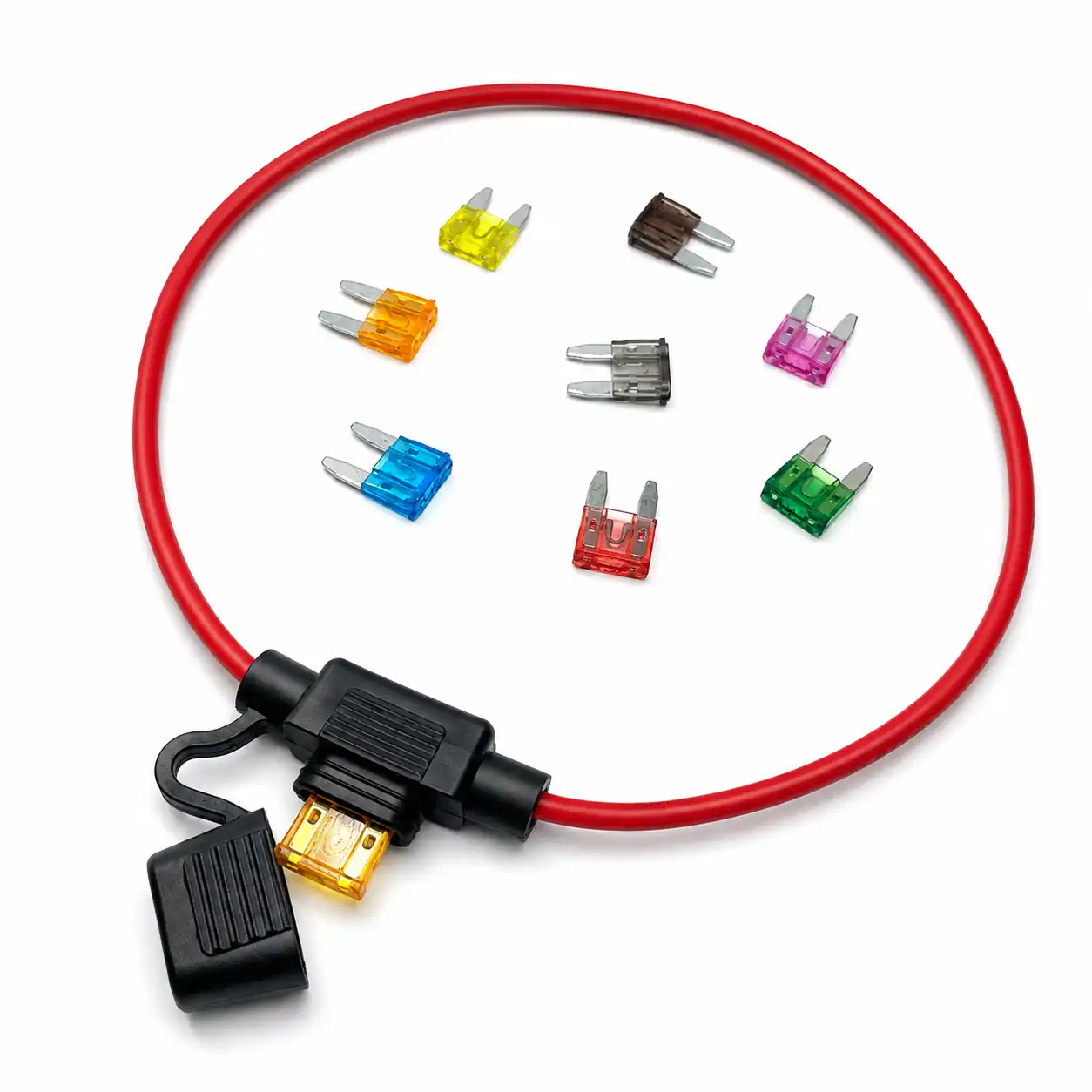

| Compatible Fuse Rating Range | 2A–30A |
| Current Capacity | Depends on wire gauge and configuration |
| Housing Material | PVC |
| Terminal Material | Brass |
| Terminal Plating | Tin Plated |
| Wire Gauge | Customizable |
| Wire Length | Customizable |
| Cover Type | Waterproof Protective Cover |
| Installation Type | Inline |

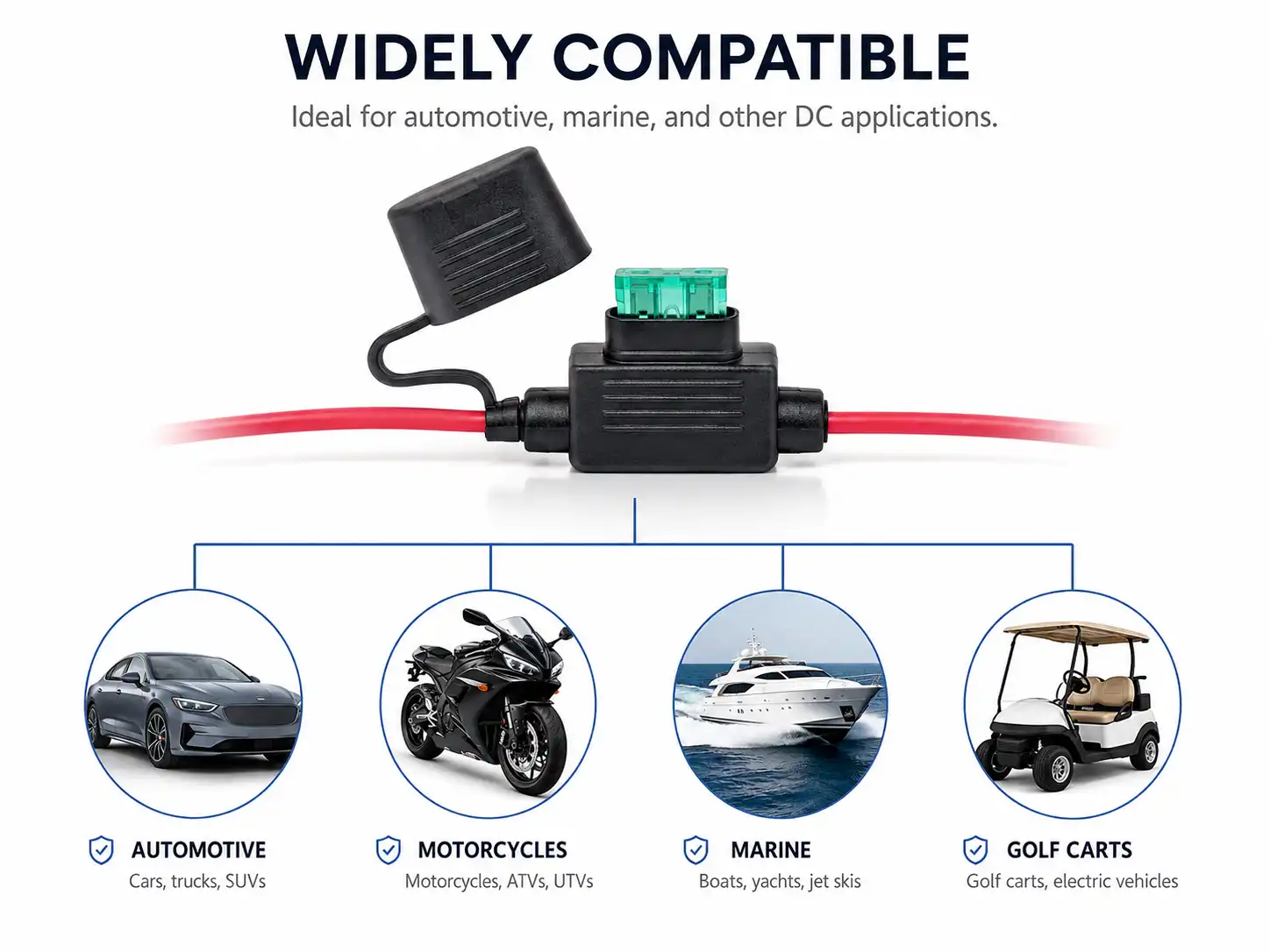

Typical applications include:
The inline design is suitable for installations where compact, protected fuse placement is required without adding a separate fuse box.
Wire gauge and wire length can be customized according to project requirements.
Different wire specifications can be selected based on circuit load, installation space, wiring layout, and connection requirements.
For OEM projects, wire length, wire gauge, wire color, and assembly configuration can be customized according to customer requirements.
Actual allowable current should be determined according to the selected wire specification and final circuit configuration.
