PAL closed-hole fuse designed for 32V/58V DC automotive circuit protection.
CZY-FS10 features straight male terminals with complete closed holes and supports a 20A–120A current range for compatible vehicle fuse boxes, battery circuits and alternator-related applications.
B2B inquiries are normally answered within one business day.
The CZY-FS10 PAL Closed-Hole Fuse is an automotive fuse designed for vehicle electrical systems that use a PAL-style straight male terminal connection.
Unlike fork-blade PAL fuses with open-ended terminals, CZY-FS10 uses straight male terminals with complete closed holes. This terminal structure provides a clearly defined mechanical interface for compatible automotive fuse boxes and power distribution circuits.
The fuse is designed for 32V / 58V DC automotive systems and is available in a 20A–120A current range. Typical applications include main fuse boxes, battery circuits, alternator-related circuits and other vehicle power distribution systems requiring this PAL terminal format.
| Item | Specification |
|---|---|
| Product Type | Automotive Fuse |
| Model | CZY-FS10 |
| Fuse Type | PAL Closed-Hole Fuse |
| Terminal Type | Closed-Hole Straight Male Terminal |
| Operating Voltage | 32V / 58V DC |
| Current Range | 20A–120A |
| Installation Type | PAL Terminal Insert / Fixed Type |
| Application | Automotive DC Circuit Protection |
| Typical Circuits | Main Fuse Box / Battery Circuit / Alternator Circuit |
The CZY-FS10 is intended for automotive electrical systems requiring a closed-hole PAL fuse terminal configuration.
Typical applications include:
Because PAL fuses are available with different terminal structures, the physical connection format should always be confirmed before replacement or bulk sourcing.

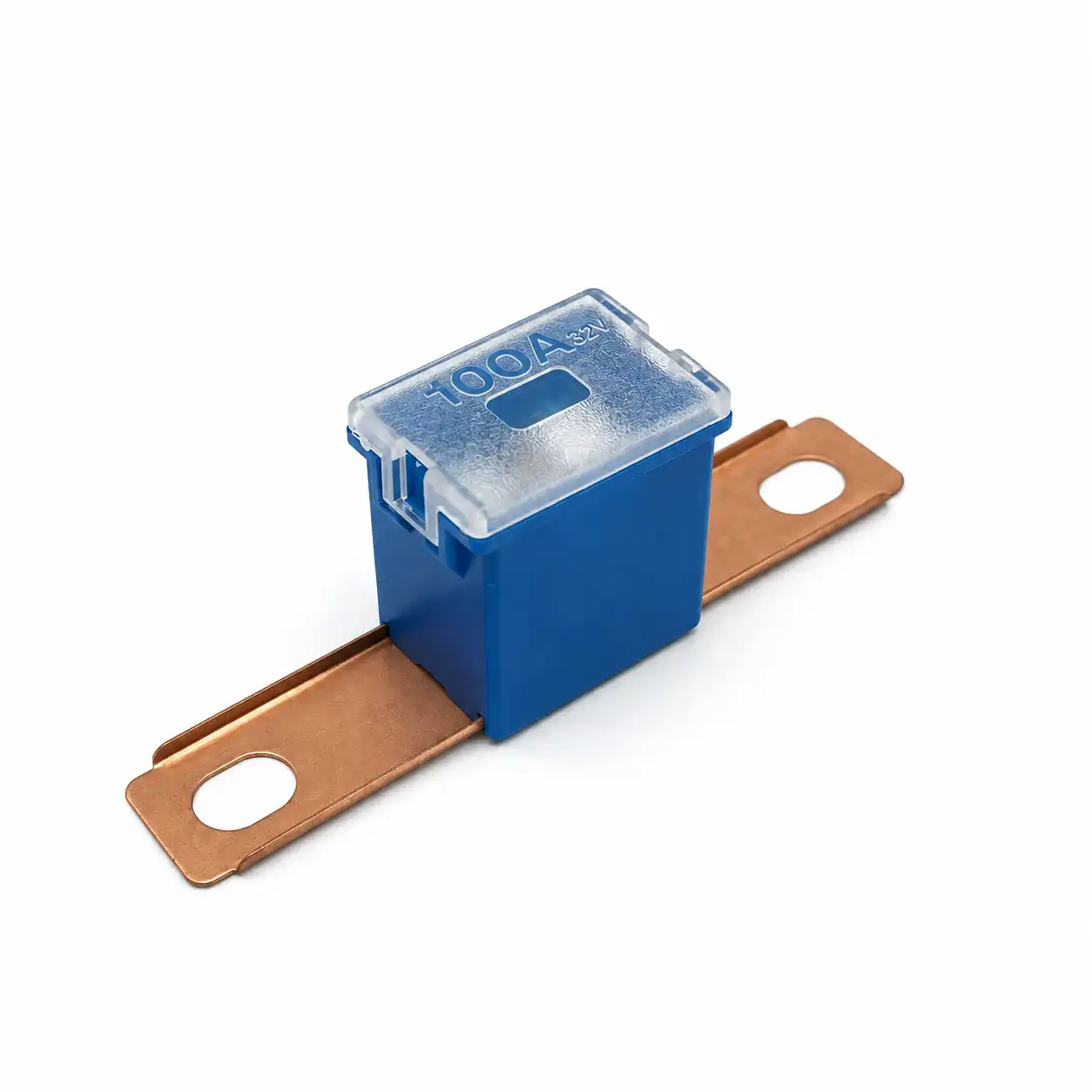

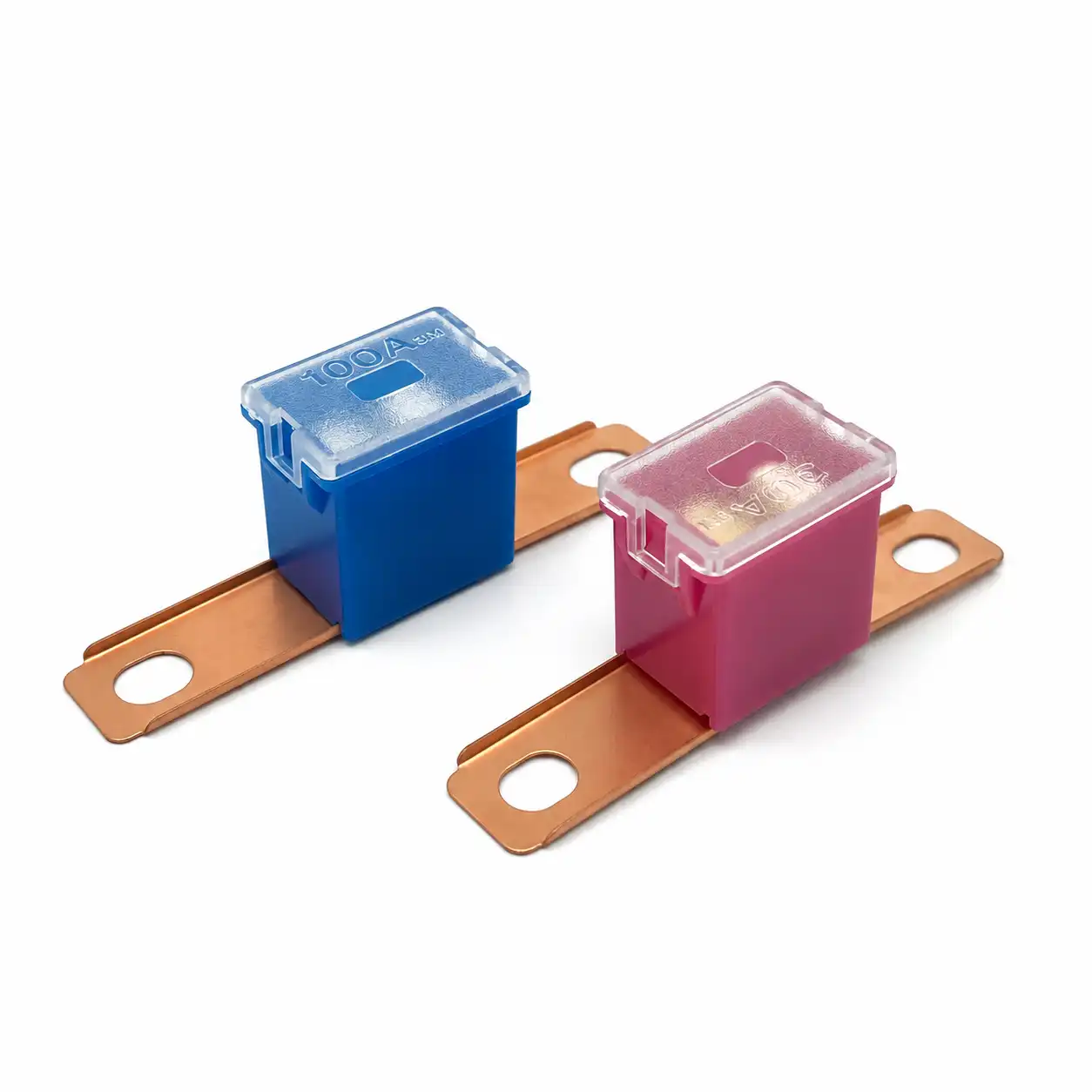

The defining feature of CZY-FS10 is its closed-hole straight male terminal structure.
Each extended metal terminal uses a complete enclosed hole rather than the open fork-shaped end found on the PAL fork-blade version.
This makes terminal identification important when selecting a replacement fuse.
A PAL fuse with the same current rating should not automatically be considered interchangeable if its terminal geometry is different.
For example:
The required terminal type should match the original fuse position or approved vehicle electrical design.
When selecting a PAL closed-hole fuse, confirm the following points:
Verify that the application requires a closed-hole straight male PAL terminal.
Select the required current rating according to the vehicle or circuit specification. Do not determine the fuse rating from body color alone.
Confirm that the fuse is suitable for the required 32V or 58V DC automotive system.
The terminal dimensions and connection format should match the intended fuse box or electrical assembly.
For replacement applications, compare the original fuse structure and electrical specification before installation.
PAL automotive fuses can use different terminal configurations.
The CZY-FS10 uses complete closed-hole terminals, while the CZY-FS09 uses open fork-blade terminals.
The two products may serve similar automotive circuit-protection functions, but their terminal structures are different.
For this reason, buyers should verify:
before selecting a PAL fuse.
Cozy Electronics supports OEM and customized supply for automotive fuse projects.
Available customization can include:
For OEM, distributor and wholesale projects, product specifications and packaging requirements can be confirmed before production.
A PAL closed-hole fuse is an automotive fuse with extended straight male terminals that use complete enclosed holes rather than open fork-shaped ends.
CZY-FS10 is designed for 32V / 58V DC automotive electrical systems.
The confirmed current range is 20A–120A.
No. The terminal structures are different. The closed-hole version uses complete holes in the terminals, while the fork-blade version uses open-ended fork-shaped terminals.
Fuse color should not be used as the only method of identifying current rating. Confirm the product marking and specification.
Cozy Electronics supplies PAL automotive fuses and other circuit-protection components for OEM, distribution and customized electrical projects.
For PAL closed-hole fuse specifications, packaging requirements or bulk supply inquiries, contact Cozy Electronics for product and technical information.
