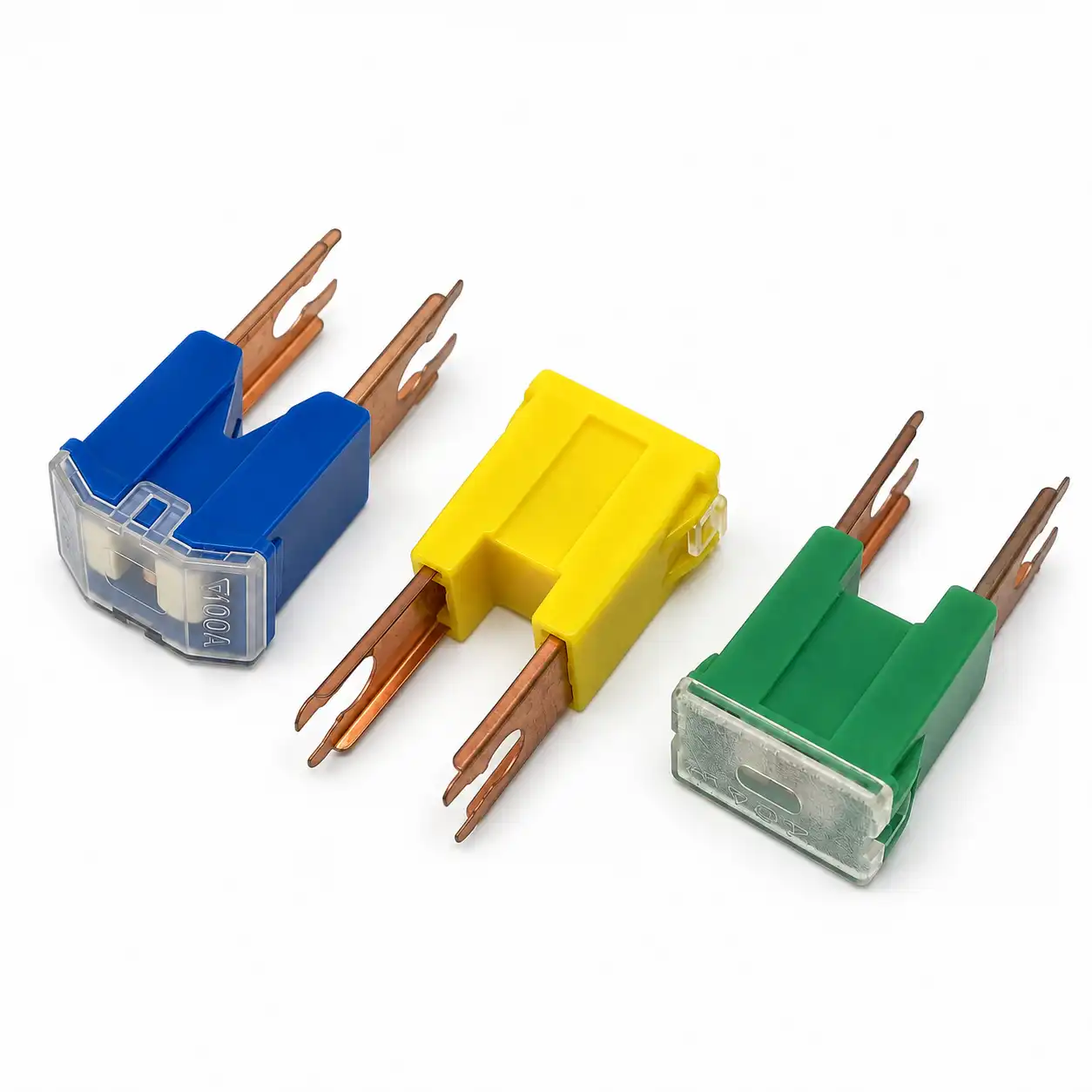

PAL fork blade fuse designed for 32V/58V DC automotive circuit protection.
CZY-FS09 features straight male fork terminals with a 20A–120A current range for compatible vehicle fuse boxes, battery circuits and alternator-related applications.
B2B inquiries are normally answered within one business day.
The CZY-FS09 PAL Fork Blade Fuse is an automotive fuse designed for vehicle electrical circuits that use a PAL-style straight male terminal connection.
Its two extended fork-blade male terminals provide the distinctive connection format used in compatible automotive fuse boxes and power circuits. The fuse is available for 32V and 58V DC systems, with a 20A–120A current range to support different vehicle circuit protection requirements.
This fuse is suitable for automotive applications including main fuse boxes, battery circuits and alternator-related circuits where the original electrical system requires this PAL terminal format.
| Item | Specification |
|---|---|
| Product Type | Automotive Fuse |
| Model | CZY-FS09 |
| Fuse Type | PAL Fork Blade Fuse |
| Terminal Type | Fork-Blade Straight Male Terminal |
| Operating Voltage | 32V / 58V DC |
| Current Range | 20A–120A |
| Installation Type | PAL Terminal Insert / Fixed Type |
| Application | Automotive DC Circuit Protection |
| Typical Circuits | Main Fuse Box / Battery Circuit / Alternator Circuit |
The CZY-FS09 PAL fork blade fuse is suitable for automotive electrical systems that require a straight male PAL fuse connection.
Typical applications include:
Because PAL fuse structures can vary, the terminal format, voltage and required current rating should be confirmed before replacement or bulk sourcing.
When selecting a PAL automotive fuse, do not rely on fuse color alone.
The following points should be checked:
A fuse with the same current rating but a different terminal design should not automatically be treated as interchangeable.

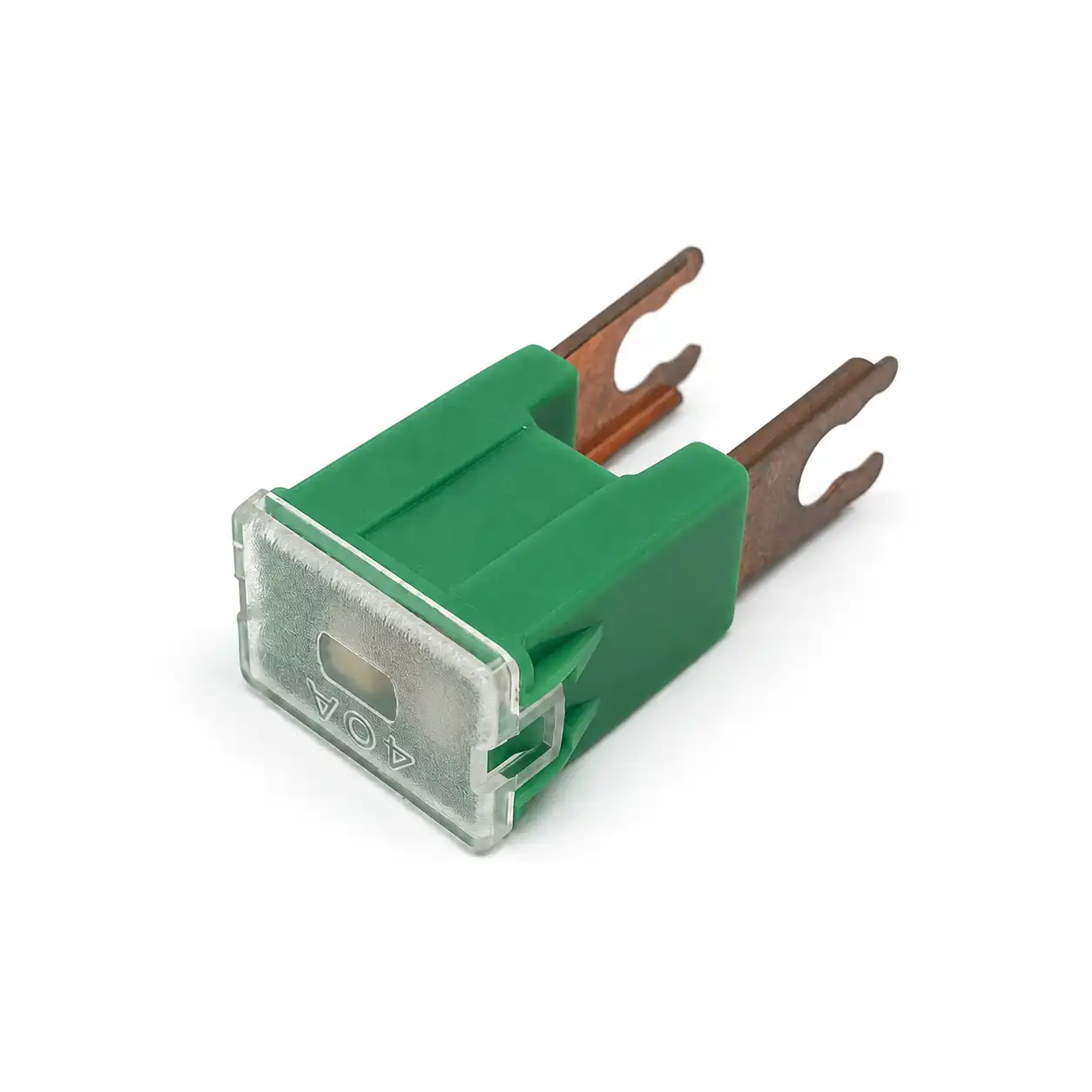

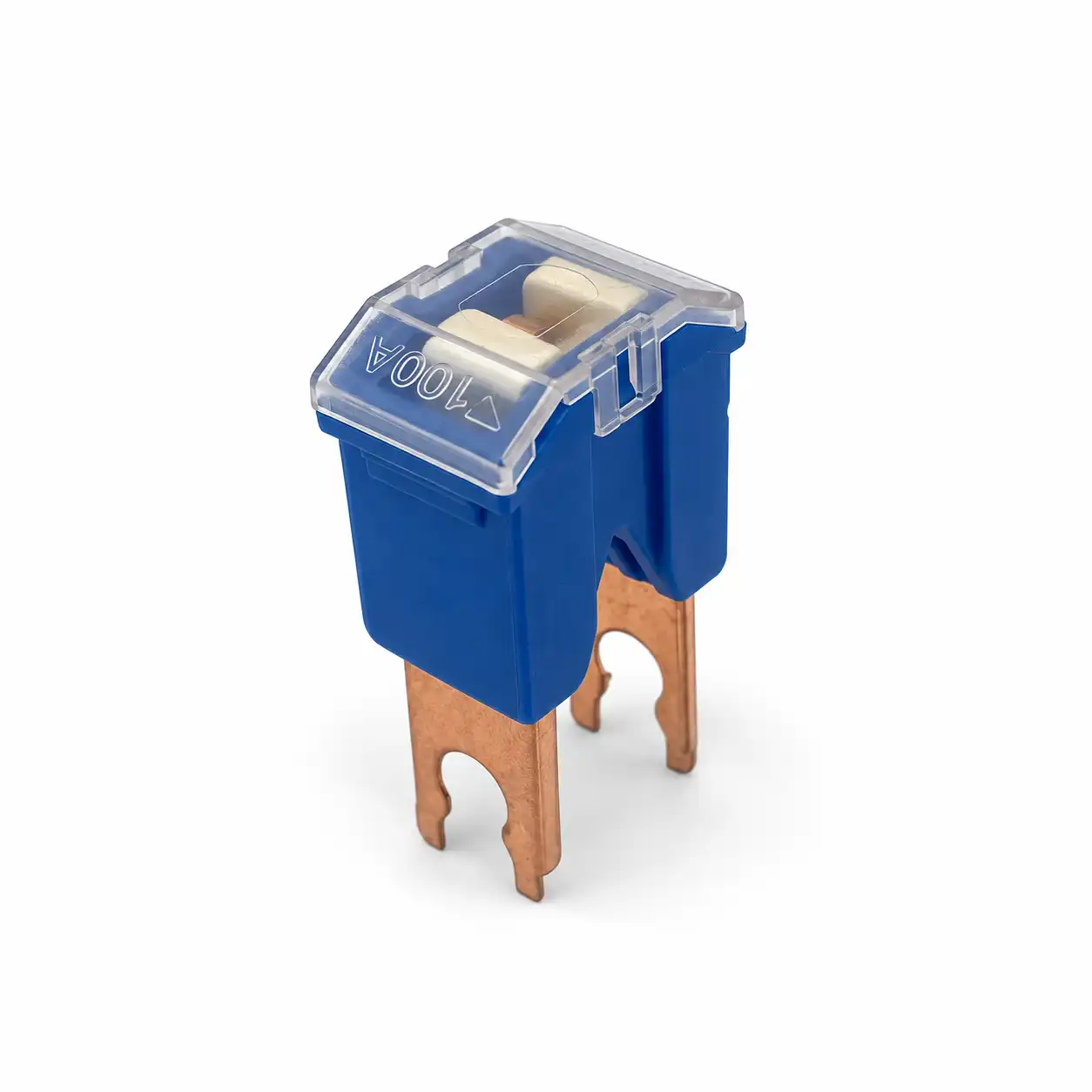

The CZY-FS09 uses two extended straight male terminals with open fork-shaped ends.
This terminal structure distinguishes it from other PAL fuse designs such as closed-hole male terminals, bent male terminals and female-terminal PAL fuses.
For replacement applications, matching the physical terminal structure is therefore as important as matching the electrical rating.
Cozy Electronics supports OEM and customized supply for automotive fuse projects.
Available customization can include:
For distributors and OEM buyers, product specifications and packaging requirements can be confirmed before production.
A PAL fork blade fuse is an automotive fuse with extended straight male terminals featuring open fork-shaped ends. It is used in compatible vehicle fuse boxes and power circuits.
CZY-FS09 is designed for 32V / 58V DC automotive systems.
The confirmed current range for CZY-FS09 is 20A to 120A.
No. The terminal structures are different. A fork-blade terminal has an open end, while a closed-hole terminal uses a complete hole in the metal terminal. The correct structure should be matched to the original application.
Fuse color should not be used as the only method of identifying current rating. Confirm the actual product marking and specification.
Cozy Electronics supplies automotive circuit protection components for OEM, distribution and customized electrical projects.
For PAL fork blade fuse specifications, packaging requirements or bulk supply inquiries, contact Cozy Electronics for product and technical information.
