Short-body JCASE fuse designed for 32V automotive circuit protection.
CZY-FS11 features a compact short-body JCASE format and is available in current ratings from 20A to 120A for compatible vehicle fuse boxes and power distribution circuits.
B2B inquiries are normally answered within one business day.

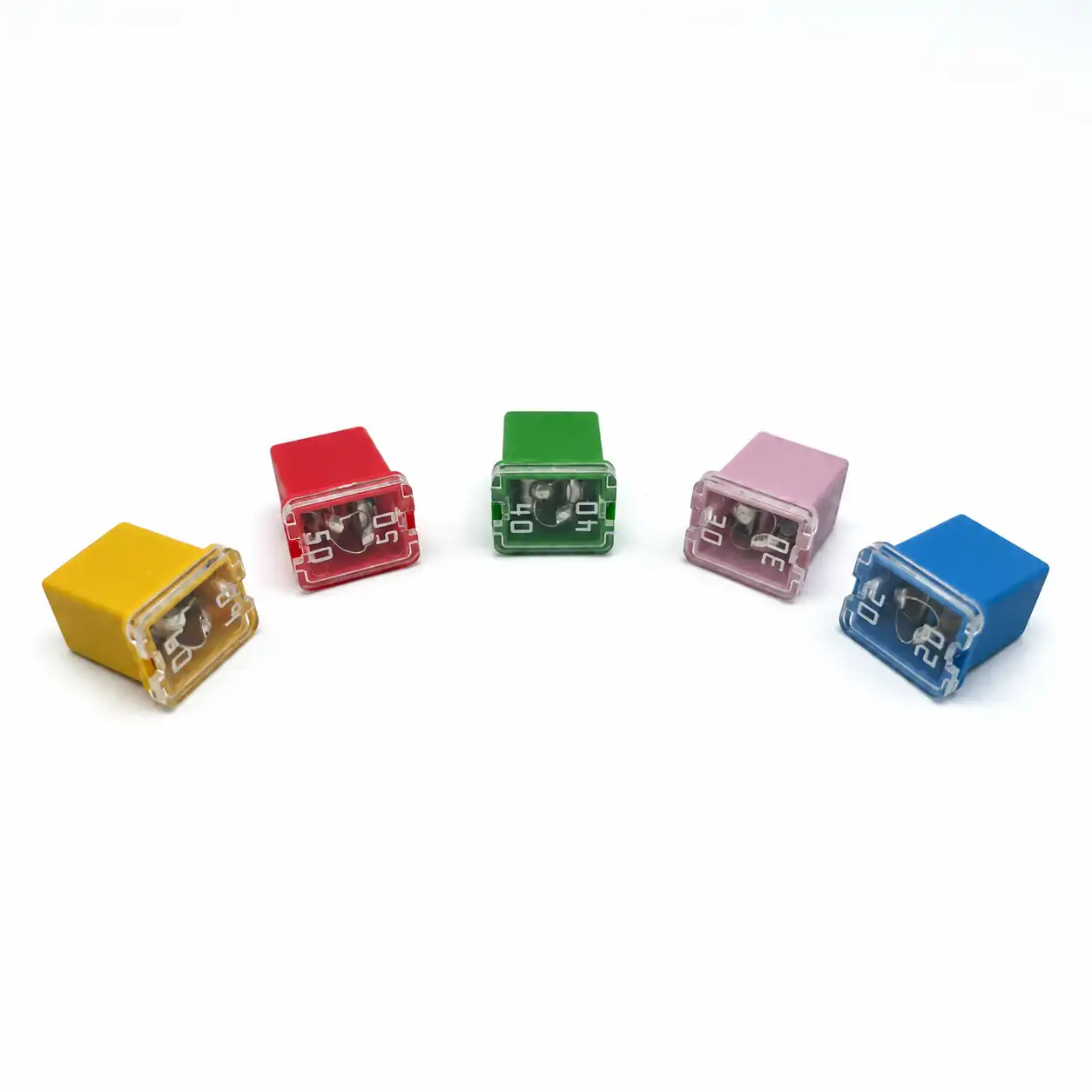

The CZY-FS11 Short-Body JCASE Fuse is a compact automotive cartridge fuse designed for 32V vehicle electrical systems.
This version uses a short-body JCASE format, making it suitable for automotive fuse boxes and electrical assemblies that require this specific compact JCASE structure. It is available in current ratings from 20A to 120A, covering a range of vehicle circuit protection and power distribution requirements.
Because JCASE fuses are available in different body and terminal configurations, the physical fuse format should always be confirmed together with the required current and voltage rating before replacement or bulk sourcing.
| Item | Specification |
|---|---|
| Product Type | Automotive Fuse |
| Model | CZY-FS11 |
| Fuse Type | Short-Body JCASE Fuse |
| Fuse Format | JCASE Cartridge Fuse |
| Body Style | Short Body |
| Rated Voltage | 32V DC |
| Current Ratings | 20A / 30A / 40A / 50A / 60A / 70A / 80A / 90A / 100A / 120A |
| Application | Automotive Circuit Protection |
The CZY-FS11 short-body JCASE fuse is intended for automotive electrical systems that use a compatible JCASE fuse format.
Typical applications include:
The actual application should always be checked against the vehicle or equipment specification before installation.
The defining feature of CZY-FS11 is its short-body JCASE structure.
Compared with taller JCASE fuse versions, this product uses a more compact body format. This makes physical compatibility especially important when selecting a replacement fuse.
A fuse with the same current rating should not automatically be considered interchangeable if the JCASE body format or terminal structure is different.
When sourcing or replacing this fuse, confirm:

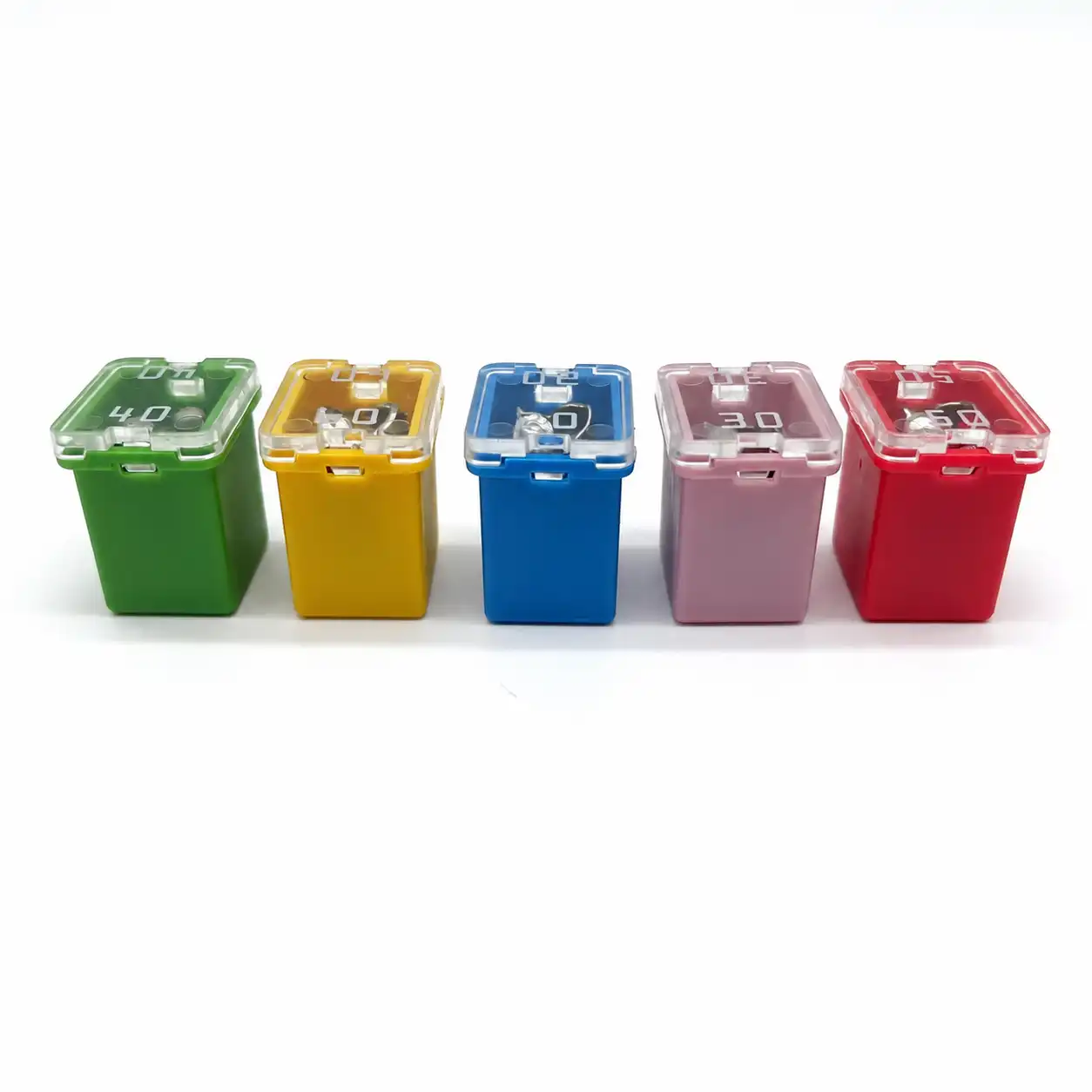

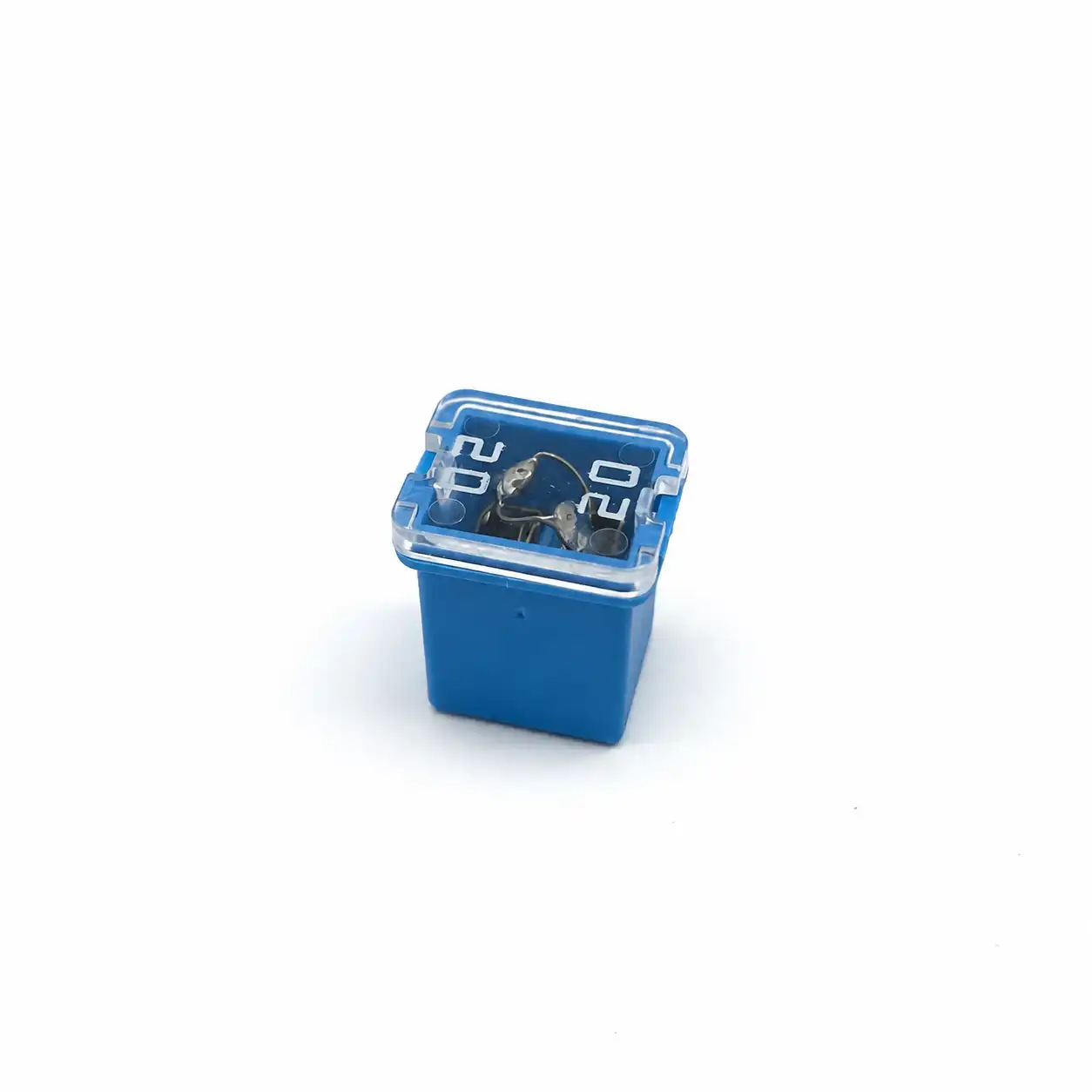

CZY-FS11 is available in the following confirmed current ratings:
20A / 30A / 40A / 50A / 60A / 70A / 80A / 90A / 100A / 120A
The required current rating should be selected according to the original circuit design or vehicle specification.
Do not determine the fuse rating from body color alone.
When selecting a short-body JCASE fuse, check the following factors:
Confirm that the application requires the short-body JCASE structure rather than another JCASE version.
Use the specified fuse rating for the intended circuit. A higher-current fuse should not be substituted simply because it fits physically.
CZY-FS11 is rated for 32V DC automotive applications.
Verify that the physical fuse body and connection format match the intended fuse box or electrical assembly.
JCASE fuses may be produced in different body configurations, including short-body, standard-height and other application-specific structures.
For this reason, buyers should not identify a replacement fuse only by its current marking.
The following should be compared together:
This helps avoid selecting a fuse that has the correct amperage but the wrong physical format.
Cozy Electronics supports OEM and customized supply for automotive fuse projects.
Available packaging options can include:
Product marking and packaging requirements can be discussed based on the project.
A short-body JCASE fuse is a compact automotive cartridge fuse using a shorter JCASE body format for compatible vehicle fuse boxes and electrical circuits.
CZY-FS11 is rated for 32V DC automotive electrical systems.
The confirmed ratings are:
20A, 30A, 40A, 50A, 60A, 70A, 80A, 90A, 100A and 120A.
Not necessarily. JCASE fuses can use different body formats. The physical fuse structure should be checked before replacement.
Fuse color should not be used as the only method of identifying the current rating. Always confirm the product marking and specification.
Cozy Electronics supplies JCASE fuses and other automotive circuit protection components for OEM, distribution and customized electrical projects.
For short-body JCASE fuse specifications, packaging requirements or bulk supply inquiries, contact Cozy Electronics for product and technical information.
