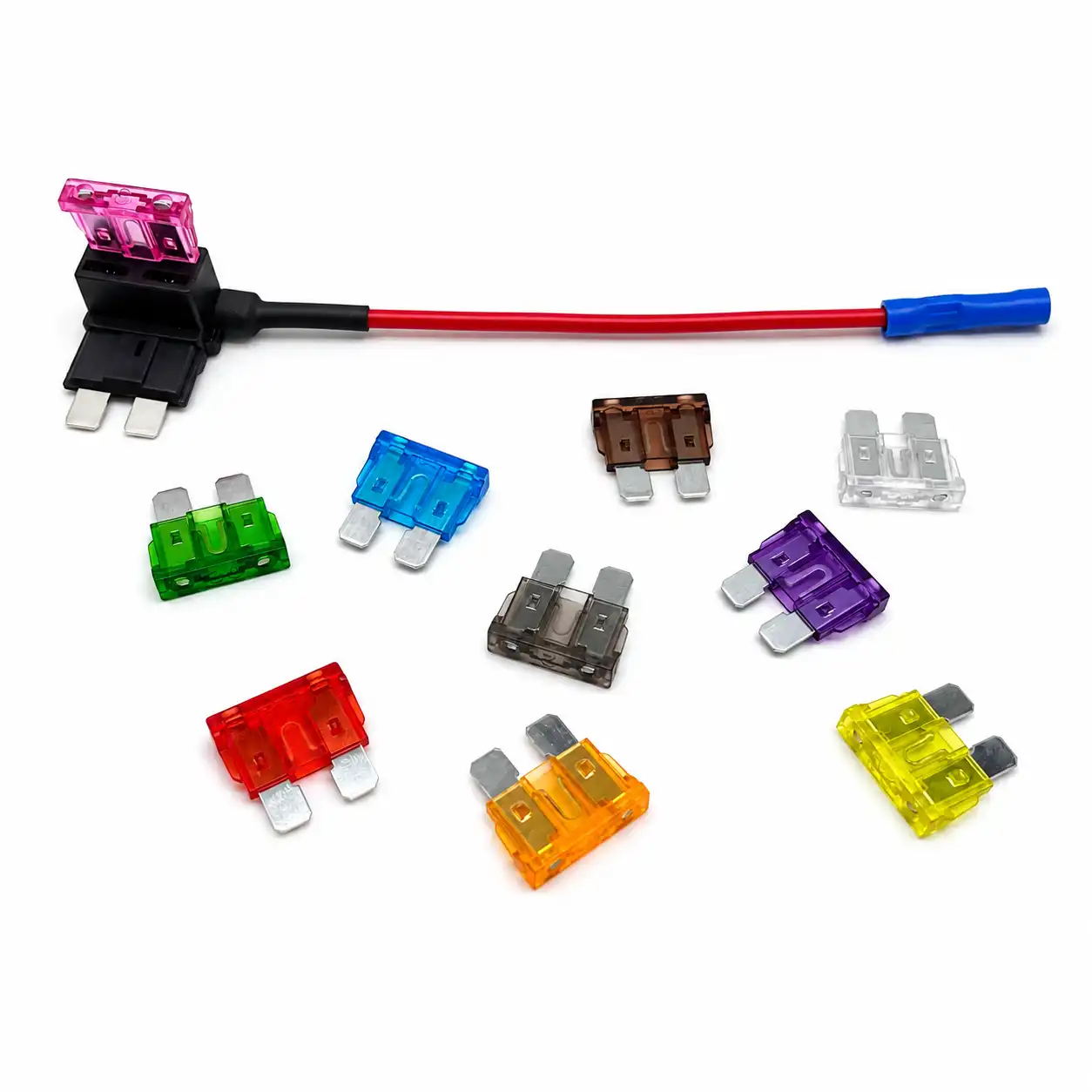

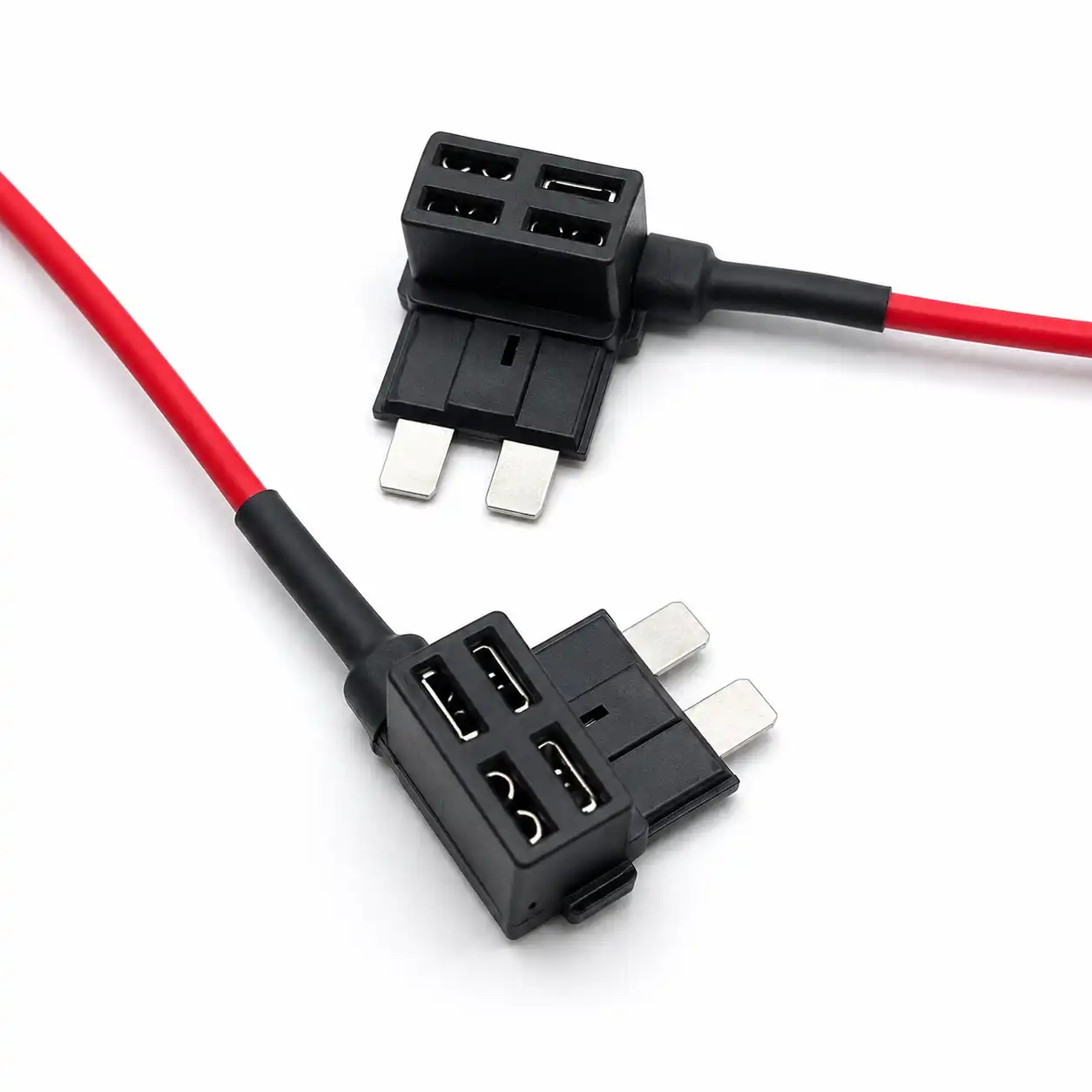

The Standard ATC Add-a-Circuit Fuse Tap is designed to add an accessory circuit through an existing automotive fuse panel without cutting the original vehicle wiring.
Designed for standard ATC/ATO blade fuse applications from 1A to 40A at 32V DC, it features a durable nylon housing and zinc alloy conductive terminals.
Wire gauge and wire length can be customized for different automotive wiring and OEM assembly requirements.
B2B inquiries are normally answered within one business day.
The Standard ATC Fuse Tap is designed to add an additional accessory circuit through an existing automotive fuse panel without cutting or modifying the vehicle’s original wiring.
Designed for standard ATC/ATO blade fuse applications, it is suitable for dash cameras, GPS devices, navigation systems, LED equipment, and other automotive electrical accessories.

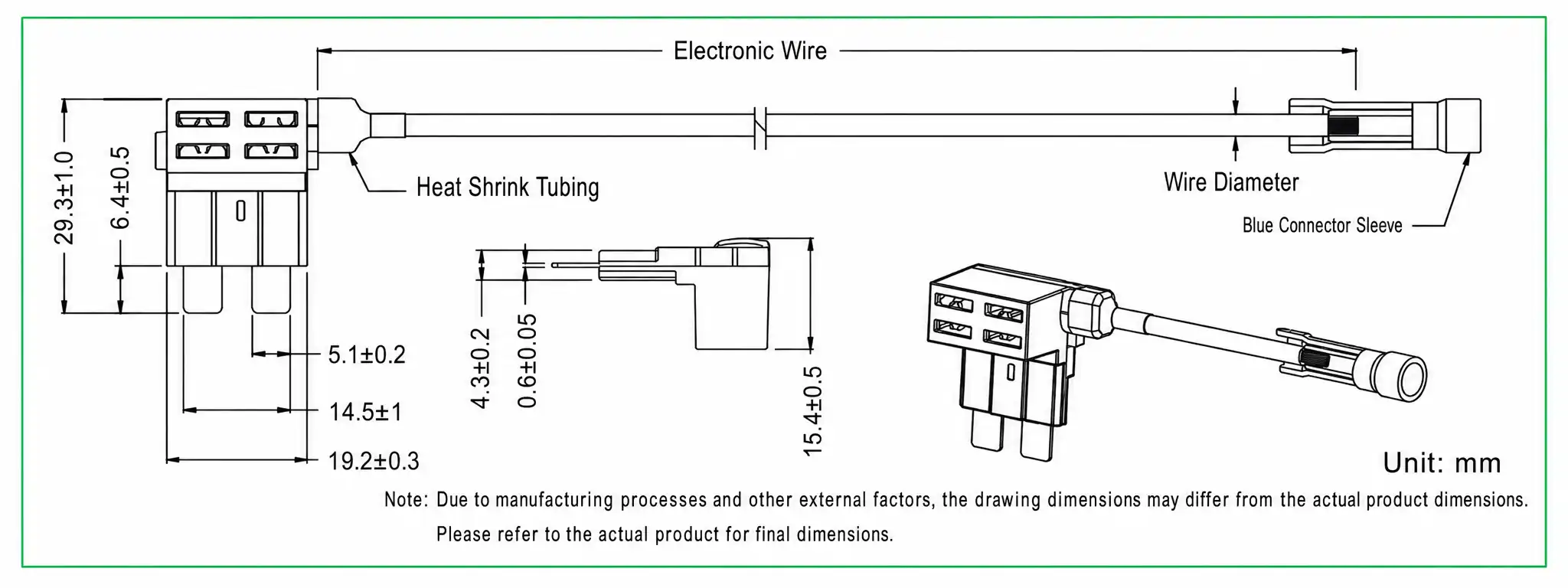

| Specification | Value |
|---|---|
| Product Type | Standard Add-a-Circuit Fuse Tap |
| Model | CZY-FT01 |
| Product Code | To be assigned |
| Fuse Type | Standard ATC / ATO Blade Fuse |
| Voltage | 32V DC |
| Fuse Rating Range | 1A–40A |
| Standard Fuse Ratings | 1A / 2A / 3A / 4A / 5A / 7.5A / 10A / 15A / 20A / 25A / 30A / 35A / 40A |
| Housing Material | Nylon |
| Conductive Terminal Material | Zinc Alloy |
| Wire Type | UL1015 / UL1007 |
| Wire Gauge | Customizable |
| Wire Length | Customizable |
| Application | Automotive accessory circuits |
| Certification | N/A |
Standard ATC fuse ratings of 1–40A and 32VDC are consistent with Eaton’s published Standard ATC series; Littelfuse lists the same principal amperage steps for its ATO standard blade fuse family.
The Standard Add-a-Circuit Fuse Tap is suitable for adding electrical accessory circuits in vehicles, including:

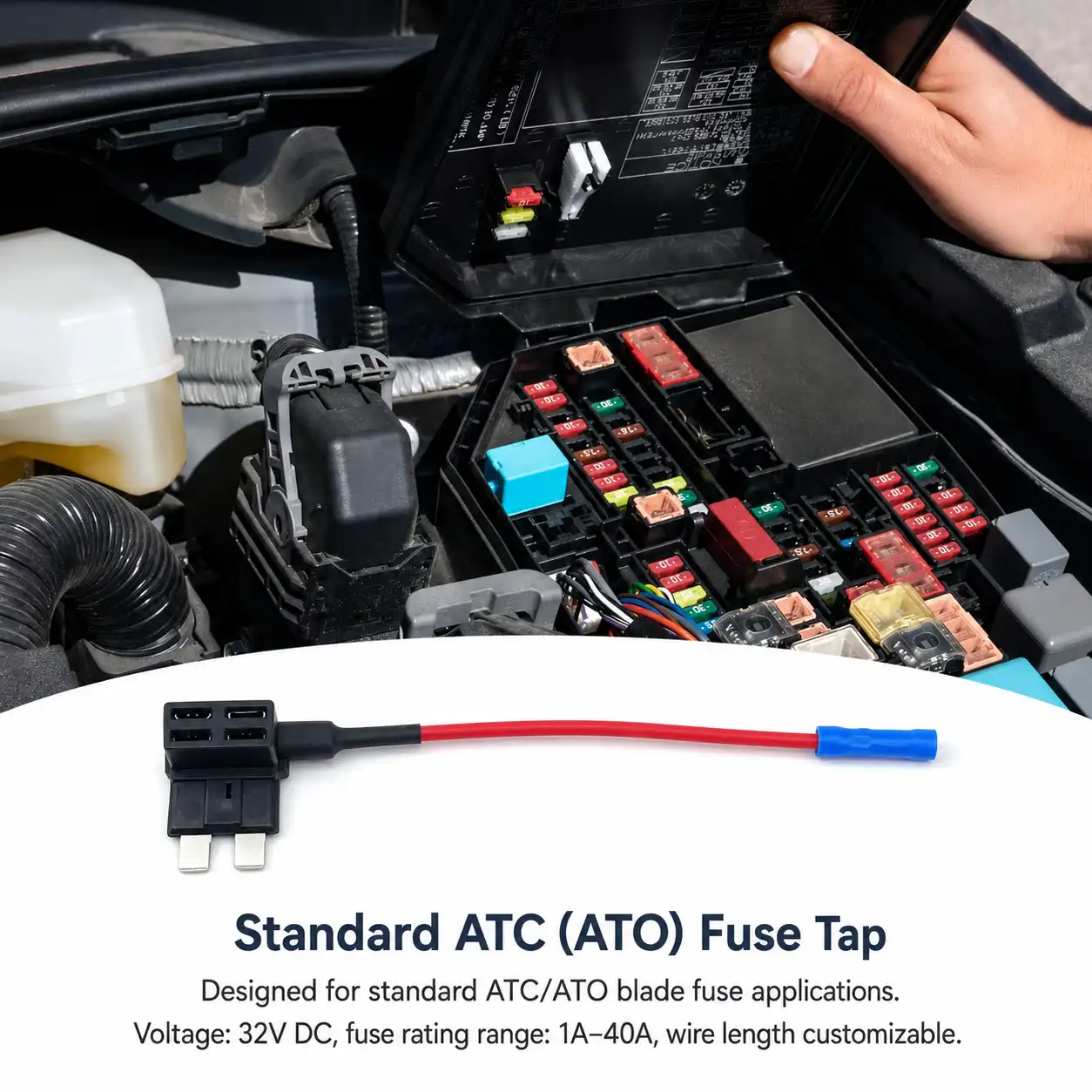

It allows a new accessory connection to be added through the existing fuse panel while retaining the original vehicle wiring.

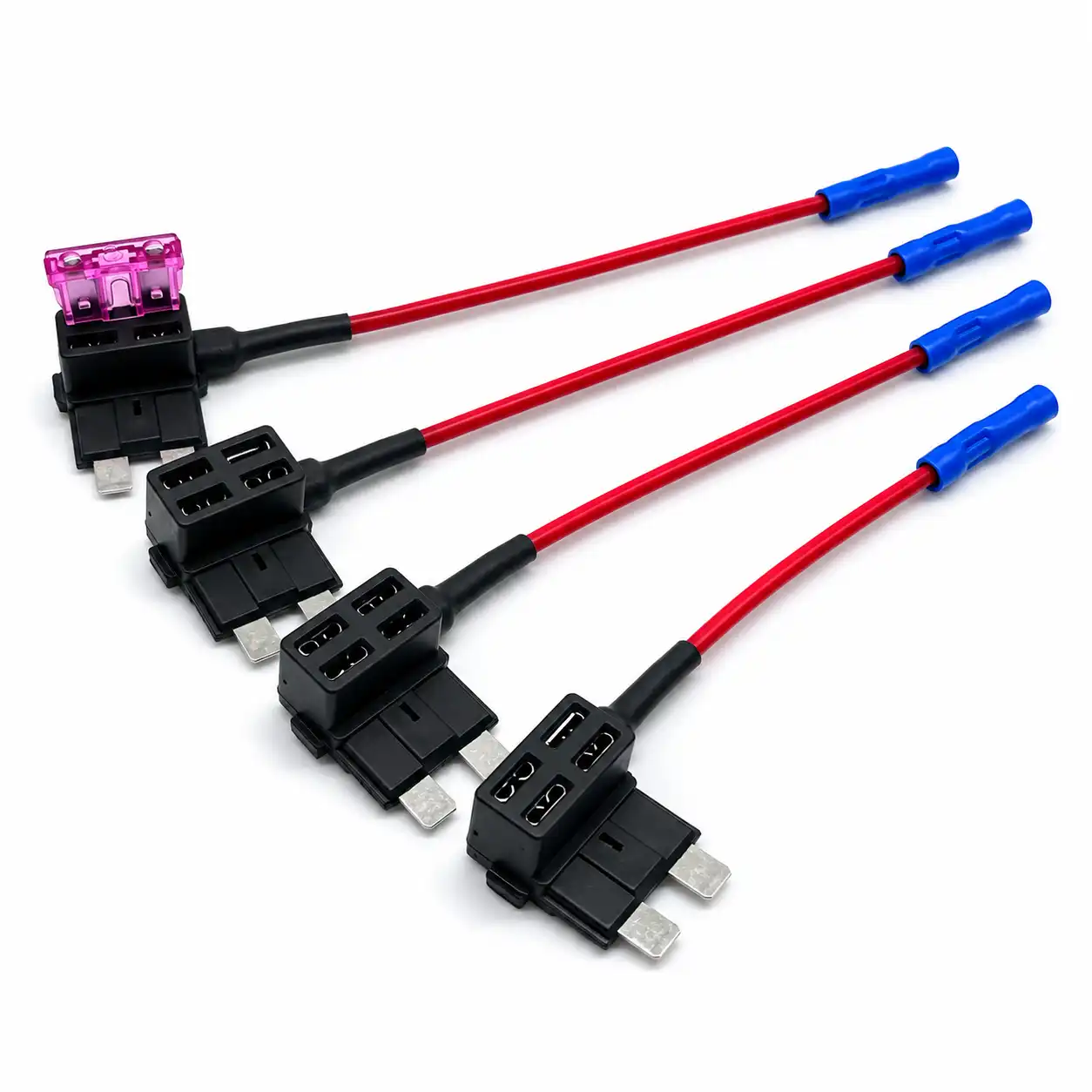

Wire gauge and wire length can be customized according to customer requirements.
Different wire specifications and assembly configurations can be supplied according to the required installation space, wiring arrangement, and application.
