Single MRBF Fuse Holder – Battery Terminal Fuse Block

Single MRBF Fuse Holder – Compact High-Current Battery Circuit Protection

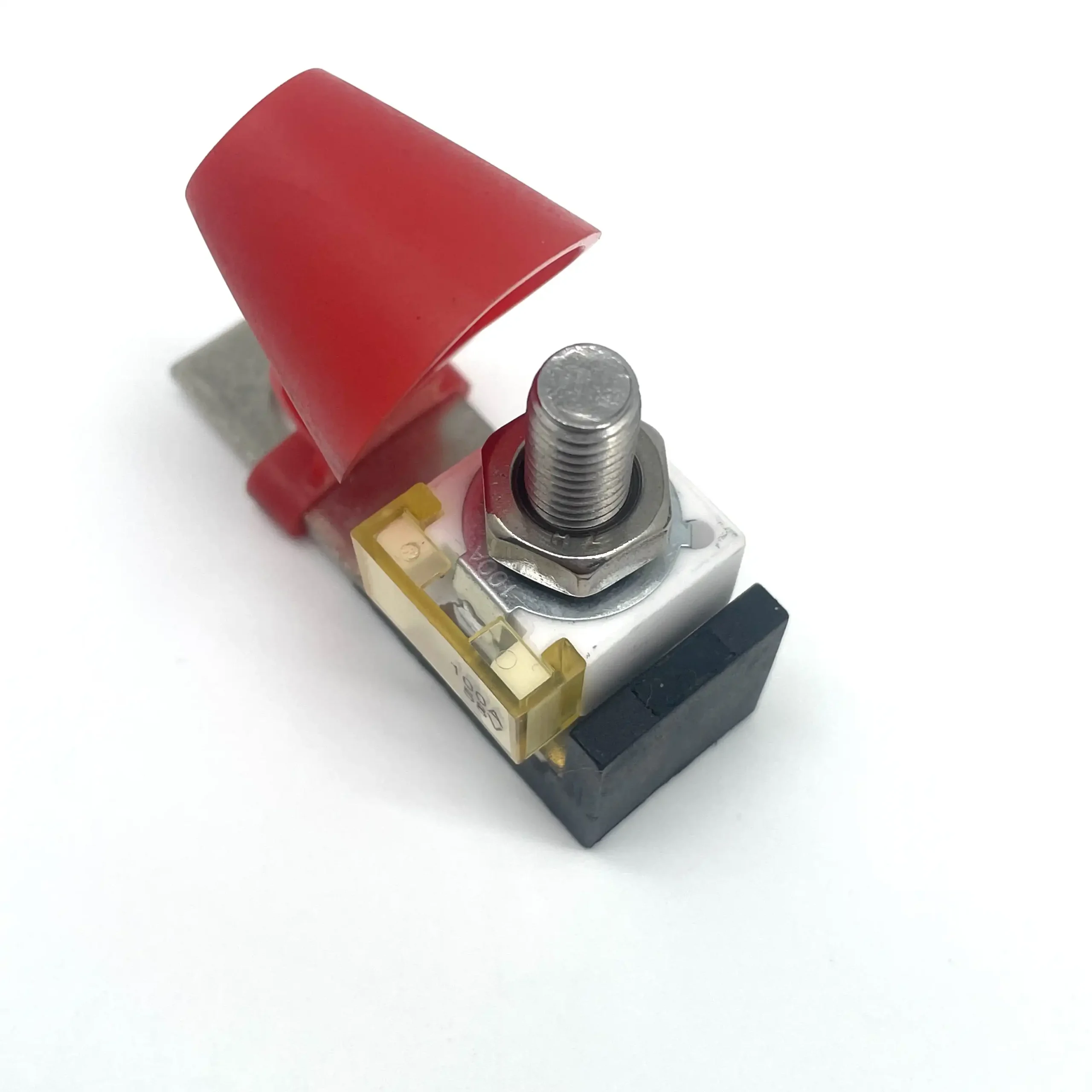

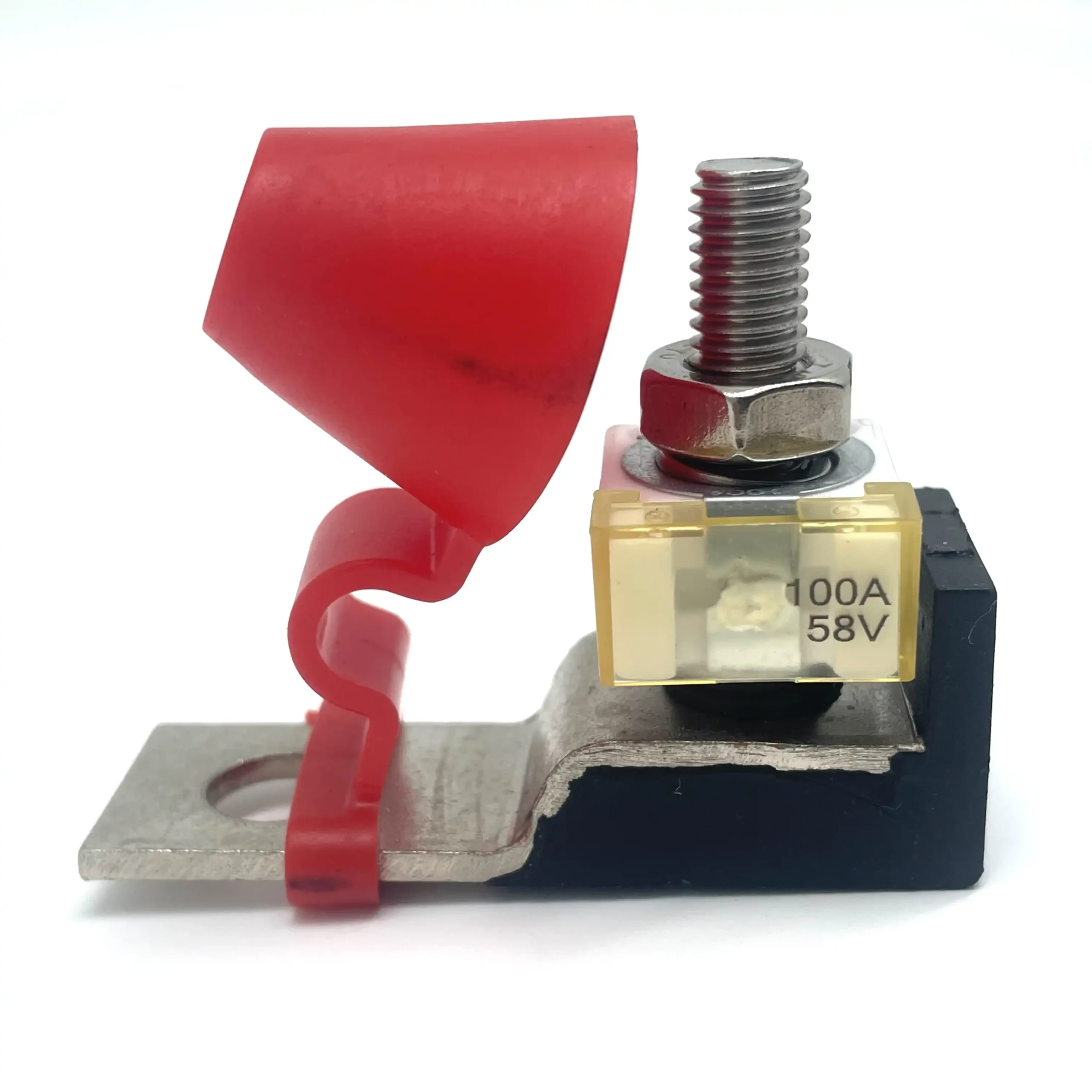

The Single MRBF Fuse Holder, model CZY-FH04, is a compact stud-mount fuse holder designed for high-current battery and DC power distribution applications. It features one MRBF fuse position and is suitable for 58V DC applications with a maximum application current of 300A. The compact structure makes it suitable for automotive battery systems, auxiliary power circuits, power distribution assemblies, RV electrical systems, marine DC systems, and other high-current applications where installation space is limited.

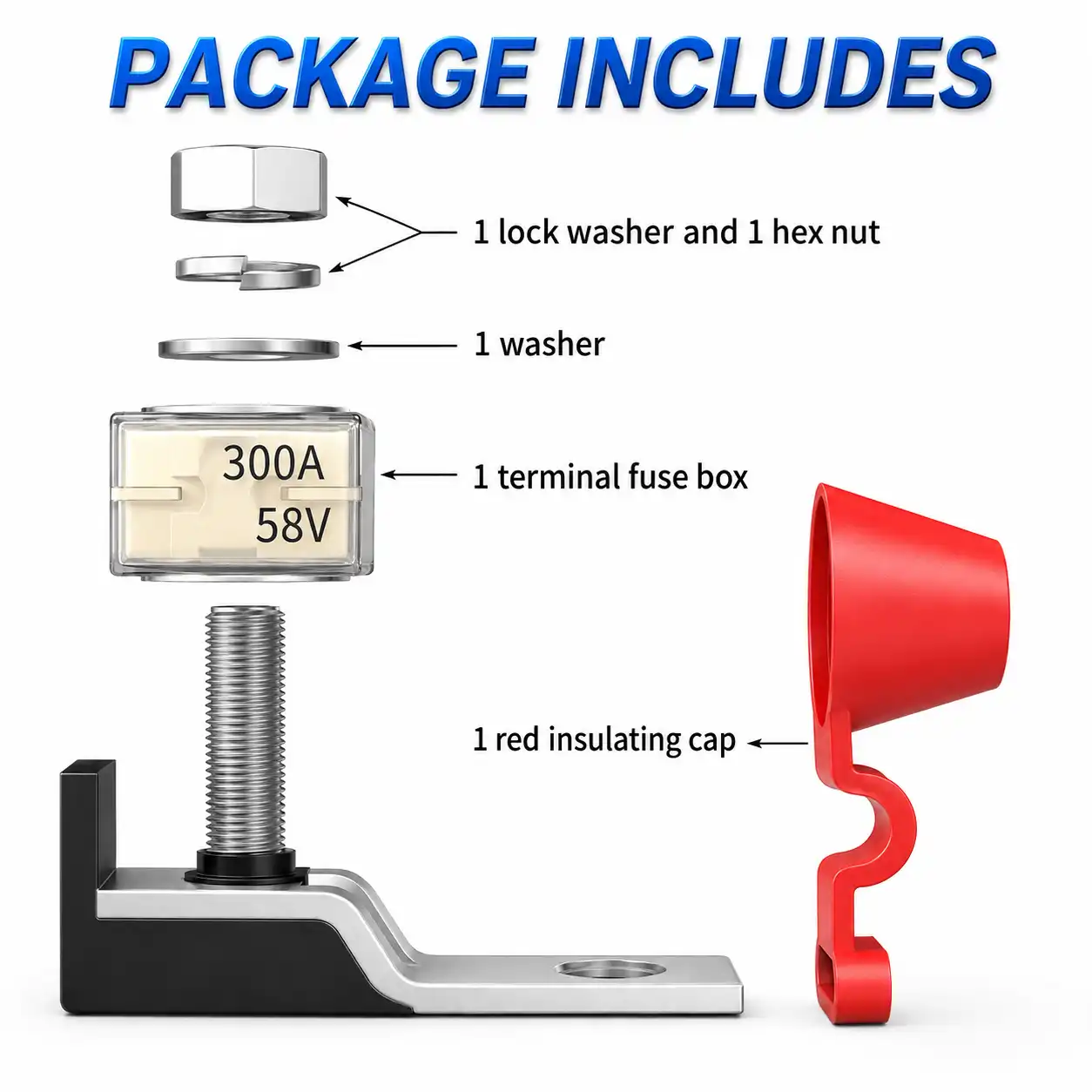

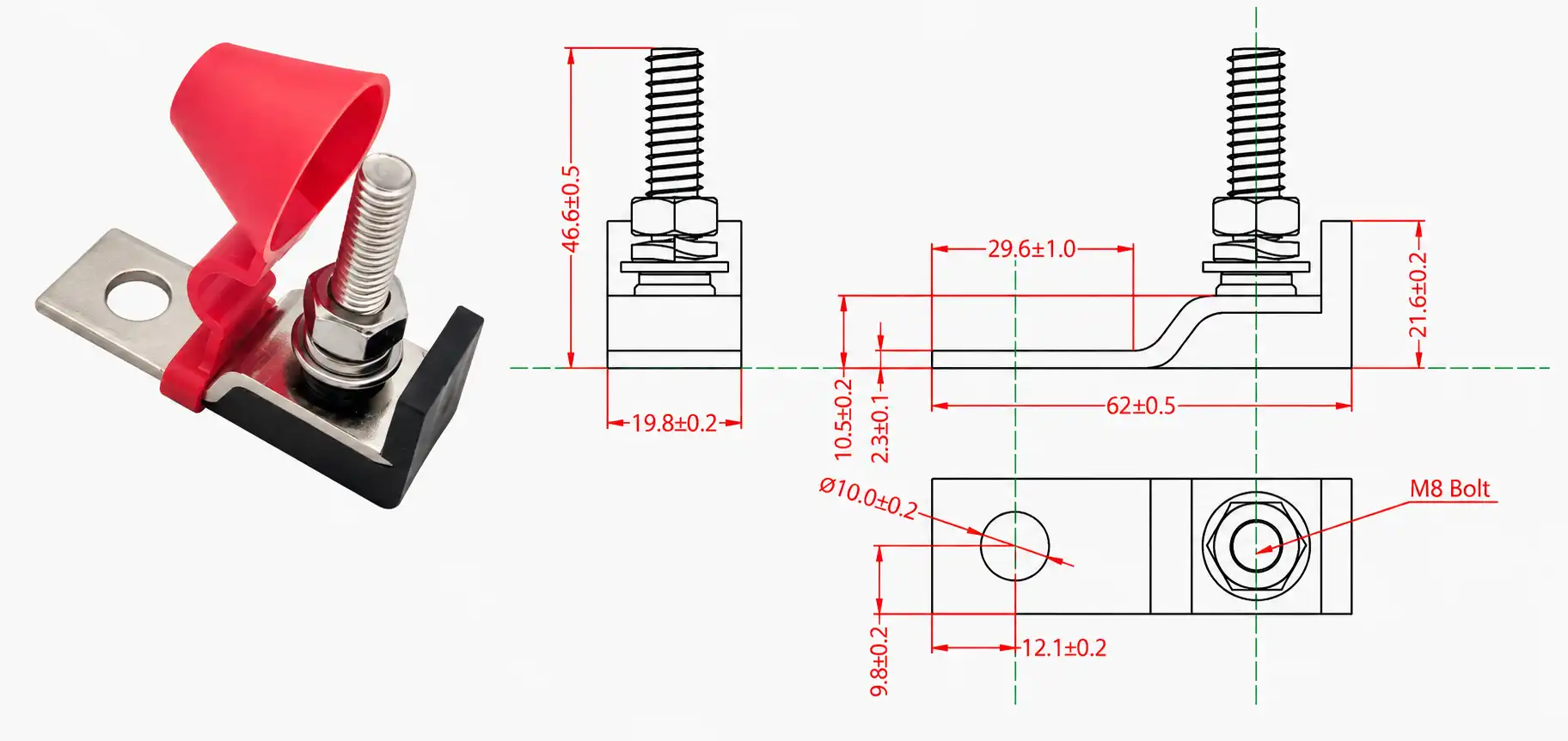

The holder is constructed with a PBS body and a nickel-plated copper current-carrying plate to provide reliable electrical conductivity. The stud and nut are made from stainless steel, and the M8 stud connection provides a secure mechanical and electrical connection for high-current installations. The recommended tightening torque is 12 N·m.

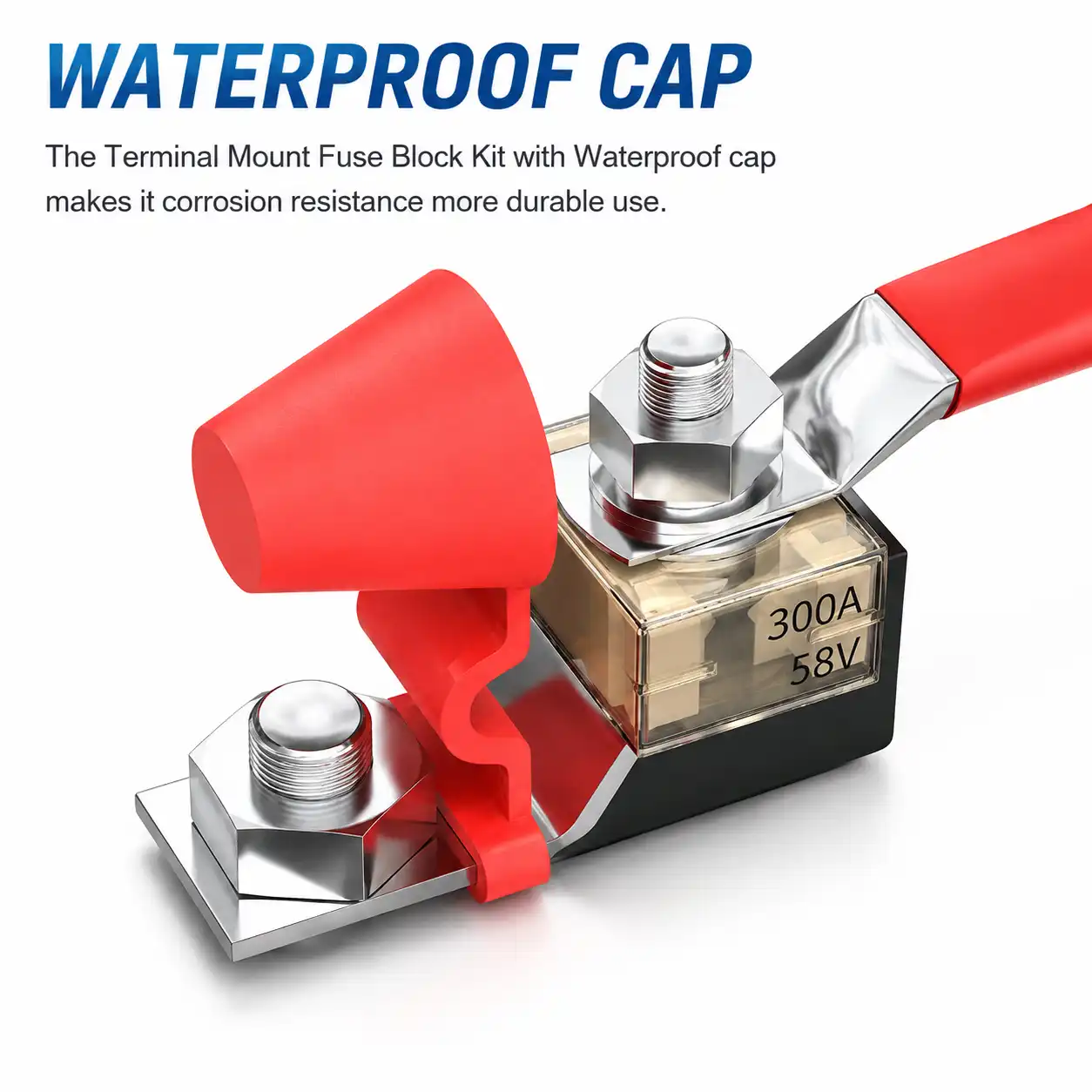

A protective cover is integrated into the holder design to help protect the fuse and connection area from accidental contact and external exposure. The covered structure provides a waterproof design for automotive and other demanding DC electrical environments. The complete holder is also RoHS compliant.

Product Specifications

Applications

The CZY-FH04 MRBF fuse holder is suitable for automotive battery systems, battery terminal circuit protection, DC power distribution, auxiliary power circuits, high-current vehicle wiring, trucks and commercial vehicles, RV electrical systems, marine DC systems, inverter power circuits, and customized power distribution assemblies.

OEM & Customization

OEM and customized assembly options are available according to project requirements. For customized applications, please provide the required fuse rating, installation method, terminal configuration, electrical load, and application details for technical confirmation.
