The Waterproof Standard Blade Fuse Holder is an inline circuit protection solution designed for standard ATO/ATC automotive blade fuses.
Model CZY-FH02 is rated for 32V DC and 30A and features a waterproof protective cover, PVC housing, and tin-plated brass terminals.
Wire color and wire gauge can be selected according to application requirements, while wire length can be customized for automotive wiring harness and OEM assembly projects.
B2B inquiries are normally answered within one business day.

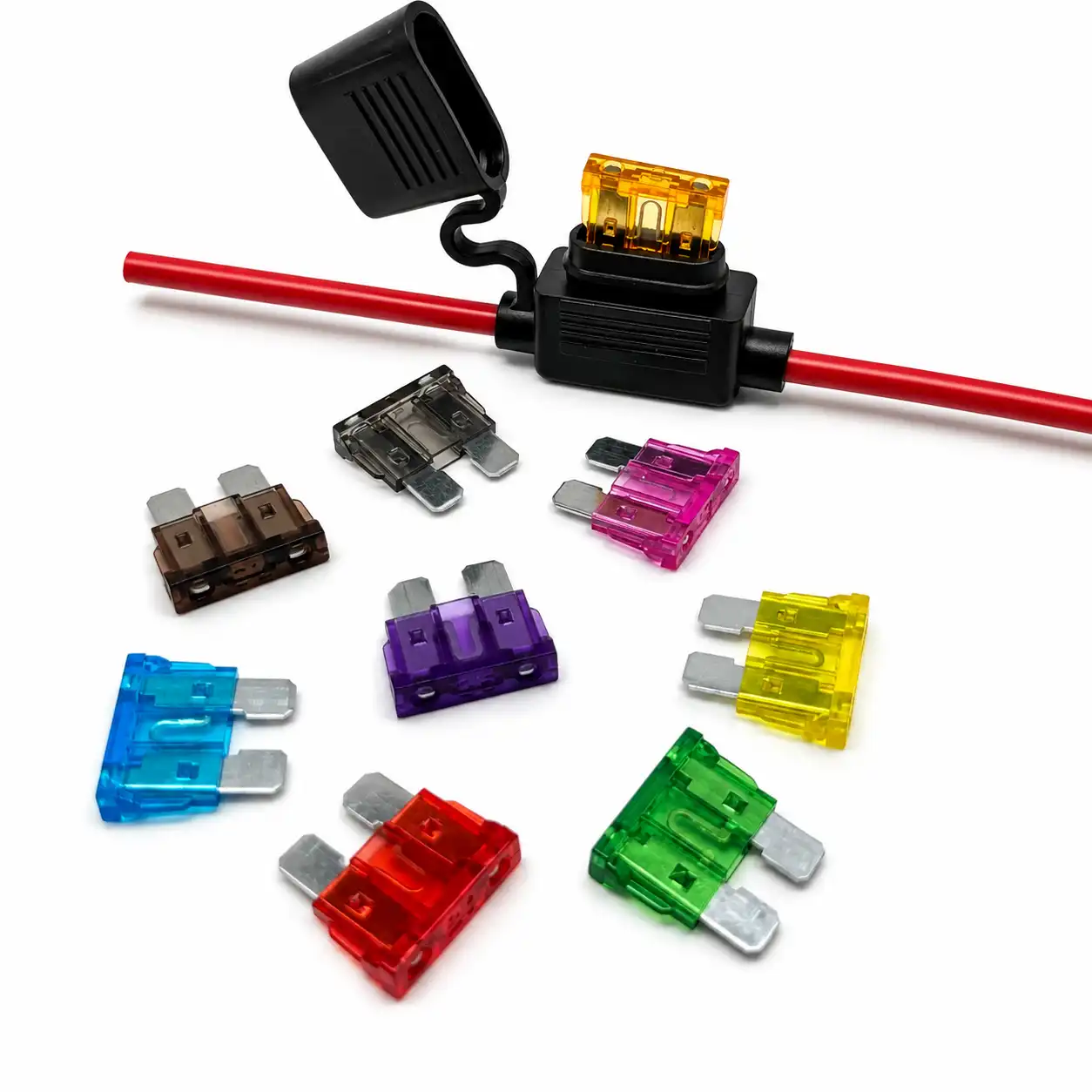

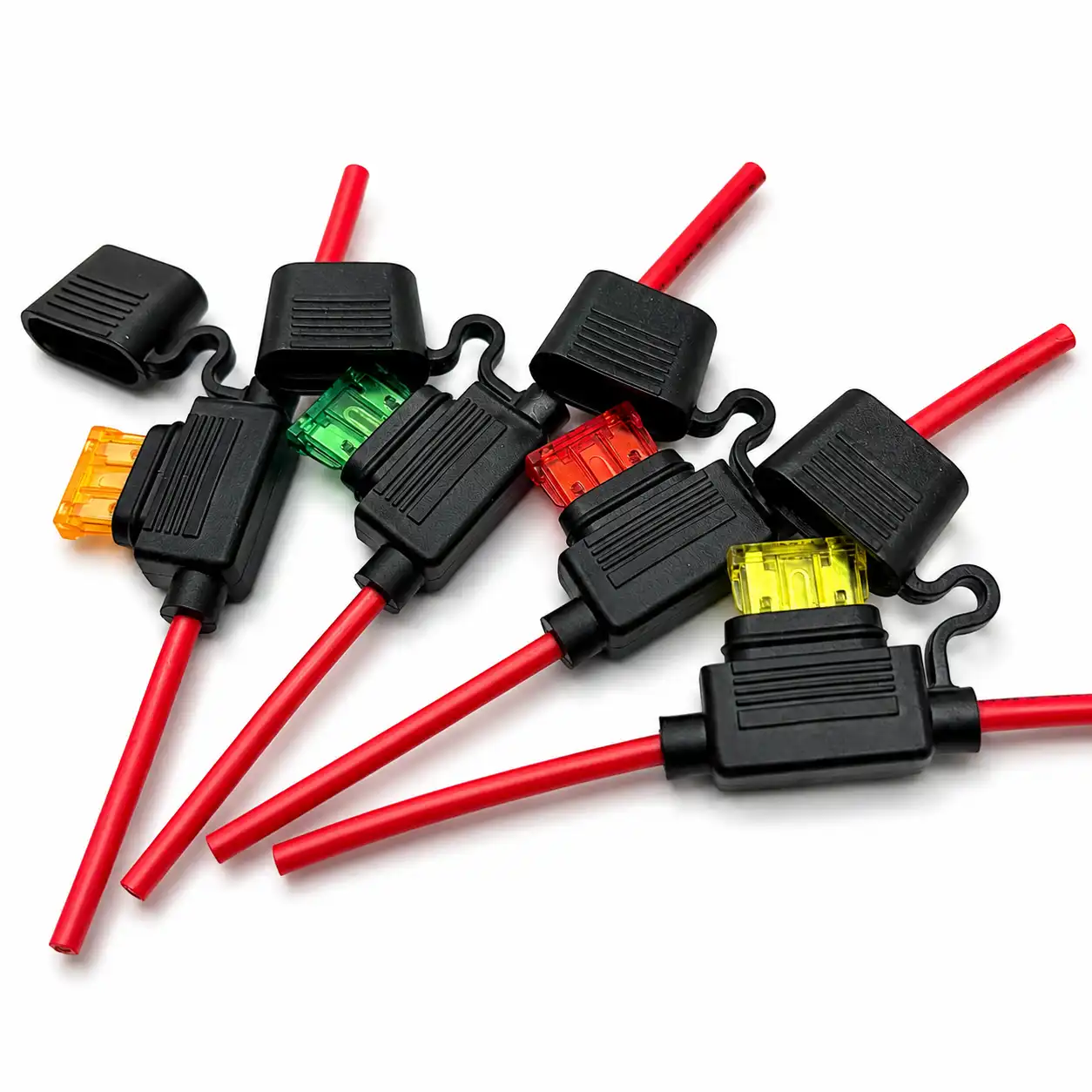

The Waterproof Standard Blade Fuse Holder is an inline circuit protection component designed for standard ATO/ATC automotive blade fuses.
Model CZY-FH02 provides a convenient way to integrate a replaceable fuse directly into automotive and low-voltage wiring without requiring a separate fuse box.

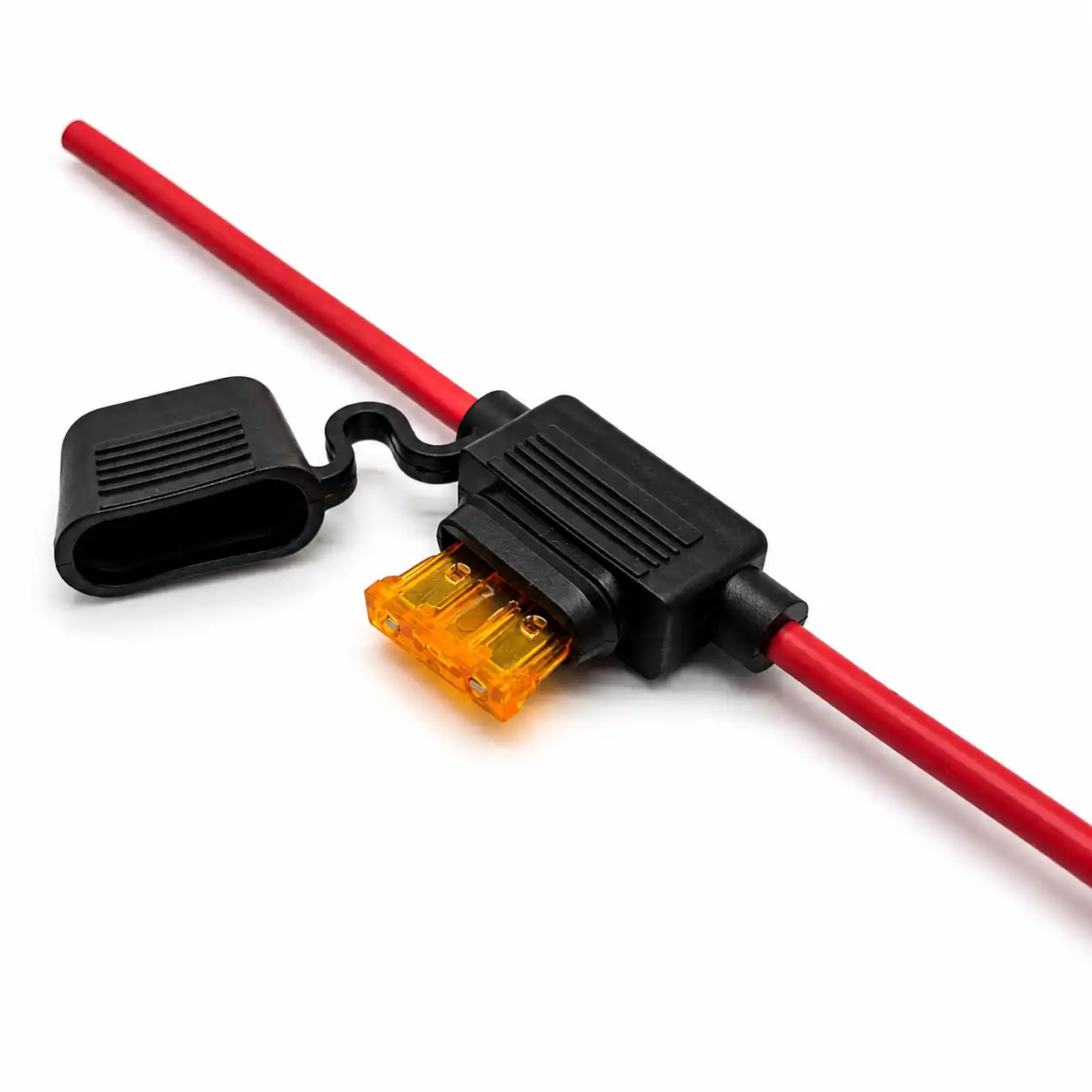

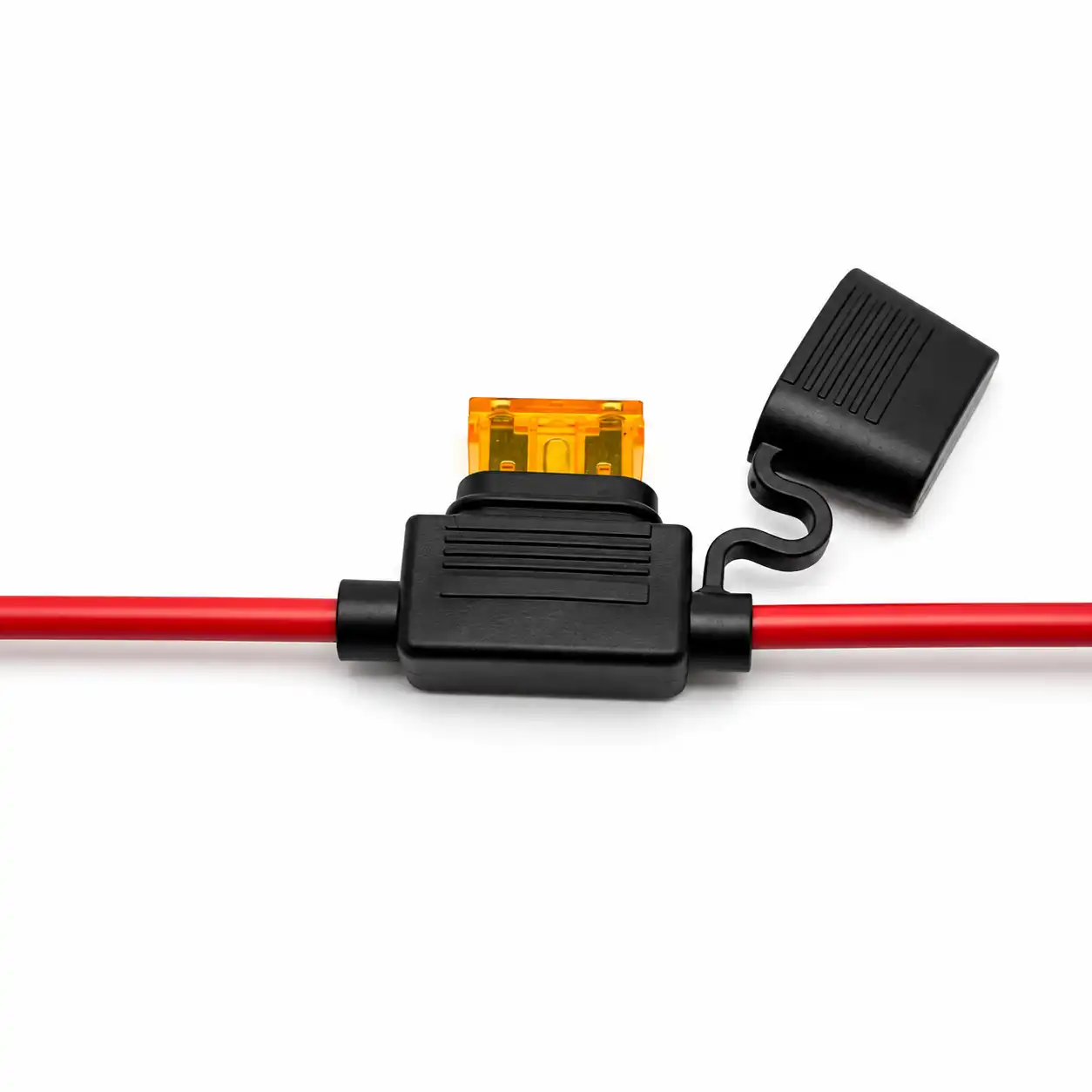

The integrated waterproof protective cover helps protect the installed fuse and terminal connection from moisture, dust, accidental contact, and external interference, making the holder suitable for automotive and other low-voltage wiring environments.
The fuse holder uses a PVC housing with brass conductive terminals and a tin-plated terminal surface. Wire color and wire gauge can be selected according to application requirements, while wire length can be customized for different wiring harness and OEM assembly projects.
CZY-FH02 is rated for 32V DC and 30A under the specified product configuration.
| Specification | Value |
|---|---|
| Product Type | Waterproof Inline Standard Blade Fuse Holder |
| Model | CZY-FH02 |
| Fuse Type | Standard ATO/ATC Blade Fuse |
| Rated Voltage | 32V DC |
| Rated Current | 30A |
| Waterproof Design | Yes |
| Cover Type | Waterproof Protective Cover |
| Housing Material | PVC |
| Terminal Material | Brass |
| Terminal Plating | Tin Plated |
| Wire Gauge | Selectable up to 10 AWG |
| Maximum Wire Size | 10 AWG |
| Wire Length | Customizable |
| Wire Color | Optional |
| Installation Type | Inline |
| Operating Temperature | -5°C to 60°C |
Typical applications include:
The waterproof inline design is suitable for wiring installations where the fuse connection requires additional protection from moisture and external exposure.
Wire color, wire gauge, and wire length can be selected according to project requirements.
Wire configurations up to 12AWG can be used depending on the required current, installation space, and wiring layout.
For OEM projects, Cozy Electronics can support customized wire length, wire color, and assembly configuration according to application requirements.
