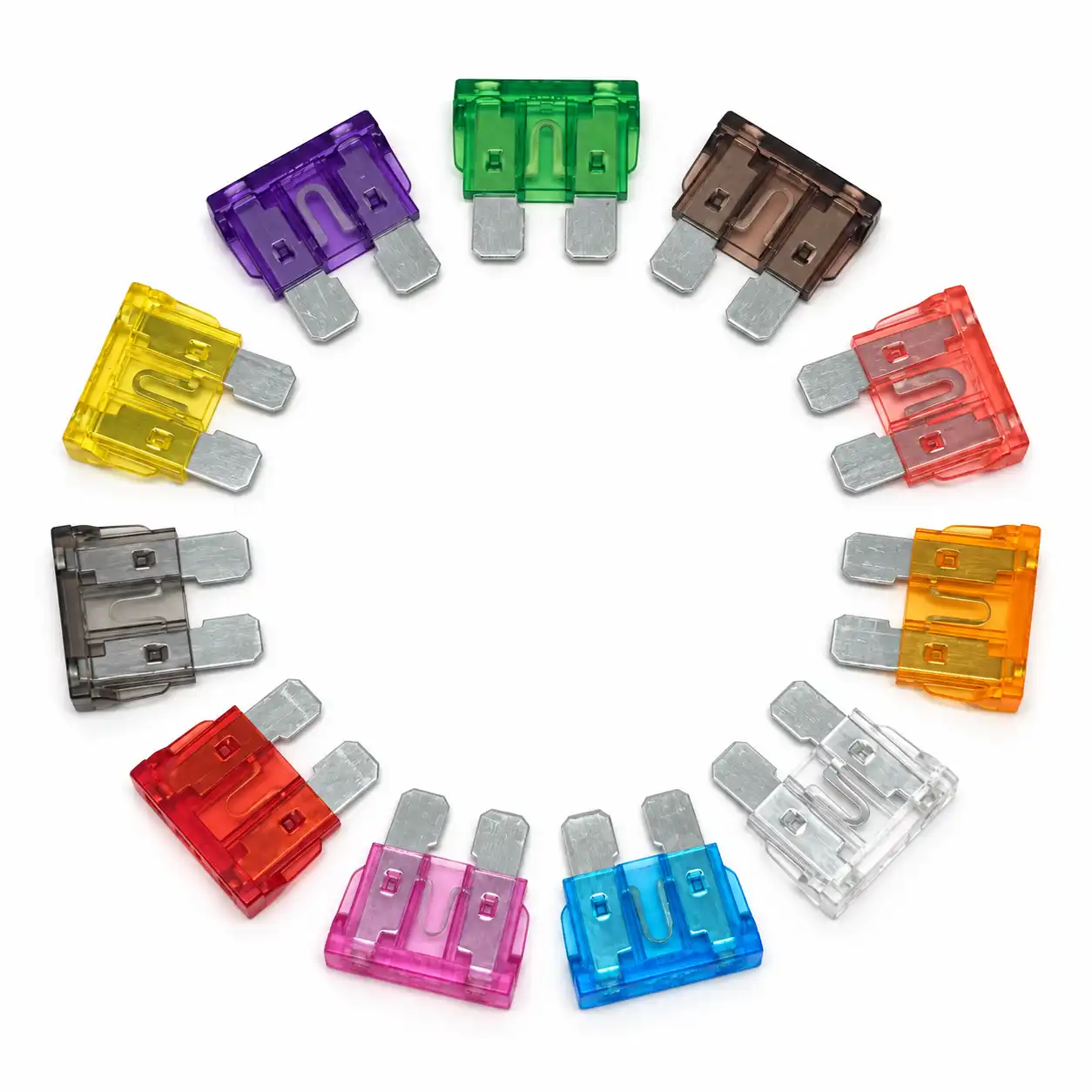

Standard Blade Fuse designed for automotive DC circuit protection applications. CZY-FS05 features a PC plastic body construction and supports multiple current ratings from 1A to 50A for vehicle electrical systems.
B2B inquiries are normally answered within one business day.
The CZY-FS05 Standard Blade Fuse is a widely used automotive fuse designed for DC circuit protection applications.
Also known as an ATC fuse, this standard blade fuse is suitable for automotive electrical systems requiring reliable overcurrent protection and convenient replacement.
Featuring a PC plastic body construction and zinc alloy fuse element, the CZY-FS05 provides stable performance for vehicle fuse boxes, automotive wiring systems and DC electrical applications.
The CZY-FS05 adopts a standard blade fuse format commonly used in automotive electrical systems.
Its practical design allows easy identification, installation and replacement in compatible automotive fuse boxes.

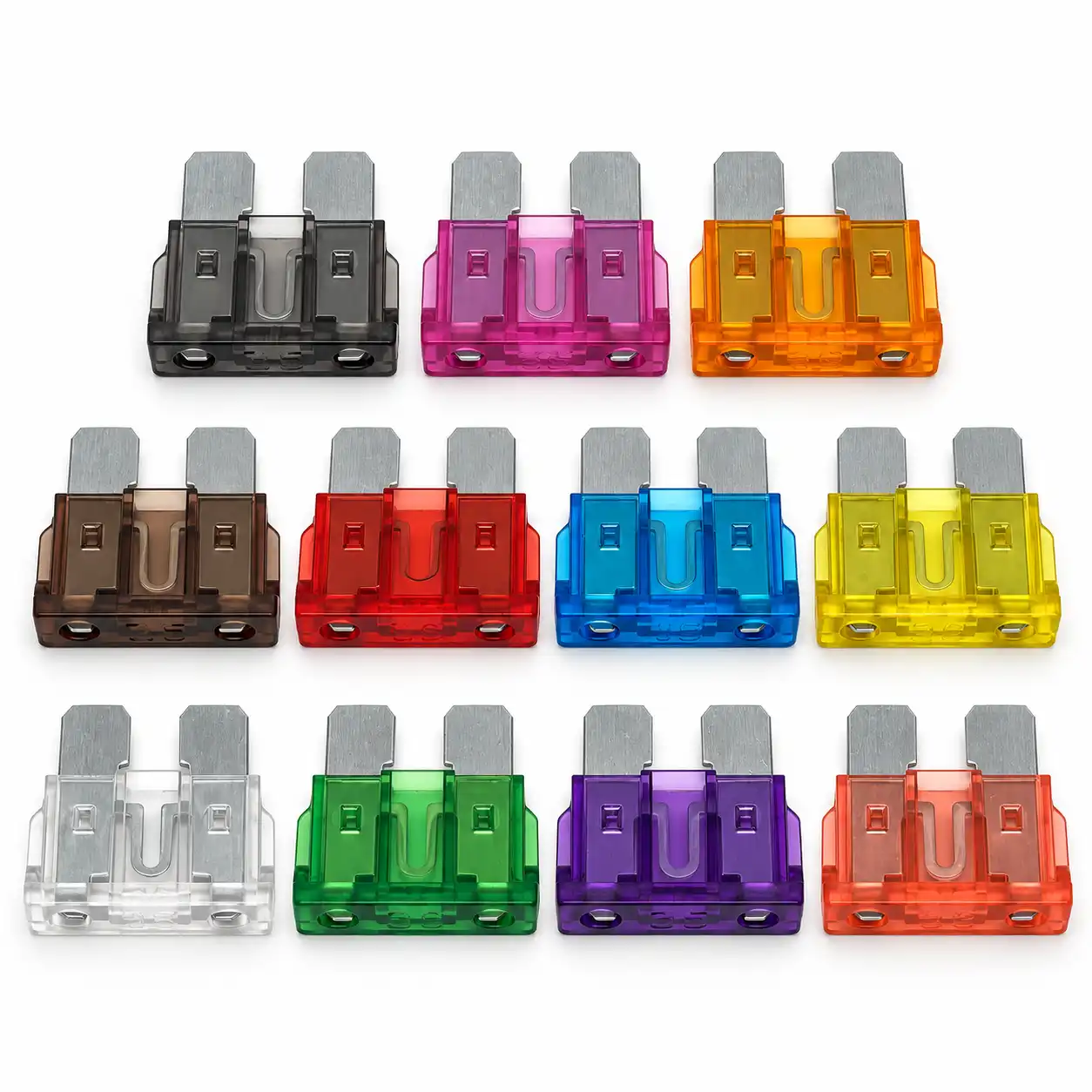

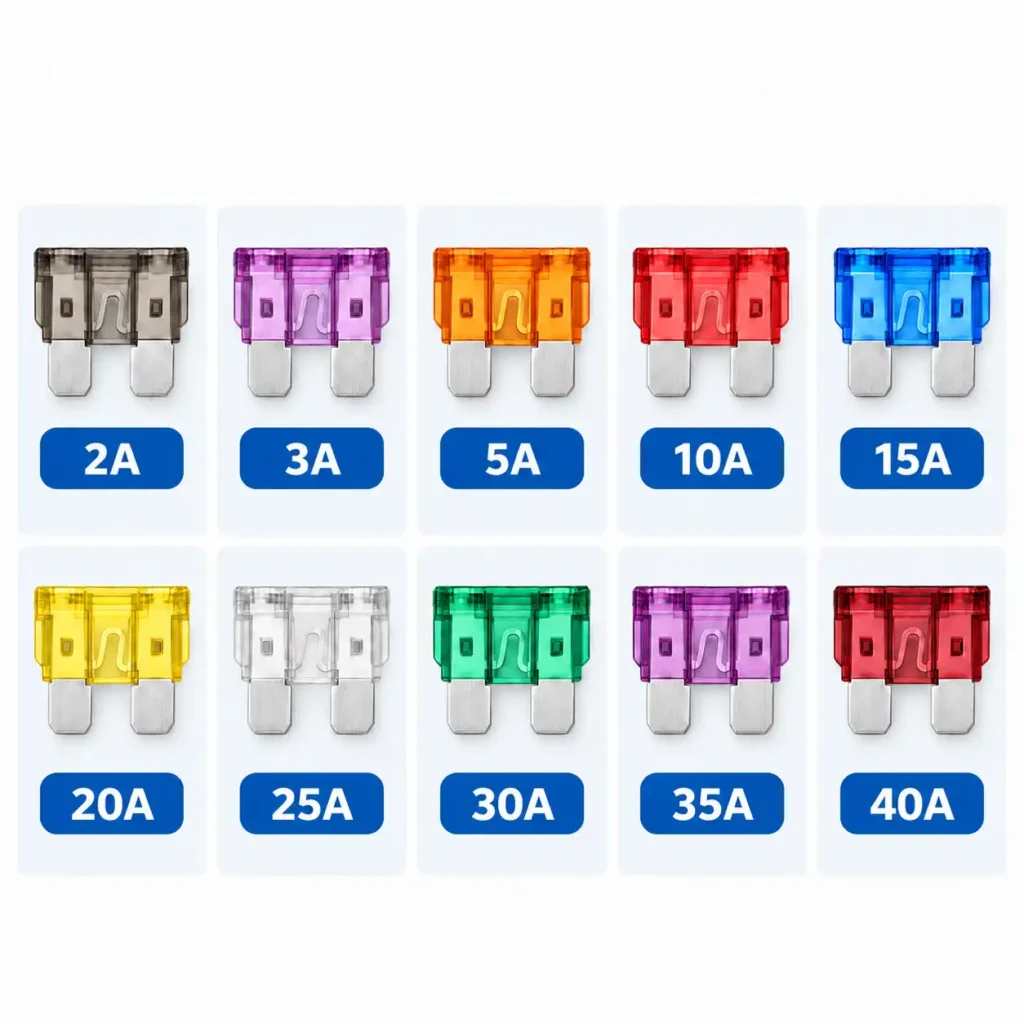

The CZY-FS05 Standard Blade Fuse is available in multiple current ratings from 1A to 50A.
The CZY-FS05 uses a PC Plastic (Polycarbonate) body with a zinc alloy fuse element.
| Component | Material |
|---|---|
| Fuse Body | PC Plastic (Polycarbonate) |
| Meltable Element | Zinc Alloy |

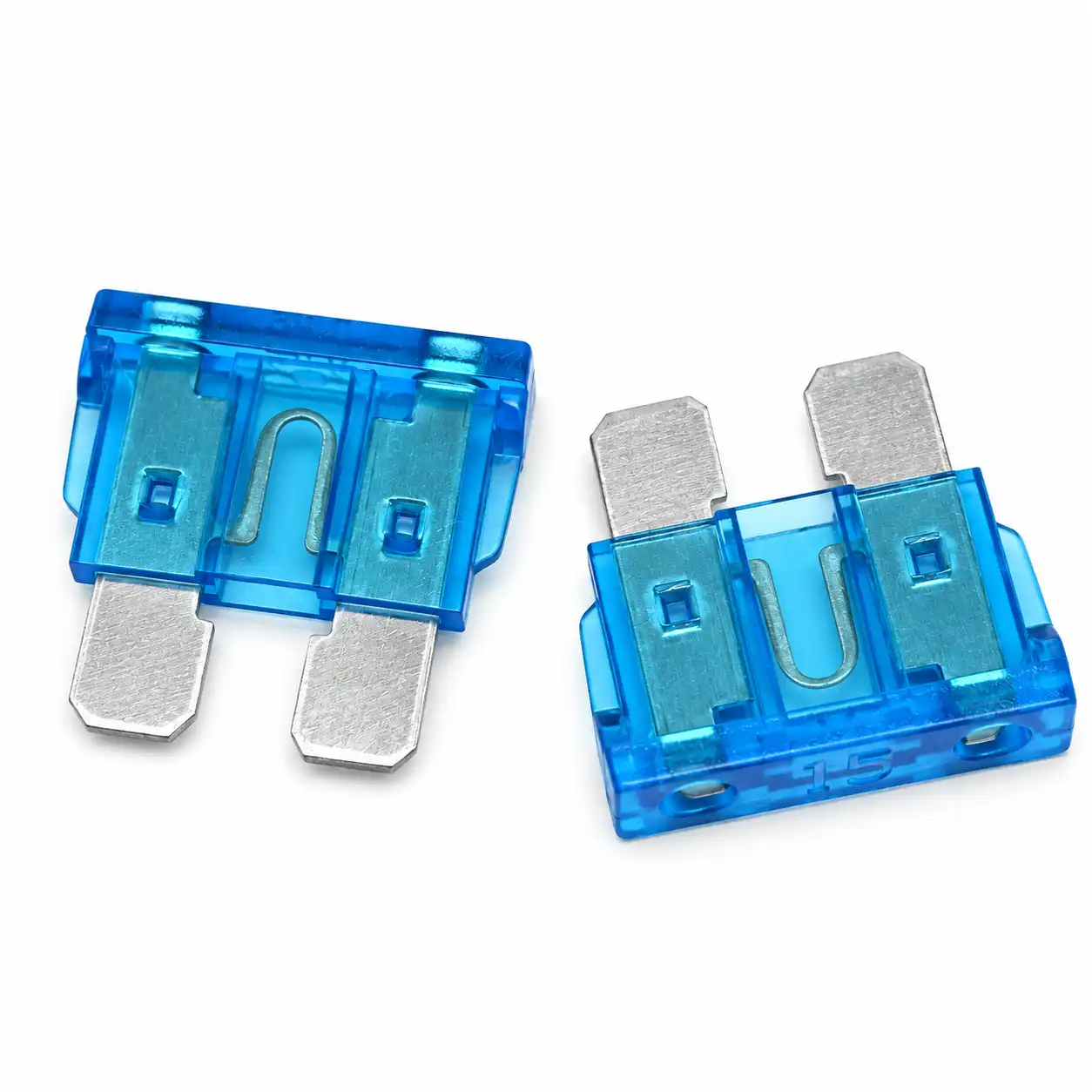

The fuse body is marked with the rated current for easy identification.
| Item | Specification |
|---|---|
| Product Type | Standard Blade Fuse |
| Model | CZY-FS05 |
| Alternative Name | ATC Fuse |
| Body Material | PC Plastic (Polycarbonate) |
| Fuse Element Material | Zinc Alloy |
| Operating Voltage | 32V DC |
| Current Range | 1A-50A |
| Standard | QC/T420-2004 |
| Application | Automotive DC Circuit Protection |
The CZY-FS05 Standard Blade Fuse features a standard automotive fuse structure.
| Dimension | Value |
|---|---|
| Width | 19 ±0.2 mm |
| Height | 12 ±0.2 mm |
| Thickness | 5.0 ±0.2 mm |
| Terminal Thickness | 0.64 ±0.02 mm |
The CZY-FS05 Standard Blade Fuse is commonly used for:
Automotive blade fuses are available in different formats, including Micro, Mini, Standard and Maxi blade fuses.
Always confirm the correct fuse type before installation or replacement.
The replacement fuse should match the original circuit requirements.
Selecting the correct amp rating helps maintain proper circuit protection.
Make sure the fuse voltage rating matches the electrical system requirements.
The CZY-FS05 Standard Blade Fuse is designed for automotive applications below 32V.
Cozy Electronics provides flexible packaging solutions for Standard Blade Fuses to meet different customer requirements.
The standard packaging method is plastic bag packaging, suitable for bulk orders, warehouse storage and regular distribution.
Customized packaging options are also available, including:
| Packaging Type | Description |
|---|---|
| Plastic Bag Packaging | Standard bulk packaging for shipment and large quantity orders |
| Box Packaging | Suitable for organized storage and retail distribution |
| Card Packaging | Different fuse specifications can be combined into one package for retail sales |
Customers can select suitable packaging solutions according to product assortment, sales channels and market requirements.
Cozy Electronics supports customized solutions for automotive fuse applications.
Customization options include:
A Standard Blade Fuse is a common automotive fuse format designed for DC circuit protection applications.
Yes. Standard blade fuses are commonly known as ATC fuses in automotive applications.
The CZY-FS05 Standard Blade Fuse is available from 1A to 50A.
The fuse body uses PC Plastic (Polycarbonate), and the meltable element uses zinc alloy.
Yes. Cozy Electronics provides plastic bag, box and card packaging options according to customer requirements.
